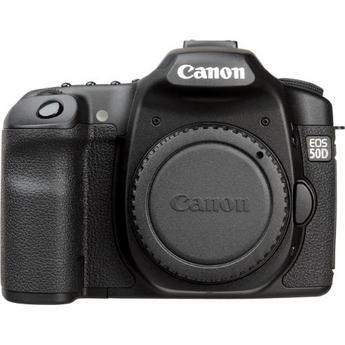

Canon 50D 15.1 MegaPixel Professional Infrared-Enabled Camera

Model: XNiteCanon50DB - UV+Visible+IR

Model: XNiteCanon50DDIRB - High-Red (590nm or 665nm),  IR-Only ( 715nm or 830nm)

Model: XNiteCanon50DUV - UV-Only

Model: XNiteCanon50DHR - High Resolution Visible Light Camera



The Canon 50D is a professional digital SLR camera.  Because of the nature of the IR enabling modification, we do not recommend this camera to anyone who does not fully understand the implications of the modification.

We can modify this camera to be IR+Visible+UV, High-Red, IR-Only, High Resolution (HR) and UV-Only.

bulletIR+Visible+UV: Camera seee everything the sensor is cable of seeing.  Camera will see some UV, the entire visible range and infrared from 715nm to 1200nm.
bulletHigh-Red

665nm: Camera will see from 665nm to 1200nm.  Red channel will see visible red and infrared.  Blue and green channels will only see infrared.

590nm: Camera will see from 590nm to 1200nm.  Red channel will see visible red and infrared.  Green channel will see come visible green and infrared.  Blue channel will only see infrared.

bulletIR-Only

715nm:  All channels  only see infrared.  The red channel is the most open to the IR and contains somewhat different information than the blue and green channels allowing for some creative color effects such as red-blue channel swapping to get deep blue skies.  A 715nm converted camera sees about the same amount of light as a stock camera so apertures and shutter are similar to a stock camera.  715nm is similar to a Hoya RM72 or Wratten 89B.

830nm:  All channels only see infrared.  Camera loses about 2 stops of exposure.  Once you equalize color levels, picture will be almost completely black and white.  The infrared effect is more intense at 830nm - skies are darker, clouds whiter and you see further through smoke and haze.

bulletUV Only:: Camera will only see UV light.  We recommend focusing using the Live View feature.  A lens such as the Jenoptik 60mm APO lens works well with this conversion.
bulletHR (High Resolution/ Hot Rod).  An HR camera has the Anti-Aliasing (Blur) filter removed and replaced with a thicker IR Cut Filter to keep the same focal plane.  A Visible HR camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.



  UV+IR+Visible IR-Only
Model XNiteCanon50D XNiteCanon50DIR
Camera can take normal visible pictures Yes with CC1 filter No
Camera can take IR pictures Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures No Yes
Camera autoexposure will work with IR pictures No Yes.  With 830nm, Exp Comp = +2.0
User can see through lens when taking IR pictures No Yes.  Filter is internal.

The Canon 50D has a nice feature called Live View with the ability to switch the Auto Focus (AF) mode from the normal AF sensor in the base of the camera to an AF mode using the image sensor itself - similar to the way a camcorder or point and shoot camera works.  This is particularly interesting on these modified cameras because it means that you can put a UV or IR filter that blocks visible light from the camera and still use the camera to AF.  You can also use the Live  View feature to manually focus when using filters that block visible light.

Please note that the anti-dust system is disabled on our conversions.  Live View will work correctly.

Modification will void your warranty.

We can modify your Canon 50D for UV+VIS+IR, High Red 590nm, High Red 665nm, IR-Only 715nm, IR-Only 830 or HR  for a $450 fee + return shipping & handling ($20 for UPS ground insured within continental USA)..

We can modify your Canon 50D for UV-Only for an $800 fee + S&H.




Specifications
Type
Type
Digital, single-lens reflex, AF/AE camera with built-in flash
Recording Media
CF Card Type I and II, UDMA-compliant CF cards, via external media (USB v.2.0 hard drive, via optional Wireless File Transmitter WFT-E3A)
Image Sensor Size
22.3mm x 14.9mm
Compatible Lenses
Canon EF lenses (including EF-S lenses) (35mm-equivalent focal length is approx. 1.6x the lens focal length)
Lens Mount
Canon EF mount
Image Sensor
Type
High-sensitivity, high-resolution, large single-plate CMOS sensor
Pixels
Effective pixels: Approx. 15.10 megapixels
Total Pixels
Total pixels: Approx. 15.50 megapixels
Aspect Ratio
3:2 (Horizontal: Vertical)
Color Filter System
RGB primary color filters
Low-pass Filter
Fixed position in front of the CMOS sensor
Dust Deletion feature
(1) Automatic sensor cleaning
(2) Manual cleaning of sensor
(3) Dust Delete Data appended to the captured image
Recording System
Recording Format
Design rule for Camera File System 2.0
Image Type
JPEG, RAW (14-bit, Canon original), sRAW, RAW+JPEG
File Size
(1) Large/Fine: Approx. 5.0MB (4752 x 3168 pixels)
(2) Large/Nomal: Approx. 2.5MB (4752 x 3168 pixels)
(3) Medium/Fine: Approx. 3.0MB (3456 x 2304 pixels)
(4) Medium/Normal: Approx. 1.6MB (3456 x 2304 pixels)
(5) Small/Fine: Approx. 1.7MB (2352 x 1568 pixels)
(6) Small/Normal: Approx. 0.9MB (2352 x 1568 pixels)
(7) RAW: Approx. 20.2MB (4752 x 3168 pixels)
(8) RAW+Large/Fine: Approx. 20.2+5.0MB (4752 x 3168 pixels)
(9) sRAW 1: Approx. 12.6MB (3267 x 2178 pixels)
(10) sRAW 1+Large/Fine: Approx. 12.6+5.0MB (3267 x 2178 pixels)
(11) sRAW 2: Approx. 9.2MB (2376 x 1584 pixels)
(12) sRAW 2+Large/Fine: Approx. 9.2+5.0MB (2376 x 1584 pixels)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.
Recording Functions
With the WFT-E3A attached, image recording to the CF card and to the USB external media connected to the WFT-E3A will be possible as follows:
(1) Standard
(2) Automatic switching of recording media
(3) Separate recordings according to image-recording quality
(4) Recording images having the same size
Backup Recording
Enabled with WFT-E3A attached
File Numbering
Consecutive numbering, auto reset, manual reset. Possible to create new folders and select folders in the CF card
RAW + JPEG Simultaneous Recording
Provided (sRAW+JPEG also possible)
Color Space
sRGB, Adobe RGB
Picture Style
Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3
Image Processing
Type
Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, Custom, Color Temperature setting
Auto White Balance
Auto white balance with the image sensor
Color Temperature Compensation
White balance correction: 9 stops in full-stop increments
White balance bracketing: 3 stops in full-stop increments
Blue/amber direction or magenta/green direction possible
Color Temperature Information Transmission
Provided
Viewfinder
Type
Eye-level pentaprism
Coverage
Vertical/Horizontal approx. 95%
Magnification
Approx. 0.95x (-1m-1 with 50mm lens at infinity)
Eyepoint
Approx. 22mm (from eyepiece lens center)
Built-in Dioptric Adjustment
-3.0 to +1.0m-1 (diopter)
Focusing Screen
Interchangeable (Ef-D: Grid lines, Ef-S {point of Focus), Ef-A standard focusing screen provided
Mirror
Quick-return half mirror (transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4L IS USM or shorter lenses)
Viewfinder Information
AF information (AF points, focus confirmation light), Exposure information (shutter speed, aperture, ISO speed, AE lock, exposure level, spot metering circle), Flash information (flash ready, flash exposure compensation, High-speed sync, FE lock, Red-eye reduction light), Image information (Highlight tone priority, monochrome shooting, maximum burst, white balance correction, CF card information)
Depth-of-Field Preview
Enabled with depth-of-field preview button
Autofocus
Type
TTL-CT-SIR AF-dedicated CMOS sensor
AF Points
9 (Cross-type)
Metering Range
EV 0.5-18 (at 73F/23C, ISO 100)
Focusing Modes
Auto, One-Shot AF, Predictive AI Servo AF, AI Focus AF, Manual focusing (MF)
AF Point Selection
Automatic selection, manual selection
Selected AF Point Display
Superimposed in viewfinder and indicated on LCD panel
AF-assist Beam
Small series of flashes fired by built-in flash
Effective range: Approx. 13.1 ft./4.0m at center, approx. 11.5 ft./3.5m at periphery
Exposure Control
Metering Modes
35-zone TTL full-aperture metering
bulletEvaluative metering (linkable to any AF point)
bulletPartial metering (approx. 9% of viewfinder at center)
bulletSpot metering (approx. 3.8% of viewfinder at center)
bulletCenter-weighted average metering

Metering Range
EV 1-20 (at 73F/23C with EF50mm f/1.4 USM lens, ISO 100)
Exposure Control
Program AE (Shiftable), Shutter-priority AE, Aperture-priority AE, Depth-of-field AE, Creative Auto, Full auto, Programmed image control modes (portrait, landscape, close-up, sports, night portrait, flash off), Manual exposure, E-TTL II autoflash program AE
ISO Speed (Recommended Exposure Index)
Basic Zone modes: ISO 100-1600 set automatically
Creative Zone modes: ISO 100-3200 (in 1/3-stop increments), Auto, or ISO speed can be expanded to ISO 6400 or ISO 12800
Extension settable (with C.Fn.I-3-1): ISO 12800
High Tone Priority settable: ISO 200-1600
Exposure Compensation
Manual: 3 stops in 1/3- or 1/2-stop increments (can be combined with AEB)
AE Lock
Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
Manual: By AE lock button
Shutter
Type
Vertical-travel, mechanical, Electronically-controlled, focal-plane shutter
Shutter Speeds
1/8000 to 1/60 sec., X-sync at 1/250 sec.
1/8000 to 30 sec., bulb (Total shutter speed range.
Available range varies by shooting mode)
Shutter Release
Soft-touch electromagnetic release
Self-timer
10-sec. or 2-sec. delay
Remote Control
Remote control with N3-type terminal
Built-in Flash
Type
Retractable, auto pop-up flash
Flash Metering
E-TTL II autoflash
Guide Number
13/43 (ISO 100, in meters/feet)
Recycling Time
Approx. 3 sec.
Flash-ready Indicator
Flash-ready icon lights in viewfinder
Flash Coverage
17mm lens angle of view
FE Lock
Provided
Flash Exposure Compensation
Up to 2 stops in 1/3- or 1/2-stop increments
External Speedlite
Zooming to Match Focal Length
Provided
Compatible Flash
EX-series Speedlites
Flash Metering
E-TTL II autoflash
Flash Exposure Compensation
2 stops in 1/3- or 1/2-stop increments
FE Lock
Provided
External Flash Settings
Flash function settings, Flash C.Fn settings
Drive System
Drive Modes
Single, High-speed continuous, Low-speed continuous, and Self-timer (10 sec. or 2 sec. delay)
Continuous Shooting Speed
High-speed: Max. 6.3 shots/sec.
Low-speed: Max. 3 shots/sec.
Maximum Burst
JPEG (Large/Fine): approx. 60 (CF)/approx. 90 (UDMA CF)
RAW: approx. 16
RAW+JPEG (Large/Fine): approx. 11
Based on Canon's testing standards with a 2GB CF card, high-speed continuous shooting, ISO 100 and Standard Picture Style
Varies depending on the subject, CF card brand, image-recording quality, ISO speed, drive mode, Picture Style, etc.
Live View Functions
Shooting Modes
(1) Live View shooting
(2) Remote Live View shooting (with a personal computer installed with EOS Utility)
Focusing
Manual focus
Autofocus (Live View image interrupted for AF): Quick mode, Live mode, Live Face Detection mode
Metering Modes
Evaluative metering with the image sensor
Metering Range
EV 0-20 (at 73F/23C with EF 50mm f/1.4 USM lens, ISO 100)
Magnified View
By 5x or 10x at AF point
Grid Display
Provided
Exposure Simulation
Provided
Silent Shooting
Provided (Mode 1 and 2)
LCD Monitor
Type
TFT color, liquid-crystal monitor
Monitor Size
3.0 in.
Dots
Approx. 920,000 (VGA)
Coverage
Approx. 100% (viewing angle: approx. 160)
Brightness Adjustment
7 levels provided
Interface Languages
25
Image Playback
Display Format
Single image, Single image + Image-recording quality/shooting information, histogram, 4- or 9-image index, magnified view (approx. 1.5x-10x), rotated image (auto/manual), image jump (by 10/100 images, index screen, by shooting date, by folder), slide show (all images/selected by date/folder)
Highlight Warning
Provided (Overexposed highlights blink)
Image Protection and Erase
Protect
Single images can be erase-protected or not
Erase
Single image, check-marked images or all images in the CF card can be erased (except protected images)
Direct Printing
Compatible Printers
PictBridge-compatible printers
Printable Images
JPEG images compliant to Design rule for Camera File System (DPOF printing possible) and RAW/sRAW images captured with the EOS 50D
Easy Print feature
Provided
DPOF: Digital Print Order Format
DPOF
Version 1.1 compatible
Direct Image Transfer
Compatible Images
JPEG and RAW images
Only JPEG images can be transferred as wallpaper on the personal computer screen
Customization
Custom Functions
Total 25
Camera User Settings
Register under Mode Dial's C1 and C2 positions
My Menu Registration
Provided
Interface
USB Terminal
For personal computer communication and direct printing (USB 2.0 Hi-Speed)
Video Out Terminal
(1) Video OUT terminal: NTSC/PAL selectable
(2) HDMI mini OUT terminal
Extension System Terminal
For connection to WFT-E3A
Power Source
Battery
One Battery Pack BP-511A
AC power can be supplied via optional AC Adapter Kit ACK-E2 (with optional Battery Grip BG-E2N or BG-E2 attached, AA-size batteries can be used)
Number of Shots
Number of shots (approx.)
Temperature Shooting Conditions
No Flash 50% Flash Use
Normal Shooting 73F/23C 800 640
32F/0C 640 540
Live View Shooting 73F/23C 180 170
32F/0C 140 130

Battery Check
Auto
Power Saving
Provided. Power turns off after 1, 2, 4, 8, 15 or 30 min.
Date/Time Battery
One CR2016 lithium-ion battery
Start-up Time
Approx. 0.1 sec. (Based on CIPA testing standards)
Dimensions and Weight
Dimensions (WxHxD)
Approx. 5.7 x 4.2 x 2.9 in./145.5 x 107.8 x 73.5mm
Weight
Approx. 25.7 oz./730g (body only)
Operating Environment
Working Temperature Range
32-104F/0-40C
Working Humidity Range
85% or less
Note: All the specifications above are based on Canon's testing standards.
The camera's specifications and exterior are subject to change without notice.
