This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.




DISCONTINUED.  This camera has been replaced by the SX50 available here.

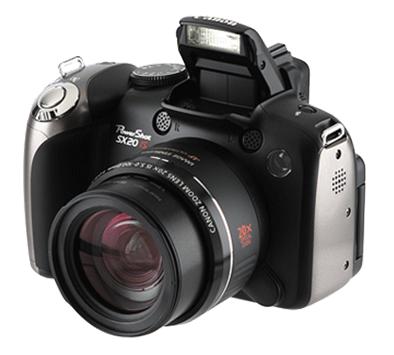

Modified Canon PowerShot SX20-IS 12.1 MegaPixel Camera

Models:

XNiteCanonSX20     UV+Visible+IR

XNiteCanonSX20IR  IR-Only





Our modified Canon PowerShot SX20-IS can see from about 340nm to 1100nm.

The Canon SX20 does not have a very good filter ring lens mount.  For the UV+Visible+IR cameras, e add a stepping metal stepping ring adapter to the lens so that you can mount 58mm filters.  Because of this, the stock lens cover does not fit.  We include a new 58mm lens cap.

The UV+Visible+IR camera uses 58mm filters which are available here.  Note, you should use the XNiteCC1 filter to block infrared light when you want to take a normal picture.  For infrared pictures, you have many options.  If you are just starting, we recommend at least one high cut filter (like a 1000nm or XDP) and one low cut filter (like a 715nm) because they have very different looks.

Because the camera uses an Electonic Viewfinder (EVF), all the focusing is done through the image sensor and you will see the UV, visible or infrared image before you take the picture.

We can convert your PowerShot SX20-IS for $275 for UV+IR+Visible and $375 for IR-Only + return S&H ($20 UPS ground insured domestic USA).  Turn around is usually 1 or 2 days from receipt.

This camera uses 58mm Filters available Here.  For normal photographs, you should order an XNiteCC1 filter.  For UV photographs, you can use our XNite330 or XNiteUVR.  We recommend stacking our XNiteBP1 filter to block the small infrared transmission bump that all UV filters have.



Specifications
Type of Camera
Type of Camera
Compact digital still camera with built-in flash, 20x Optical/4x Digital/80x Combined Zoom with Optical Image Stabilizer System
Image Capture Device
Type
12.1 Megapixel, 1/2.3-inch type Charge Coupled Device (CCD)
Total Pixels
Approx. 12.4 Megapixels
Effective Pixels
Approx. 12.1 Megapixels
Lens
Focal Length
5.0 (W) - 100 (T) mm f/2.8-5.7 (35mm equivalent: 28-560mm)
Digital Zoom
4x
Focusing Range
Normal: 1.6 ft./50cm-infinity (W), 3.3 ft./1m-infinity (T)
Macro: 3.9 in.-1.6 ft./10-50cm (W)
Super macro: 0-3.9 in./0-10cm (W)
Autofocus System
TTL Autofocus
Viewfinder & Monitor
Viewfinder
TFT color
LCD Monitor
2.5-inch TFT color Vari-Angle LCD with wide viewing angle
LCD Pixels
Approx. 230,000 pixels
LCD Coverage
100%
Aperture and Shutter
Maximum Aperture
f/2.8 (W) - f/5.7 (T)
Shutter Speed
15-1/3,200 sec. (settable in Tv and M)
Exposure Control
ISO Sensitivity
Auto*, ISO 80/100/200/400/800/1600 equivalent
(Standard output sensitivity. Recommended exposure index)
*Camera automatically sets the optical ISO speed according to shooting mode and subject brightness. The ISO speed also varies according to subject movement and camera shake when the shooting mode is set to Auto.
Light Metering Method
Evaluative*, Center-weighted average, Spot**
*Facial brightness is also evaluated in Face Detect.
** Metering frame is fixed to the center/linked to AF frame
Exposure Control Method
Program AE, i-Contrast, Manual; AE Lock, Program Shift, Safety Shift, Auto ISO Shift
Exposure Compensation
+/-2 stops in 1/3-stop increments
White Balance
White Balance Control
Auto*, Preset (Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash), Custom
* The color of faces is evaluated in Face Detect.
Flash
Built-in Flash
Auto, Auto w/ Red-eye Reduction, Flash On, Flash On w/ Red-eye Reduction, Flash Off; FE lock, Safety FE, Slow Synchro
Flash Range
1.6-22 ft./50cm-6.8m (W), 3.3-12 ft./1.0-3.7m (T) (when sensitivity is set to ISO Auto)
Recycling Time
7 sec. or less (battery voltage=6.0V)
Flash Exposure Compensation
+/-2 stops in 1/3-stop increments
Shooting Specifications
Shooting Modes
Auto, P, Av, Tv, M, C, Portrait, Landscape, Sports, Special Scene (Foliage, Snow, Beach, Sunset, Fireworks, Aquarium, Night Scene, Indoor, ISO 3200, Color Accent, Color Swap), Super Macro, Night Snapshot, Stitch Assist, Movie
Photo Effects
My Colors Off, Vivid, Vivid Blue, Vivid Green, Vivid Red, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Custom
Self-Timer
Activates shutter after an approx. 2-sec./10-sec. delay, Face Detection Self-timer, Custom
Wireless Control
Not available
Continuous Shooting
Normal: approx. 1.0 fps; AF: approx. 0.7 fps; LV: approx. 0.7 fps (Large/Fine)
Image Storage
Storage Media
SD/SDHC Memory Card, MultiMediaCard, MMCplus Card, HC MMCplus Card
File Format
Design rule for camera file system, DPOF Version 1.1
Image Compression
Normal, Fine
JPEG Compression Mode
Still Image: Exif 2.2 (JPEG)
Movie: MOV (Image: H.264; Audio: Linear PCM (Monaural/Stereo))
Number of Recording Pixels
Still Image: 4,000 x 3,000 (Large), 3,264 x 2,448 (Medium 1), 2,592 x 1,944 (Medium 2), 1,600 x 1,200 (Medium 3), 640 x 480 (Small), 3,840 x 2,160 (Widescreen) Movie: 1,280 x 720 (HD, 30 fps available up to 4GB or 29 minutes, 59 sec.), 640 x 480 (30 fps), 320 x 240 (30 fps) available up to 4GB or 60 minutes
Number of Recordable Images
  Large (L) Medium 1 (M1) Medium 2 (M2) Medium 3 (M3)
F N F N F N F N
File Size (KB) 3,084 1,474 2,060 980 1,395 695 558 278
2GB 626 1,280 930 1,920 1,365 2,672 3,235 6,146
8GB 2,505 5,116 3,721 7,675 5,457 10,679 12,927 24,562

  Small (S) Widescreen (W)
F N F N
File Size (KB) 150 84 2,132 1,109
2GB 10,245 15,368 903 1,862
8GB 40,937 61,406 3,611 7,442
Time of Recordable Movies
  High Definition Standard Definition
1,280 x 720 640 x 480 320 x 240
30 fps 30 fps 30 fps
Movie size (KB/sec.) 3,041 1,402 480
2GB 10 min. 33 sec. 22 min. 45 sec. 1 hr. 04 min. 01 sec.
8GB 42 min. 11 sec. 1 hr. 30 min. 57 sec. 4 hr. 15 min. 51 sec.
Note: N=Normal F=Fine
Storage Capacity varies depending on camera settings. This data is estimated from Canon's standard shooting conditions. Figures for Movie Mode represent total capacity of the particular media.
Playback Specifications
Playback Modes File
Still Image: Single, Magnification (approx. 2x-10x), Jump, Auto Rotate, Rotate, Resume, My Category, Transition Effects, Histogram, Index (4-130 thumbnails), Over Exposure Warning, Slide Show, Red-eye Correction, Trimming, Resize, Image Inspection Tool, i-Contrast;
Movie: Normal Playback, Special Playback, Editing, Auto Rotate, Resume
Erasing Specifications
Erase Modes
Still Image: single image, all images
Movie: part of movie, all of movie
Interfaces
Computer Interface
USB 2.0 Hi-Speed (mini-B jack)
Video Out
NTSC/PAL
Audio Out
Stereo
Other
Memory card slot; direct connection to Canon and SELPHY Compact Photo Printers, PIXMA Photo Printers and PictBridge-compatible printers via camera's USB 2.0 Hi-Speed cable
Power Supply
Power Source
1. AA-size Alkaline Battery (x4)
2. Rechargeable AA-size NB-3AH Battery (x4)
3. Compact Power Adapter CA-PS700 (optional)
Shooting Capacity
Still Image: approx. 340 shots (AA-size Alkaline Battery), approx. 600 shots (AA-size NB-3AH Battery)*
Playback Time
Approx. 720 min. (AA-size Alkaline Battery), approx. 840 min. (AA-size NB-3AH Battery)
*LCD screen on. The above figures comply with CIPA testing standards and apply when fully-charged batteries are used.
Physical Specifications
Operating Temperature
32-104?F/0-40?C
Operating Humidity
10-90%
Dimensions (WxHxD)
4.88 x 3.48 x 3.42 in./124.0 x 88.3 x 86.9mm
Weight
Approx. 19.8 oz./560g (camera body only)
Note: 26 display languages provided (English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified/Traditional Chinese, Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Romanian, Ukrainian, Farsi)
