This model has been discontinued and replaced by the Lumix LX5

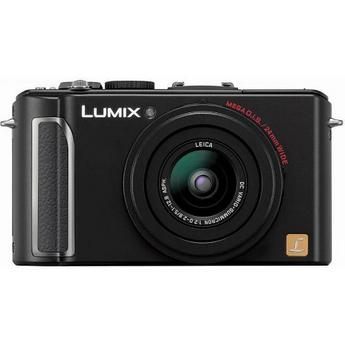

Panasonic LX3: 10.1 MegaPixel Low-Light Low-Cost IR Enabled Camera

Model: XNiteLX3   - UV+Visible+IR

Model: XNiteLX3IR   - IR Only





We can modify the Lumix LX3 for either UV-VIS-IR or IR-Only 715nm.  If you wish to add filters to the camera, we can include an adapater that mounts on the camera that allows you to add 52mm filters.  The adapter is removable.  If you would like the adapter, we can include one for an additional $35.00 which you can find on our camera order page near the LX3 cameras.

The 52mm filters for this camera are available Here.

Like our other IR enabled digital cameras, you should buy our CC1 color correcting filter (IR blocking filter) when using this camera for normal photography outdoors since our modified camera sees both infrared and visible light.

If you would like us to convert your camera, the cost is $175 for UV+Visiible+IR and $275 for IR-Only + return S&H ($20 for UPS ground insured with continental USA).  The adapter ring is not included, but is available for an additional charge.

Panasonic Lumix DMC-LX3 Specifications


Sensor 1/1.63" sensor
11.3 million total pixels CCD
10.1 million effective pixels
Primary Color Filter
Image stabilization Lens-shift
MEGA O.I.S. (Auto/Mode1/ Mode2)
Image sizes

4:3 Aspect Ratio:
3648x 2736 pixels
3072 x 2304 pixels
2560 x 1920 pixels
2048 x 1536 pixels
1600 x 1200 pixels
640 x 480 pixels

3:2 Aspect Ratio:
3776 x 2520 pixels
3168 x 2112 pixels
2656 x 1768 pixels
2112 x 1408pixels
2048 x 1360 pixels

16:9 Aspect Ratio:
3968 x 2232 pixels
3328 x 1872 pixels
2784 x 1568 pixels
2208 x 1248 pixels
1920 x 1080

Movie mode QuickTime Motion JPEG
4:3 Aspect Ratio: 640 x 480 pixels 30 fps or
320 x 240 pixels 30 fps/10 fps
16:9 Aspect Ratio: 848 x 480 pixels 30 fps
HD(16:9 Aspect Ratio): 1280x720 pixels 24fps"
Output formats JPEG ( Exif 2.21 standard)
RAW
Image processor Venus Engine IV
Lens 2.5x zoom
f=5.1-12.8mm (35mm Equiv.: 24-60mm)
F2.0 - F2.8
LEICA DC VARIO-SUMMICRON
8 elements in 6 groups
4 Aspherical Lenses / 4 Aspherical surfaces)
Focus modes Normal
Macro
Quick AF
Continuous AF
Manual Focus (Joystick)
One Shot AF
AF Area Select
AF Tracking
AF assist lamp Yes
Shooting modes Intelligent AUTO
P(Program) mode
A(AperturePriority) mode
S(Shutter Priority) mode
M(Manual) mode
Motion Picture
Custom1
Custom2
Scene mode
Scene modes Portrait
Soft Skin
Self-Portrait
Scenery
Sports
Night Portrait
Night Scenery
Food, Party
Candle Light
Baby1
Baby2
Pet
Sunset
High sensitivity
Starry Sky
Fireworks
Beach
Snow
Aerial photo
Hi-Speed Burst
Flash-Burst
Film Grain
Pin Hole
Metering Intelligent Multiple
Center Weighted
Spot
AE Bracketing +/- 0.3/0.5 EV
Exposure compen.

+/-2 EV
0.3 EV increments

Sensitivity

Auto
80
100
200
400
800
1600
3200
High Sensitivity Mode : Auto(1600 - 6400)

Shutter speed

P: 1-1/2000sec (Selectable minimum shutter speed)
A/S: 8-1/2000sec
M: 60-1/2000sec
Starry Sky Mode : 15, 30, 60sec.

Aperture values Wide: F2.0 - F8.0 Tele: F2.8 - F8
White balance Auto
Daylight
Cloudy
Shade
Flash
Halogen
Color Temperature
White Set 1
White Set 2
White Balance Adjustment
Drive modes

Single
Continuous

Burst speed 2.5 frames/sec Max. 8 images (Standard), Max 4 images (Fine), Max 3images (RAW)
High-speed Burst Mode: approx. 6 frames/sec (recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9)
Self-timer 10 sec. / 2 sec.
LCD monitor 3.0", 3:2 Polycrystalline TFT LCD Display
460K dots
Field of View : approx. 100%
AUTO Power LCD mode
Viewfinder Optional
Flash Auto
Auto/Red-eye Reduction
Forced On
Slow Sync./Red-eye Reduction
Forced Off
Flash Synchro 1st / 2nd
Flash output Adjustment (1/3EV step, -2 - +2 EV)
Hotshoe
FLash coverage 0.8 - 8.3m (Wide/Macro/ISO Auto), 0.3 - 5.9m (Tele/ISO Auto)
Connectivity

DC Input
AV Output (NTSC/PAL)
HD AV Output (Component)
USB2.0 High speed

Storage SD Memory Card
SDHC Memory Card
MultiMediaCard (Still image only)
Internal Memory (approx. 50 MB)
Power Li-ion Battery Pack (3.7V, 1150mAh)
Battery life: 380 pictures (CIPA standard)
AC Adaptor (Input: 110-240V AC) (Optional)
Dimensions 108.7 x 59.5 x 27.1 mm
Weight (with battery)
