Zigview S



Zigview S2 - Normal and IR+Visible Versions!















The Zigview-S2 display module rotates 300°
and flips up and down 180°.

The Zigview-S2 display screen can be separated using an accessory video transceiver cable.

Plus all of the Zigview SC-V100R's basic funtions!





bullet
Low Angle Position
Very useful when subject is in lower position than eye level
bullet
High Angle Position
Take photos over high obstacles and crowds
bullet
Cable Shutter Release
Take photos without photographer drawing attention
bullet
Interval Shutter Release (Intervalometer)
Precise and elaborate operation mode settings, it supports up to 999,999 interval shots / 0.5 sec
to 99 days time intervals.
bullet
Motion Detection Shutter Release
Detects variations on the viewfinder image to fire camera shutter. It can also divide screen image into nine sections and vary sensitivity in each section for a wide range of applications.
bullet
Detachable Sensor and Display Screen
Sensing module and display module can be separated using an accessory video transceiver cable.
This enables you to remotely monitor the viewfinder image from up to 40ft away and also fire the shutter remotely from the remote monitor.

bullet
Normal Visible and IR + Visible Versions
We have the normal Zigviews which see only visible light as well as specially modified versions that can see both Infrared and Visible light.









Seculine revolutionise DSLR handling with the NEW Zigview S2 Digital Angle Finder, with remote detachable 2½ inch screen, TV output, motion sensor and interval timer.

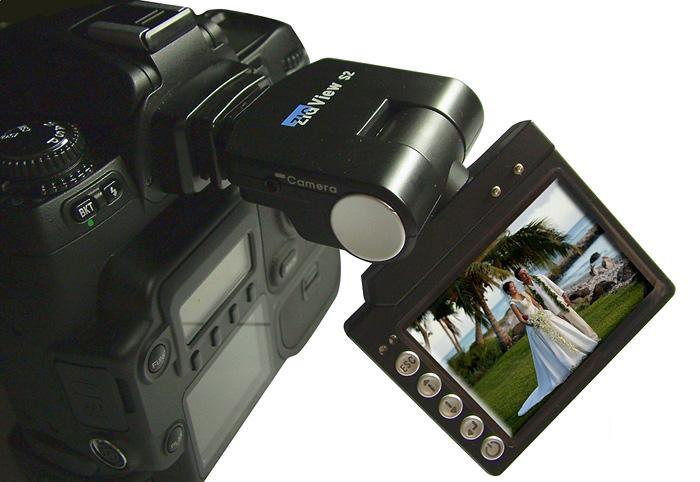

The NEW Zigview S2 attaches to your DSLR viewfinder and displays a live video feed from the viewfinder to its large 2.5 inch high resolution LCD, which can be moved to fully tilt and rotate for viewing at any angle.

The new unit has excellent low light properties and a high frame rate which displays a bright live image making it fantastic for low and high angle situations as well as being capable of acting as a waist level finder to improve communication with clients during portrait photography.
Images from the Zigview S2 can also be relayed live to a remote monitor using the TV output, or alternatively with the Remote Video accessory cables/extensions, the screen can be detached from the main unit to view the subject and fire the shutter from a remote location up to 10 meters away. This makes it ideal for use in bird hides, high level photography of properties or any situation where it would be beneficial for the photographer to be placed distance from the camera.
The Zigview S2 also incorporates the same 9 area TTL motion sensor and interval timer facilities from the Zigview R model making it a hugely versatile accessory which can help you to achieve new and exciting images in a whole range of new situations.
Eyepiece adapters and shutter cables are available to fit most DSLR cameras.











Zigview S2



The new Zigview S2 Digital Viewfinder has a highly sensitive, no lag, sharp 2.5 inch (230k pixel) LCD. It also features a NTSC/PAL Video Output jack so the image can also be viewed on any video monitor.

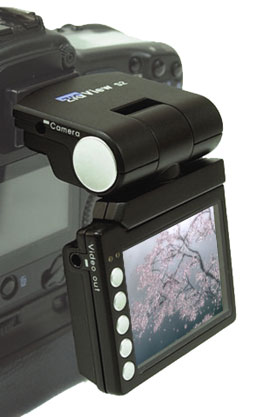

The display module rotates 300° and flips up and down 180° for easy viewing at any angle. The image can be flipped 180° to conform to the screen position.

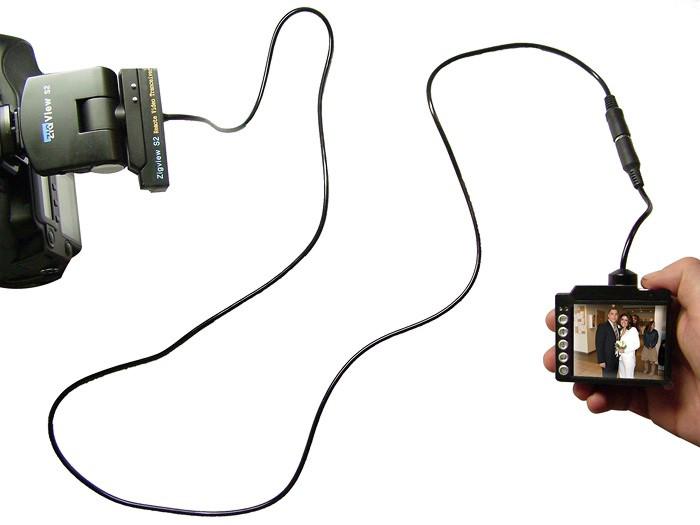

The Zigview S2 image sensing module and display module can be seperated using an accessory video transceiver cable (must be purchased seperately). This enables you to remotely monitor the viewfinder image from up to 35 ft away and also fire the shutter remotely from the remote monitor.



Zigview S2 has a programmable motion detectior sensor and intervalometer with the same parameters as the



Zigview S2 employs a single user changeable standard ENEL5 rechargeable battery. A shooter using the Zigview S2 can have several charged batteries on hand for long shoots.



There are three models of the Zigview S2: A, B & C. Each model has a different set of optics specifically designed for a group of camera (see chart for optimum camera-Zigview match). And, on each model Zigview S2 includes interchangeable eyepieces for specific camera models.

















Zigview S2 Press Release



The Zigview S2, which adds innovative features to the world’s first real-time digital angle viewfinders for most digital and film SLR cameras. The Zigview S2 revolutionizes SLR photography with its remote detachable 2.5 inch LCD screen, Video output, motion sensor, intervalometer, and more.



The new Zigview S2 attaches to your DSLR viewfinder and displays a live video feed from the viewfinder to its large 2.5 inch high resolution LCD screen. You can tilt and rotate the LCD for viewing at any angle, including from the front of the camera. This makes low-angle, high-angle, and now even self-portraits easier than ever.



In addition to the intervalometer and nine-zone TTL motion detection shutter release capabilities of the Zigview R, the new Zigview S2 utilizes higher resolution optics, and a highly sensitive CCD sensor with 270,000 pixels and a rapid refresh rate. Its very bright LCD finder can be viewed easily in daylight.



The Zigview S2 has NTSC/PAL video output so that the image can also be viewed on an external large TV screen or monitor. In addition, the Zigview S2’s built-in LCD monitor can be separated from the camera using an accessory video transceiver cable. This enables the photographer to view the image in the viewfinder and fire the shutter from a remote location up to 35 feet from the camera.



The Zigview S2 is particularly useful for low angle photography where you would struggle to see through the viewfinder especially with macro work, for high angle situations such as press work where it is impossible to see the subject when taking pictures over crowds, and for copy work, portrait photography, industrial, forensic, nature photography, and many other applications. Zigview makes it easy to see and shoot the subject without difficulty in these and many more situations.



There are three types of Zigview S2 models.  Please make sure to order the correct type for your camera.

Zigview S2 Models

Model
Canon
Nikon
Pentax
Minolta & Sony
Fuji
S2 A
Canon 300D
Canon 350D
Canon 400D
(Canon Digital Rebel Series)
Nikon D40X
Nikon D40
Nikon D50
Nikon D70
Nikon D80
Nikon D100



S2 B
Canon D30
Canon D60
Canon 10D
Canon 20D
Canon 30D
Canon 1D
Canon 1D Mark II
Canon 1D Mark II N
Nikon D1
Nikon D2H
Nikon D2X
Nikon D200
Pentax *istD
Pentax *istDS
Pentax *istDS2
Pentax *ist DL

Minolta 5D
Minolta 7D

Sony A100

Fuji S3 Pro
S2 C
Canon 1Ds Mark II
Canon 5D
Canon 1Ds
