Our 2-camera 5-Band systems use one of our Blue-Green-NIR 680-800nm cameras and one of our Green-Red-NIR 800-900nm cameras.  The cameras are tied together with a simultaneous shutter controller.  Our RSE software is included with all 5-band systems.  RSE will automatically align and register a pair of images to create a 5-layer data stack.  RSE can instantly display a variety of false color vegetation indexes and the user can choose which plant reflection and absorption channels they wish to use in any combination.  RSE can save an RGB image, false color vegetation index image, binary thresholding image, or a binary data file of the 5-layer data stack or any vegetation index for integration into further systems.

For applications where the system must be as light as possible, we can build systems from the Sony QX10, Canon ELPH 110 and Canon SX260 cameras.  Weight can be further saved if the user can provide 9 Volt and/or 5 Volt power for the shutter controller or dispensing with the shutter controller altogether and replacing it with a relay and/or 5 volt pulse.  Contact us for more information about how to integrate the cameras into your systems.


For applications such as fixed wing aircraft, the user may want to consider heavier more professional cameras such as the Canon 5D MK III or the Nikon D810.

We can build a wide variety of 5-band systems so if you are particular needs, we will see if we can accommodate you.

XNiteELPH110-5     5-Band 32-Megapixel Remote Sensing Camera System

XNiteSX260-5        5-Band 24-Megapixel Remote Sensing Camera System with GPS

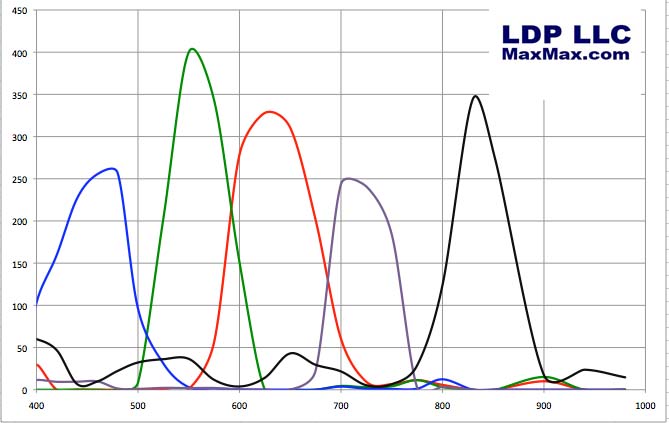

 RSE corrected band response.

 Bands

  • Red: 575nm to 680nm
  • Green 480nm to 575nm
  • Blue 400nm to 480nm
  • Infrared 680nm to 800nm
  • Infrared 800nm to 900nm

System Includes

  • 2 Modified Cameras
  • Camera Brackets and Assembly
  • Custom Camera Firmware
  • Shutter Controller with Batteries
  • Custom Post Processing Software - Remote Sensing Explorer (requires Windows 64-Bit OS)

 Weight - XNiteELPH110-5

Camera, Brackets and Camera Batteries  320 grams
Shutter Controller with No Batteries 80 grams
Shutter Controller with Batteries 160 grams
Complete System with Camera, Controller and Batteries  480 grams

XNiteELPH110-5 Dimensions

  • Closed 19.0 x 7.5 x 2.7 cm
  • Open 19.0 x 7.5 x 4.0 cm

Weight - XNiteSX260-5

Camera, Brackets and Camera Batteries  520 grams
Shutter Controller with No Batteries 80 grams
Shutter Controller with Batteries 160 grams
Complete System with Camera, Controller and Batteries  680 grams

XNiteSX260-5 Dimensions

  • Closed 18.0 x 8.0 x 4.0 cm
  • Open 18.0 x 8.0 x 7.0 cm

Shutter Controller Dimensions 8 x 5 x 4 cm

If you can provide your own 9V and 5V DC power to the shutter controller, you can reduce the total weight by 80 grams.  Power required while running is less than 20 mA.

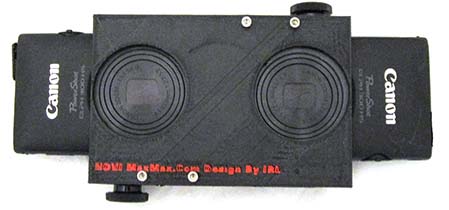

Top View

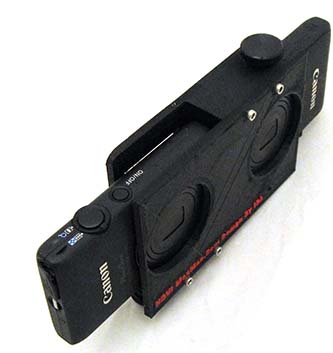

Orthogonal View

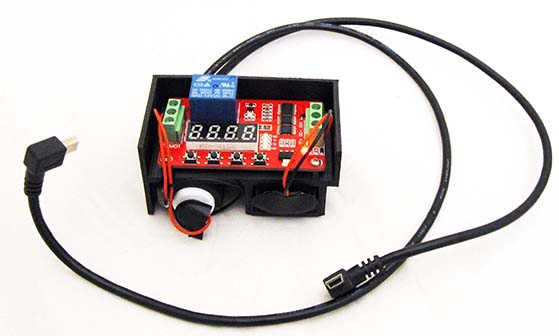

Shutter Controller

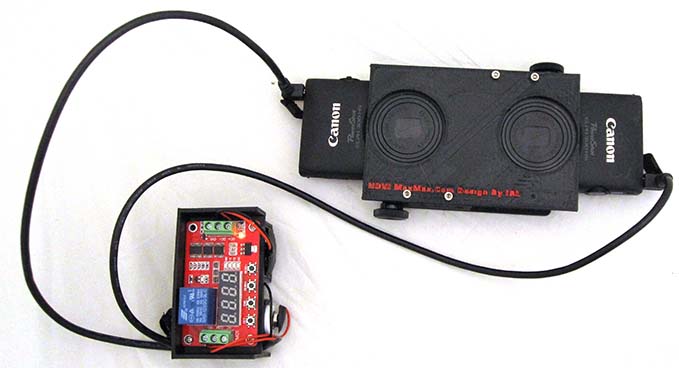

Complete Hardware
