Discontinued. This model has been replaced with the Canon
G12

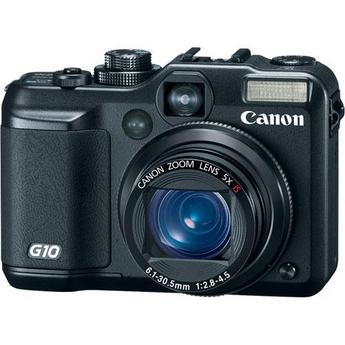

Modified Canon PowerShot G10 14.7 MegaPixel Camera
Models:
XNiteCanonG10 UV+Visible+IR
XNiteCanonG10IR IR-Only
Our modified Canon PowerShot G10 can see from about 340nm to 1100nm.
The camera uses 58mm filters which are available
here. We include the Canon Lens Hood for attaching the 58mm
filters. Note, you should use the XNiteCC1 filter to block infrared light
when you want to take a normal picture. For infrared pictures, you have
many options. If you are just starting, we recommend at least one high cut
filter (like a 1000nm or XDP) and one low cut filter (like a 715nm) because they
have very different looks.
Because the camera uses an Electonic Viewfinder (EVF), all the
focusing is done through the image sensor and you will see the UV, visible or
infrared image before you take the picture.
We can convert your PowerShot G10 for $275 for UV+IR+Visible and
$375 for IR-Only + return S&H ($20
UPS ground insured domestic USA). Turn around is usually 1 or 2 days from
receipt.
This camera uses 58mm Filters
available Here. For normal photographs, you should order an XNiteCC1
filter. For UV photographs, you can use our XNite330 or XNiteUVR. We
recommend stacking our XNiteBP1 filter to block the small infrared transmission
bump that all UV filters have.
Type of
Camera
|
Compact digital
still camera with built-in flash, 5x Optical/4x Digital/20x Combined
Zoom with Optical Image Stabilizer System
|
Type
|
14.7 Megapixel,
1/1.7-inch type Charge Coupled Device (CCD)
|
Total
Pixels
|
Approx. 15.0
Megapixels
|
Effective
Pixels
|
Approx. 14.7
Megapixels
|
Focal
Length
|
6.1-30.5mm
f/2.8-4.5 (35mm film equivalent: 28-140mm)
|
Digital
Zoom
|
4x
|
Focusing
Range
|
Normal: 1.6
ft./50cm-infinity
Macro: 0.39 in.-1.6 ft./1-50cm (W)
|
Autofocus
System
|
TTL Autofocus
|
Viewfinder
|
Real image optical
zoom viewfinder
|
LCD
Monitor
|
3.0-inch TFT color
LCD with wide viewing angle
|
LCD
Pixels
|
Approx. 461,000
pixels
|
LCD
Coverage
|
100%
|
Maximum
Aperture
|
f/2.8 (W) - f/4.5
(T)
|
Shutter
Speed
|
15-1/4000 sec.
(settable in Tv and M)
|
ISO
Sensitivity
|
Auto, High ISO
Auto, ISO 80/100/200/400/800/1600 equivalent (Standard output
sensitivity. Recommended exposure index)
|
Light
Metering Method
|
Evaluative*,
Center-weighted average, Spot**
* Control to incorporate facial brightness in Face Detection AF
** Metering frame is fixed to the center
|
Exposure
Control Method
|
Program AE, Shutter
Speed-Priority AE, Aperture-Priority AE, i-Contrast, Manual; AE
Lock, Safety Shift, Auto ISO Shift
|
Exposure
Compensation
|
+/-2 stops in
1/3-stop increments
|
White
Balance Control
|
Auto, Preset
(Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash,
Underwater), Custom1, Custom2
|
Built-in
Flash
|
Auto, Auto w/
Red-eye Reduction, Flash On, Flash On w/ Red-eye Reduction, Flash
Off; FE lock, Safety FE, Slow Synchro, Second-curtain synchro
|
Flash
Range
|
12 in.-15
ft./30cm-4.6m (W), 1.6-9.2 ft./50cm-2.8m (T) (when sensitivity is
set to ISO Auto)
|
Recycling
Time
|
10 sec. or less
(battery voltage=7.4V)
|
Flash
Exposure Compensation
|
+/-2 stops in
1/3-stop increments
|
 |
Shooting
Modes
|
Auto, P, Av, Tv, M,
C1, C2, Special Scene (Portrait, Landscape, Night Scene, Sports,
Foliage, Snow, Beach, Sunset, Fireworks, Aquarium, Underwater,
Indoor, ISO 3200, Kids & Pets, Night Snapshot, Color Accent,
Color Swap), Stitch Assist, Movie
|
Effects
|
My Colors
Vivid, Vivid Blue, Vivid Green, Vivid Red, Neutral, Sepia, Black
& White, Positive Film, Lighter Skin Tone, Darker Skin Tone,
Custom
|
Self-Timer
|
Activates shutter
after an approx. 2-sec./10-sec. delay, Face Self-Timer, Custom
|
Wireless
Control
|
N/A
|
Continuous
Shooting
|
Normal: approx. 1.3
fps; AF: approx. 0.7 fps; LV: approx. 0.7 fps (Large/Fine)
|
|
Storage
Media
|
SD/SDHC Memory
Card, MultiMediaCard, MMC Plus Card, HC MMC Plus Card
|
File
Format
|
Design rule for
camera file system, DPOF Version 1.1
|
Compression
|
Normal, Fine,
SuperFine
|
JPEG
Compression Mode
|
Still Image: Exif
2.2 (JPEG)
Movie: MOV (Image: H.264; Audio: Linear PCM (Monaural))
|
Number
of Recording Pixels
|
Still Image: 4,416
x 3,312 (Large), 3,456 x 2,592 (Medium 1), 2,592 x 1,944 (Medium 2),
1,600 x 1,200 (Medium 3), 640 x 480 (Small), 4,416 x 2,480
(Widescreen)
Movie: 640 x 480 (30 fps), 320 x 240 (30 fps) available up to 4GB or
60 minutes
|
|
| |
Large
(L) |
Medium
1 (M1) |
Medium
2 (M2) |
| SF |
F |
N |
SF |
F |
N |
SF |
F |
N |
| File
Size (KB) |
6,348 |
3,759 |
1,797 |
3,888 |
2,302 |
1,100 |
2,503 |
1,395 |
695 |
| 2GB |
306 |
516 |
1,059 |
499 |
841 |
1,707 |
767 |
1,365 |
2,672 |
| 8GB |
1,227 |
2,063 |
4,234 |
1,996 |
3,364 |
6,822 |
3,089 |
5,457 |
10,679 |
| |
Medium
3 (M3) |
Small
(S) |
Widescreen
(W) |
RAW |
| SF |
F |
N |
SF |
F |
N |
SF |
F |
N |
RAW |
+JPEG |
| File
Size (KB) |
1,002 |
558 |
278 |
249 |
150 |
84 |
4,753 |
2,814 |
1,345 |
18,793 |
22,552 |
| 2GB |
1,862 |
3,235 |
6,146 |
6,830 |
10,245 |
15,368 |
409 |
690 |
1,396 |
94 |
79 |
| 8GB |
7,442 |
12,927 |
24,562 |
27,291 |
40,937 |
61,406 |
1,637 |
2,759 |
5,581 |
378 |
318 |
|
| |
Standard,
Color Accent, Color Swap |
| 640
x 480 |
320
x 240 |
| 30
fps |
30
fps |
| Movie
Size (KB/sec.) |
1,316 |
394 |
| 2GB |
23 min.
49 sec. |
1 hr.
13 min. 10 sec. |
| 8GB |
1 hr.
35 min. 11 sec. |
4 hr.
52 min. 24 sec. |
Note: N=Normal F=Fine SF=SuperFine
Storage Capacity varies depending on camera settings. This data is
estimated from Canon's standard shooting conditions. Figures for
Movie Mode represent total capacity of the particular media. |
Playback
Modes File
|
Still Image:
Single, Magnification (approx. 2x-10x), Jump, Auto Rotate, Rotate,
Resume, My Colors, My Category, Transition Effects, Histogram,
Overexposure Warning, Index (9 thumbnails), Sound Memos, Slide Show,
Red-eye Correction, RAW playback, Trimming, Resize, Image Inspection
Tool, i-Contrast Movie: Normal Playback, Special Playback, Editing,
Auto Rotate, Resume
|
Erase
Modes
|
Still Image: single
image, select range, select by date, select by category, select by
folder, all images
Movie: part of movie, all of movie
|
Computer
Interface
|
USB 2.0 Hi-Speed
(mini-B jack)
|
Video
Out
|
NTSC/PAL
|
Audio
Out
|
Monaural
|
Other
|
SD Memory card
slot; direct connection to Canon CP and SELPHY Compact Photo
Printers, PIXMA Photo Printers and PictBridge-compatible printers
via camera's USB 2.0 Hi-Speed cable
|
Power
Source
|
1. Rechargeable
Lithium-ion Battery NB-7L
2. AC Adapter Kit ACK-DC50 (optional)
|
Shooting
Capacity
|
Still Image:
approx. 400 shots (NB-7L/LCD on)*, approx. 1,000 shots (NB-7L/LCD
off)
* LCD screen on. The above figures comply with CIPA testing
standards and apply when fully-charged batteries are used.
|
Playback
Time
|
Approx. 600 min.
(NB-7L)
|
Operating
Temperature
|
32-104?F/0-40?C
|
Operating
Humidity
|
10-90%
|
Dimensions
(WxHxD)
|
4.30 x 3.06 x 1.81
in./109.1 x 77.7 x 45.9mm
|
Weight
|
Approx. 12.3
oz./350g (camera body only)
|
 |
|
