Discontinued.  This model has been replaced by the Casio EX-FH25

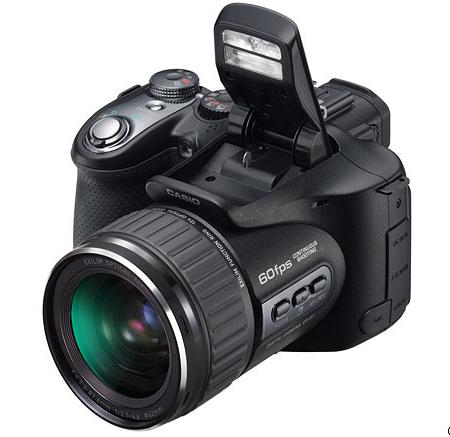

Casio Pro EX-F1: 6.0 MegaPixel High Speed camera

Model: XNiteEXF1    - UV+Visible+IR

The Casio Pro EX-F1 is an interesting camera in particular for its ability to shoot at 60 Frames Per Second (FPS).  User selectable, you can shoot up to 60 frames in 1 second or space the pictures over a longer period.  For example, you could shoot 60 frames over a 12 second period at 5 FPS (5x12=60).  You can also set the camera to pre-record before you press the shutter.  For instance, you can wait until the critical moment, press the shutter when the event occurs, and then go back into the camera to see pictures prior to you pressing the shutter.

The EX-F1 can take HD movies at 1920x1080 pixels at 60 fields per second.  At lower resolutions, you can increase the FPS to 300 fps (512 x 384), 600 fps (432 x 192) and up to 1200 fps (336 x 96 pixels)!

Our modified EX-F1 can see from approximately 350nm (UV) through visible and into the infrared up to 1200nm.





BEST SHOT
EXILIM Pro EX-F1
Number of Effective Pixels 6.00 million
Image Sensor 1/1.8-inch high-speed CMOS
Total Pixels : 6.6 million
File Format Still Images RAW (DNG*1), JPEG (Exif Version 2.2), DCF 1.0 standard, DPOF compliant
Movies MOV format, H.264/AVC, IMA-ADPCM (stereo)
Built-in Flash Memory To be advised
Recording Media SDHC Memory Card / SD Memory Card / MultiMediaCard / MultiMediaCardplus compatible
Number of Recorded Pixels Still Images RAW, 2816 x 2112, 2816 x 1872 (3:2), 2816 x 1586 (16:9), 2304 x 1728, 2048 x 1536, 1600 x 1200, 640 x 480
STD Movies 640 × 480 (30 fps)
HD Movies 1920 × 1080 (FHD HQ/FHD Normal, 60 fields per second), 1280 × 720 (HD LP, 30 fps)
Hi-Speed Movies 512 × 384 (300 fps), 432 × 192 (600 fps), 336 × 96 (1200 fps)
Recording Capacity
(still image is at maximum image size setting)
Still images
(JPEG)
Built-in Flash Memory Approx. 9 shots (Fine) / 17 shots (Normal) / 25 shots (Economy)
SD Memory Card 1GB*2 Approx. 277 shots (Fine) / 511 shots (Normal) / 743 shots (Economy)
Movies
(FHD/HS 1200 fps)
Recording Time Maximum Recording Capacity per File: 4GB*3
Built-in Flash Memory Approx. 18 seconds / Approx. 14 seconds
SD Memory Card 1GB*2 Approx. 9minutes 11 seconds / Approx. 7 minutes 18 seconds
Operating Speed Shutter Release Time Lag*4*5 Approx. 0.01 second
Shot to Shot Time*5*6 Approx. 0.8 second
Normal Speed Continuous Shutter*6 Maximum is 3 frames per second
High-speed Continuous Shutter Maximum is 60 frames per second
Flash Continuous Shutter Maximum is 7 frames per second (Up to 20 images)
Lens Construction 12 lenses in 9 groups, including aspherical lens
F-number F2.7 (W) to 4.6 (T)
Focal Length f=7.3 to 87.6mm
35mm film equivalent : Approx. 36 to 432mm
Zoom Optical Zoom 12X
Digital Zoom 4X (48X in combination with optical zoom)
Focusing Focus Type Contrast Detection Auto Focus
Focus Modes Auto Focus, Macro Mode, Infinity Mode, Manual Focus
AF Area Spot, Free or Tracking
AF Assist Lamp Yes
Focus Range*7 Auto Focus Approx. 40cm to ∞ (W)
Macro Approx. 5cm to 50cm (W)
Infinity Mode ∞ (W)
Manual Focus Approx. 5cm to ∞ (W)
Exposure Exposure Metering Multi-pattern, center weighted, spot by imaging element
Exposure Control Program AE, Aperture Priority AE, Shutter Speed Priority AE, Manual Exposure
Exposure Compensation -2EV to +2EV (in 1/3EV steps)
Shutter Type CMOS electronic shutter, mechanical shutter
Shutter Speed*8 Auto 1 to 1/2000 second
Aperture Priority AE 1 to 1/2000 second
Shutter Speed Priority AE 60 to 1/40000 second
Manual Exposure 60 to 1/40000 second
Aperture*9 Aperture Priority AE/ F2.7 (W) to F15*5 (W), auto switching
Manual Exposure F2.7 (W) to F7.5 (W)
White Balance Auto WB, Daylight, Overcast, Shade, Day white FL, Daylight FL, Tungsten, manual WB
Sensitivity (SOS/REI)*10 Still Images Auto, ISO100, ISO200, ISO400, ISO800, ISO1600
Movies Auto (Hi-Speed Movie when Manual Exposure mode: ISO100,ISO200,ISO400,ISO800,ISO1600)
Other Recording Functions Prerecord still images Maximum speed: 60 fps, Maximum recording capacity: 60 images
Slow Motion View 2 seconds by 30fps
Auto Bracketing AE, WB, Focus
BEST SHOT 26 scenes
YouTube™ Capture Mode Yes
Face Recognition Yes
Self-timer 10 seconds, 2 seconds, Triple Self-timer
Built-in Flash Flash Modes Auto, Flash Off, Flash On, Red Eye Reduction, External Flash
Flash Range*7 Approx. 0.5 to 10.4m (W), approx. 1.1 to 6.3m (T)
Finder Monitor Screen 2.8-inch wide TFT color LCD (Super Clear LCD), 230,160 dots (959 × 240)
Electronic View Finder 0.2-inch, Equal to 201,600 dots
Timekeeping Functions Date and Time Recorded with image data
On-image Time Stamp Function Yes
Auto Calendar To 2049
World Time 162 cities in 32 time zones, city name, date, time, summer time
Input/Output Terminals USB/AV port, HDMI™ Mini Connector (output)*11, hot shoe, external microphone jack, AC adaptor connection (DC-IN)
USB : Hi-Speed USB
Microphone stereo
Speaker Monaural
Power Requirements Rechargeable lithium ion battery (NP-100) x 1,
AC adaptor
Battery Life Number of Shots*12 Approx. 520 still images (CIPA Standards)
Continuous Playback Approx. 8 hr. (still images)
Dimensions (excluding projections) 127.7 (W) x 79.6 (H) x 130.1 (D)mm
Weight (excluding battery and accessories) Approx. 671g
Bundled Accessories Rechargeable lithium ion battery, lithium ion battery charger, AC power cord, USB cable, AV cable, strap, lens cap, lens hood, remote shutter release, CD-ROM
*1. DNG file format is one type of RAW image file, and it is recommended by Adobe Systems for use as a standard image file format.
*2
. When using Panasonic (Matsushita) Pro High Speed 1GB SD Memory Card.
*3. Within limits of memory and battery life.
*4
. When using built-in memory.
*5. With built-in flash off.
*6
. When set at maximum image size and normal image quality.
*7
. Range is affected by optical zoom.
*8
. May differ according to camera setting.
*9
. Aperture changed by optical zoom or recording mode.
*10
. SOS: Standard Output Sensitivity.
*11. 1080/50i output is not supported for PAL output using HDMI™.
*12. Auto Mode, standard brightness monitor setting.
