This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.






**This camera has been discontinued. Please click "HERE" to view similar cameras.**







Fuji S5 Pro 12 MegaPixel Digital Camera

Models:

XNiteFujiS5         UV+Visible+IR

XNiteFujiS5IR     IR-Only



Note:  Fuji has stopped making the S5 Pro.  We can sometimes find a new one, but the price will probably be more.  The price indicated is probably correct for a good, used S5 Pro, but this will depend on availability.  If you want this camera, you should check with us first for current pricing.

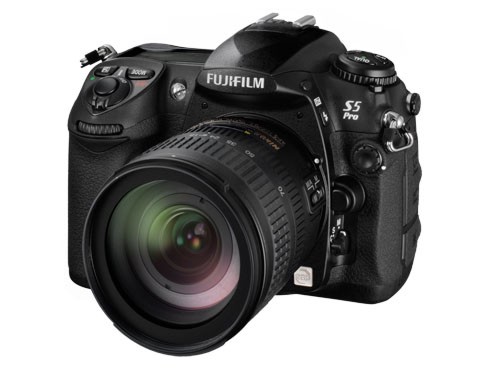

(Body only - lens pictured here is not included)

We have the Fuji S5 Pro available as a UV+Visible+IR model and IR-Only.  If you are doing forensic work, you probably want the version that can see UV.  IR-Only is useful when you want to have a camera dedicated to IR photography and be able to see through the lens normally while having Auto Focus (AF) and Auto Exposure (AE) work.



The UV+Visible+IR camera can take normal pictures when using our IR blocking filter XNiteCC1.  When using an IR pass/Visible blocking filter, you will lose AF and AE, and you will also not be able to see through the lens.  This conversion is exactly the same as the Fuji IS Pro which retails at a substantially higher price.



Body material Magnesium alloy
Sensor • Fujifilm SuperCCD SR II
• 23.0 x 15.5 mm
• 2 photodiodes per photosite (one S and one R)
• RGB color filter array
• 14 bit A/D converter
Effective pixels • 12.34 million
   • S-pixel: 6.17 million
   • R-pixel: 6.17 million
Image sizes * • 4256 x 2848 (12.1 million)
• 3024 x 2016 (6.1 million)
• 2304 x 1536 (3.5 million)
Image formats

• JPEG (EXIF 2.2) - 2 levels (Fine, Normal)
• CCD-RAW (14 bit) - S only mode
• CCD-RAW (14 bit x2) - S+R mode

Lens mount Nikon F mount (with AF coupling & AF contacts)
Usable lenses

• Type DX AF Nikkor: All functions supported
• Type G or D AF Nikkor (IX Nikkor lenses can not be used): All functions supported
• Micro Nikkor 85 mm f/2.8D:All functions supported except autofocus and some exposure modes
• Other AF Nikkor (excluding lenses for F3AF): All functions supported expect 3D color matrix metering II and 3D multi-sensor balanced fill-flash for digital SLR
• AI-P Nikkor: All functions supported except 3D color matrix metering II,3D multi-sensor balanced fill-flash for digital SLR, and autofocus
• Non-CPU: Can be used in exposure modes A and M; electronic range finder can be used if maximum aperture is f/5.6 or faster; colour matrix metering, multi-sensor balanced fill-flash for digital SLR, and aperture value display supported if user provides lens data

FOV crop 1.5x
Focusing * • 11/7-area AF
• TTL phase detection
• Nikon Multi-CAM 1000 autofocus module
• Detection range: EV -1 to EV 19 (ISO 100, 20°C/68°F)
• Single / Dynamic Area AF (inc. Closest Subject Priority)
Lens servo * • Single Servo AF [S]
• Continuous Servo AF [C]
• Manual focus [M]
Focus Tracking automatically activated by subject's status in [S] or [C] AF
AF area mode * • Single Area AF
• Dynamic AF with Focus Tracking and Lock-on
• Group Dynamic AF
• Closest Subject Priority Dynamic AF
AF assist Yes, white lamp
Shooting modes • Programmed AE Mode (with program shift)
• Shutter-Priority AE
• Aperture-Priority AE
• Metered Manual
Metering system / range • 1,005-pixel CCD
• Matrix: 0 - 21 EV
• Center-Weighted Average: 0 - 21 EV
• Spot: 3 - 21 EV
  (Normal temperature with F1.4 lens)
Metering modes • 3D Color Matrix Metering II
• Center-Weighted
• Spot (3 mm circle)
Meter Coupling CPU and AI
AE Lock • Dedicated button
• Half-press shutter release
Exposure compensation * • +/- 5 EV
• 1/3, 1/2 or 1 EV steps
Exposure steps 0.5 EV
AE Bracketing • 2 or 3 frames
• 0.5, 1.0, 1.5 or 2.0 EV steps
Sensitivity • ISO 100
• ISO 160
• ISO 200
• ISO 400
• ISO 800
• ISO 1600
• ISO 3200
Shutter Electronically controlled vertical-travel focal-plane shutter
Shutter speed * • 30 sec - 1/8000 sec
• Bulb
Flash X-sync * 1/250 sec
Aperture values Depends on lens (1/3, 1/2 or 1 EV steps)
DOF preview Button, stops-down lens aperture
Exposure moes • Program Auto [P] - flexible program possible
• Shutter-Priority Auto [S]
• Aperture-Priority Auto [A]
• Manual [M]
Drive modes • Single frame
• Continuous shooting
• Self-timer mode (2, 5, 10 or 20 sec)
Continuous shooting
Yes, details unknown
Built-in flash • Pop-up (manual)
• Guide no. 12 (ISO 100)
• Max shutter speed: 1/250 sec
Flash control • TTL: TTL flash control by 1,005-pixel RGB sensor.
• Built-in Speedlight: i-TTL balanced fill-flash or standard i-TTL flash (spot metering or mode dial set to [M])
• SB-800 or 600: i-TTL balanced fill-flash for digital SLR and standard i-TTL flash for digital SLR.
• Auto aperture: Available with SB-800 with CPU lens
• Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX, 28, 27, and 22s
• Range-priority manual; available with SB-800
External flash • X-contact hot-shoe (with i-TTL support)
• PC sync terminal
Viewfinder * • Fixed eye-level pentaprism
• Built-in diopter adjustment
• Coverage: Approx. 95%
• Magnification: 0.94x
White balance * • Auto
• Fine
• Shade
• Fluorescent
• Incandescent
• Flash
• Preset
• Color temperature
Film simulation * • F1
• F1a
• F1b
• F1c
• F2
Color space • sRGB
• Adobe RGB
Dynamic range * • Auto
• 100% (Std)
• 130%
• 170%
• 230% (W1)
• 300%
• 400% (W2)
Storage * Compact Flash Type I/II
LCD monitor * • 2.5" TFT LCD
• 235,000 pixels
Connectivity * • USB 2.0 (Hi-Speed)
• Video out
• Wired remote
• DC in
• PC Sync terminal
Power * • Lithium-Ion battery
• Optional AC adapter
Dimensions * 170 x 113 x
