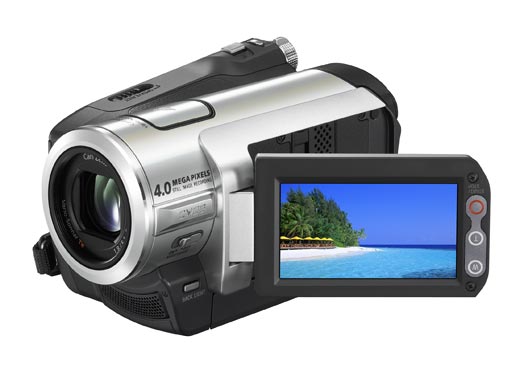

Sony HDR-HC5 IR Enabled

Model: XNiteSonyHC5 (USA Model NTSC) - PAL model on request

This model has been discontinued and replaced by the Sony HDR-HC9.

High Definition Mini DV Infrared Capable Camcorder!  Even the home video enthusiasts are impressed with the range of recording capabilities offered by the HDR-HC5 Handycam® camcorder. With HD and SD Recording Modes, you can make the move to HD while retaining compatibility with standard definition equipment. The HC5 sets the industry standard in resolution quality with its ClearVid CMOS Image Sensor™, capturing precise detail and superior color reproduction. Dual Record Mode lets you capture 2.1 Megapixel stills while shooting high definition video. And Smooth Slow Recording captures fast movement with precise detail for slow motion playback. Now you can record what you want however you want it.

Externally, there are no visual changes. Internally, we have modified the optics so that the camera can see from 330nm to 1200nmx versus a stock camera which can see from about 380nm to 750nm

 Specifications

Complete Infrared (X-Ray) Functionality!  Full Infrared (IR) capability with all normal camera functions including aperture control.  You can use the IR features on a sunny beach with no overexposure problems that a stock factory camcorder would have.

Special Note:  This modified camera must use our XNite-CC1 color correction filter for normal (non-IR) pictures.  This modified camera is sensitive to both IR and visible light.  If you take pictures with no filters, the camera will see both the IR light and visible light which will alter the correct color balance.  To take normal pictures, use the camera with a XNite-CC1 filter to block IR and pass visible.  Please see example pictures on color balance here.  To take IR (X-Ray) pictures, you should use one of our XNite IR filters which block visible light and pass IR.

The 37mm filters for this camera are available Here.

The compact HDR-HC5 mini High Definition DV camcorder, offers digital video and audio recording. The Digital technology delivers rich and accurate picture quality, with up to 1080i lines of horizontal resolution. Equipped with a 2.1 Mega Pixel CCD that provides stunning detail and clarity, it can also record high resolution digital still images and store them directly onto Sony's Memory Stick media.

Also includes a manual focus ring, with Professional Quality Carl Zeiss Vario Sonnar T Lens. The T lens has an additional coating that reduces lens flare and lens glare.

Would you like us to convert your camera? We can convert your camera for $500 + return S&H ($20 insured UPS ground domestic USA).  Camera should be shipped well packed, insured, with lens cover and battery for testing.  Turnaround is typically 1 or 2 days depending on how busy we are.

Our Performance Guarantee  If you are not satisfied with your IR enabled camera, we will put it back to stock at no additional charge other than return shipping.

Capture high definition (HD) and standard definition (SD) video to a MiniDV cassette with the Handycam® HDR-HC5 high definition camcorder. Record every detail of every moment with the 10x optical/80x digital zoom and Carl Zeiss® Vario-Sonnar® T* Lens. However, you'll be capturing more than just video with the 4.0 megapixel still image feature. Snap spectacular 2.3 megapixel photos while filming in dual record mode. The HDR-HC5 even slows down the audio. Get it all and get it in high definition with this amazing camcorder.

2.1 Megapixel (Gross) ClearVid™ CMOS Sensor

1/3" ClearVid CMOS Sensor provides stunning detail and clarity with exceptional video (1080 lines of resolution - HD Mode or 530 lines of horizontal resolution - SD Mode) and still image performance (4.0 Megapixel). Unlike traditional CCD Imagers, CMOS Sensors require less power, providing better battery performance.

Switchable HD/DV Format Recording

The HDR-HC5 is capable of recording and playing back both High Definition (HD) and Standard Definition (SD) video recorded on a standard MiniDV cassette.

Real-Time HD Codec Engine

Sony developed a Real Time MPEG Encode/Decode system with reduced energy consumption and compact size to fit inside a personal camcorder. This engine provides efficient MPEG2 compression, and recording and playback of clear HD images at the same bit rate of the DV format, so that High Definition video can be recorded on the same MiniDV cassettes as are used for SD recording.

x.v. Color

x.v.Color can capture or display nearly twice as many (1.8x) viewable colors than currently possible. This provides a more accurate and vivid color range, for a more natural, lifelike overall experience.

10X Optical / 80XDigital Zoom

The optical zoom helps to bring the action close up from far away. In addition, the Digital Zoom Interpolation means that extreme digital zooming is clearer, with less distortion than previous types of digital zoom.

Professional Quality Carl Zeiss® Vario-Sonnar® T Lens

Carl Zeiss lenses have an advanced optical multi-layer coating that offers less glare and flare with increased contrast. This results in vivid image brilliance, true-to-life color saturation and perfectg renditions of subtle tones. The additional T coating on the lens further reduces unwanted glare and flare.

2.7" Wide (16:9) Hybrid Touch Panel Clear Photo™ LCD Plus Display (211K Pixels)⁴

The 2.7" Wide (16:9) LCD screen provides excellent viewing clarity with imporoved resoltuion. The 211K pixel LCD screen rotates up to 270 degrees for multiple viewing angles providing sharp, detailed images for monitoring or playback, and the widescreen format makes shooting in 16:9 mode and composing shots even easier.

Smooth Slow Record

By increasing the record rate from 60 fields per second (fps) to 240 fps for 3 seconds allowing you to capture 3 seconds of fast motion and play the video back in 12 seconds. This is great for analyzing a golf swing or a viewing a bird in flight. In addition, record an audio track to narrate what is being seen in the video.

Memory Stick Duo™ Media Slot³

Capture still images up to 2304x1728 resolution, directly onto Memory Stick Duo™ Media for easy trasfer to PCs for emailing, printing or shairing with other compatible Memory Stick® media compatible devices.

Dual Record

While recording video in High Definition you have the ability to capture a 2.3 Megapixel still image directly to Memory Stick Duo™ media.

Super SteadyShot® Image Stabilization System

Picture stabilization system that uses motion sensors to detect and compensate for camera "shake" without compromising picture quality like some other digital stabilization systems.

Cinematic Mode

Perfect for creating your own movie masterpieces, the HDR-HC5 Cinematic mode lends 24 frame film-like effect to your recordings.

i.LINK® Interface (IEEE1394)²

A high speed bi-directional digital video/audio communication between two compatible devices equipped with an IEEE1394 interface, including camcorders, digital VCRs, and PCs.

Tele Macro Function

Useful for shooting close up shots, but without having the camcorder casting a shadow on the subject. Images shot in the Tele Macro Mode will have the subject properly focused with the background unfocussed so that the subject stands out.

Active Interface Shoe

Provides a location directly on the camcorder on which to add optional accessories while providing power and two-way communication to those accessories.

Built-in Intelligent Flash

For added clarity and detail when taking pictures in low-light situations, the built-in flash improves pictures and reduces shadows.

Super NightShot® Infrared System

With Sony's NightShot® infrared system, capture video in total darkeness (0 lux) up to 10 feet away. Super NightShot mode automatically adjusts the shutter speed to increase picture brightness and clarity. Color Slow Shutter mode allows you to record in low light situations with full color detail by slowing down the shutter speed.

Scene Selection Modes

Scene Selection modes make recording easy even when filming in challenging situations. Choose from Beach, Candle, Fireworks, Landscape, Portrait, Sports Lesson, Spotlight, and Sunrise & Sunset.

Fader Effects-2

Enhance your personal videos by adding professional looking fader effects. Choose from Black, Mosaic, Monotone, and White.

Picture Effects

Get creative when recording or playing back your videos with Sony's Picture Effect Modes. Effects available in Camera mode: Monotone, Mosaic, Negative Art, Pastel, Sepia, Skin Tone and Solarize. Effects available in Playback mode: Mosaic, Pastel or Skin Tone.

InfoLITHIUM® Battery with AccuPower™ Meter System

Charge the battery at anytime because unlike NiCad (Nickel Cadmium) batteries, Sony's rechargeable Lithium Ion batteries are not subjected to a life shortening "Memory Effect". Sony's exclusive AccuPower™ meter displays the battery time remaining in minutes, in either the viewfinder or on the LCD screen.

Multi-Language Menu

Change the menu display from English to English (Simplified), Canadian French, Latin American Spanish, Brazilian Portuguese, Korean or Traditional Chinese.

One Touch Wide Angle Shooting

Easily switch between 16:9 and 4:3 aspect ratios for shooting, with just the touch of a button.

Easy Handycam

Using a camcorder can be intimidating for some people, so with a press of the Easy Handycam Button, most of the advanced features of the camcorder are "locked out" leaving only the buttons essential for recording operational.

On Screen Zoom and Record Buttons

For additional control of the camcorder, the DCR-HC5 features Zoom and Record buttons on the frame of the LCD screen. This allows the user more flexibility when holding the camcorder, especially in overhead or low angle shots.

Manual Focus

Allows the user to manually adjust the focus of the camcorder using the touch panel. Manual focusing also allows the user to control the focus in difficult situations where either the environment or the subject does not allow the camcorder's auto focus to perform optimally, such as when shooting through a window or in a crowded environment.

General

Main Features

Memory / Storage

Lens System

Additional Features

Viewfinder

Display

Digital Player (Recorder)

Microphone

Connections

Viewfinder / Display

Audio Input

Miscellaneous

Expansion / Connectivity

Power

Battery

Physical Characteristics
