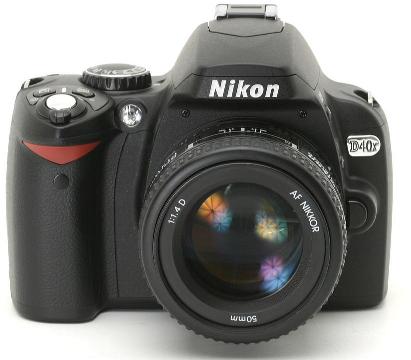

Nikon D40X: 10.2 MegaPixel Prosumer Infrared-Enabled Camera

Nikon has discontinued the D40X and replaced the camera with the D60.



Models:

XNiteNikonD40X        IR+Visible

XNiteNikonD40XIR     IR-Only

XNiteNikonD40XHR   HR (High Resolution / Hot Rod)





The Nikon D40X is a prosumer digital SLR camera.  Because of the nature of the IR enabling modification, we do not recommend this camera to anyone who does not fully understand the implications of the modification.  This camera offers great IR sensitivity, dynamic range and low noise.

We can modify this camera to be IR+Visible,  IR-Only and High Resolution (HR) . An IR+Visible camera will see both Infrared and Visible light after modification.  An IR-Only camera will only see IR from 715nm through 1200nm.  The IR-Only camera has an internal 715nm IR filter with an antiflection coating.  The 715nm filter performs similarly to the Hoya RM72 and Wratten 89B.

Please note that this model does not have a drive motor to autofocus lenses.  You need to make sure you are using a



IR+Visible IR-Only
Model XNiteNikonD40X XNiteNikonD40XIR
Camera can take normal visible pictures Yes with CC1 filter No
Camera can take IR pictures Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures No Yes
Camera autoexposure will work with IR pictures No Yes with Exp Comp Adj
User can see through lens when taking IR pictures No Yes.  Filter is internal.  External IR filters at other frequencies may be used with manual control.


We can modify your D40X for $450 + return S&H ($20 UPS ground insured domestic USA).  Turn around is 1 or 2 days from receipt.  We only need the camera and charged battery for testing along with a cover letter specifying the conversion type.
Type of Camera: Single-lens reflex digital camera
Effective Pixels: 10.2 million
Image Sensor: RGB CCD, 23.6 x 15.8 mm; total pixels: 10.75 million, Nikon DX format
Image Size (pixels): 3,872 x 2,592 [L], 2,896 x 1,944 [M], 1,936 x 1,296 [S]
ISO Sensitivity: 100 to 1600 in steps of 1 EV with additional setting one step over 1600
Storage Media: SD memory card, SDHC compliant
Storage System: Compressed NEF (RAW): 12-bit compression; JPEG: JPEG baseline compliant
File System: Exif 2.21, Compliant DCF 2.0 and DPOF
White Balance:  Auto (TTL white balance with 420-pixel RGB sensor); six manual modes with fine tuning and preset white balance
LCD Monitor: 2.5-inch, 230,000-dot, low-temperature polysilicon TFT LCD with 170-degree wide-angle viewing and brightness adjustment
Playback Function: 1 frame; thumbnail (4 or 9 segments); magnifying playback; slide show; histogram indication; highlight point display; auto image rotation
Delete Function: Card format, all frames delete, selected frames delete
Video Output: NTSC or PAL
Text Input: Up to 36 characters of alphanumeric text input available with LCD monitor and multi selector; stored in Exif header
Compatible Lenses*:  Nikon F mount with AF coupling and AF contacts Type G or D AF Nikkor: 1) AF-S, AF-I: All functions supported; 2) Other Type G or D AF Nikkor: All functions supported except autofocus; 3) PC Micro-Nikkor 85mm f/2.8D: Can only be used in mode M; all other functions supported except autofocus; 4) Other AF Nikkor*?/AI-P Nikkor: All functions supported except autofocus and 3D Color Matrix Metering II; 5) Non-CPU: Can be used in mode M, but exposure meter does not function; electronic range finder can be used if maximum aperture is f/5.6 or faster; 6) IX Nikkor lenses cannot be used
*?? Excluding lenses for F3AF
Picture Angle: Equivalent in 35mm [135] format is approx. 1.5 times lens focal length
Eyepoint: 18mm (-1.0 m-1)
Viewfinder:  Fixed-eyelevel penta-Dach mirror type; built-in diopter adjustment (-1.7 to +0.5m-1)
Focusing Screen: Type B BriteView Clear Matte screen Mark V with superimposed focus brackets
Viewfinder Frame Coverage: Approximately 95% (vertical/horizontal)
Viewfinder Magnification: Approx. 0.8x with 50mm lens at infinity; -1.0 m-1
Viewfinder Information: Focus indications, AE/FV lock indicator, shutter speed, aperture value, exposure/exposure compensation indicator, exposure mode, flash output level compensation, exposure compensation, number of remaining exposures, flash-ready indicator
Autofocus: TTL phase detection by Nikon Multi-CAM530 autofocus module with AF-assist (range approximately 0.5-3.0m/1ft. 8in.-9ft. 10in.); Detection range: -1 to +19 EV (ISO 100 at 20 degrees C/68 degrees F)
Lens Servo: 1) Autofocus (AF): Instant single-servo AF (AF-S); continuous servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking automatically activated according to subject status; 2) Manual focus (M)
Focus Area: Can be selected from 3 focus areas
AF Area Modes: 1) Single Area AF; 2) Dynamic Area AF; 3) Dynamic Area AF with Closest Subject Priority
Focus Lock: Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button
Exposure Metering System: TTL full-aperture exposure metering system: 1) 3D Color Matrix Metering II (type G and D lenses); Color Matrix Metering II (other CPU lenses); metering performed by 420-segment RGB sensor; 2) Center-weighted: Weight of 75% given to 8mm circle in center of frame; 3) Spot: Meters 3.5mm circle (about 2.5% of frame) centered on active focus area
Exposure Metering Range: 1) 0 to 20 EV (3D Color Matrix or center-weighted metering); 2) 2 to 20 EV (spot metering)
Exposure Modes: Digital Vari-program (Auto, Auto [Flash Off], Portrait, Landscape, Child, Sports, Close Up, Night Portrait), Programmed Auto (P) with flexible program; Shutter-Priority Auto (S); Aperture Priority Auto (A); Manual (M)
Exposure Compensation: plus or minus 5 EV in increments of 1/3 EV
Exposure Lock: Exposure locked at detected value with AE-L/AF-L button
Shooting Modes: 1) Single frame shooting mode; 2) Continuous shooting mode: approx. 2.5 frames per second*; 3) Self-timer mode; 4) Delayed remote mode: 2 s. delay; 5) Quick-response remote mode
*Approx. 1.7 frames per second with Noise Reduction turned on and approx. 1 frame per second with ISO HI1
Shutter: Combined mechanical and CCD electronic shutter, 30 to 1/4000 sec. in steps of 1/3, bulb
Sync Contact: X-contact only; flash synchronization at up to 1/200 sec.
Flash Control: 1) TTL: TTL flash control by 420-segment RGB sensor, i-TTL balanced fill-flash for digital SLR and standard i-TTL fill-flash for digital SLR available when CPU lens is used with built-in flash, SB-800, SB-600 and T041; 2) Auto aperture: Available with SB-800 with CPU lens; 3) Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX, 28, 27 and 22s; 4) Range-priority manual available with SB-800
Flash Sync Modes: Auto, Portrait, Child and Close Up modes: 1) Auto, auto with red-eye reduction; fill-flash and red-eye reduction available with optional Speedlight; 2) Night portrait mode: Auto, auto slow sync, auto slow sync with red-eye reduction; slow sync and slow sync with red-eye reduction available with optional Speedlight; 3) Landscape, Sport mode: Fill-flash and red-eye reduction available with optional Speedlight; 4) P, A: Fill flash, rear-curtain with slow sync, slow sync, slow sync with red-eye reduction, red-eye reduction; 5) S, M: Fill flash, rear-curtain sync, red-eye reduction
Built-in Flash: Auto, Portrait, Child, Close Up, Night Portrait mode: Auto flash with auto pop-up P/S/A/M: Manual pop-up with button release Guide number (ISO 200/ISO 100, m [ft.]): approx.17 [55]/12 [39] (manual full 18 [59]/13 [42]
Flash Compensation: -3 to +1 EV in increments of 1/3 EV
Accessory Shoe: Standard ISO hot-shoe contact with sync, signal and ground contacts and safety lock
Self-Timer: Electronically controlled timer with duration of 2, 5, 10 or 20 seconds
Remote Control: Via optional ML-L3 Wireless Remote Control
Power Source: One Rechargeable Li-ion Battery EN-EL9; charging voltage (MH-23 quick charger): 7.4V DC, EH-5 AC Adapter (available separately; requires optional EP-5 AC Adapter Connector)
Tripod Socket: 1/4 in. (ISO1222)
Dimensions (W x D x H): Approximately 5.0 x 2.5 x 3.7 inches
Weight: Approximately 1lb., 1oz. without battery, memory card or body cap
Included Accessories*: EN-EL9 Rechargeable Li-ion Battery, MH-23 Quick Charger, UC-E4 USB Cable, PictureProject, DK-16 Rubber Eyecup, Camera Strap, BF-1A Body Cap, DK-5 Eyepiece Cap, BS-1 Accessory Shoe Cap.
*Supplied accessories may differ depending on country or area.
Optional Accessories: ML-L3 Wireless Remote Control, Capture NX, Camera Control Pro, EH-5 AC Adapter, EP-5 AC Adapter Connector, EG-D100Video Cable, Semi Soft-Case CF-DC1, Speedlight SB-800/SB-600/SB-400/R1C1



Extraordinary Nikon Image Quality The D40x's high-resolution image quality is made possible by Nikon's high-performance 10.2 effective megapixel Nikon DX format CCD imaging sensor and exclusive Nikon image-processing engine, assuring stunning sharpness and color.
Nikon's Smallest Digital SLR Ever! Beautifully styled, the D40x makes high-performance digital SLR photography easier and more convenient than ever.You'll be amazed at the power packed into a camera that weighs just over 16 ounces.
High-Performance 10.2 Megapixel Nikon DX Format CCD Imaging Sensor Nikon?s DX Format CCD image sensor delivers vivid color and sharp detail, great for making beautifully detailed enlargements of 24 x 36 inches and beyond. High resolution also provides room for creative cropping.
Fast Startup with Instant Shutter Response A fast 0.18 second startup combined with split-second shutter response and rapid-action shooting at up to 3 frames per second makes it easy to freeze special moments instantly.
Shoot at up to 3 Frames per Second The D40x can fire continuously at a speed of up to 3 frames per second, capturing high-quality action sequences of children in sporting activities such as soccer, baseball and much more.
2.5-Inch, 230,000-Dot Color LCD Monitor with 170-Degree Wide-Angle Viewing Playback images are easy to see and function menus are easier to use with a larger and brighter color LCD monitor. The large 2.5-inch LCD monitor enables image preview at up to 19 times magnification and has large type fonts with easy-to-view menus.
3 Colorful Display Options All new display options: Classic, Graphic and Wallpaper. Carefully designed color schemes help make changing camera settings easier than ever.
Built-in Speedlight with i-TTL Automatic Flash Control Nikon's innovative i-TTL flash control evaluates flash exposure with incredible precision to achieve better automatic flash balance and deliver outstanding results. The built-in Speedlight is always at the ready and brings beautiful exposures in darkened conditions, as well as adding sparkle for fill flash in outdoor situations for enhanced twilight shots or an added impact to daylight images. In low-light or back-light situations, added illumination from the built-in Speedlight can make the difference between an average snapshot and a dazzling picture.
8 Digital-Vari Program Automatic Shooting Modes Eight Digital Vari-Program Modes include: Auto Flash-OFF, Portrait, Landscape, Child, Sports, Close Up and Night Portrait; each of which adjusts automatically for optimal results for everyday shooting situations. Each mode considers lighting conditions and possibilities, aperture, shutter speed, white balance, hue, tone, sharpening and more to make creative photography as simple as rotating the mode dial.
In-Camera Image Editing Highly versatile in-camera editing features through the Retouch Menu include Nikon D-Lighting, Red-Eye Correction, Image Trim, Image Overlay, Monochrome (Black and White, Sepia and Cyanotype) along with Skylight, Warm Tone and Color Balance filter effects. This provides greater creative freedom without the need for a computer, for those who prefer to send pictures directly to a printer.
New Advanced HELP Menu System with Assist Images The D40x's newly introduced Assist Images help you select the appropriate settings for many camera features by showing an example image typical of that setting, as well as an advanced HELP Menu for the current item selected. The D40x's Question Mark icon (?) indicates that help is available for the currently selected item; just press the HELP button beside the LCD monitor to see a context-sensitive HELP page.
Nikon 3D Color Matrix Metering II The D40x's 3D Color Matrix Metering II evaluates each scene for brightness, color, contrast, size and position of shadows and highlights, selected focus area and camera-to-subject distance, comparing that information against an onboard database of more than 30,000 actual photographic scenes. The result delivers instantly and precisely determined exposures for each scene, even in challenging lighting conditions.
Fast, Accurate 3-Area Autofocus The D40x's advanced 3-Area AF system and the refined algorithms inherited from more advanced Nikon digital SLR cameras deliver fast, efficient and precise Autofocus. AF refinements deliver greater precision with fast, more consistent subject acquisition and improved focus tracking for consistently sharper pictures.
Image Optimization Options The D40x's Image Optimize setting lets photographers adjust color, contrast and sharpening, as well as other image settings, according to the type of scene or output desired. Settings include: Normal, Softer, Vivid, More Vivid, Portrait, Custom and Black and White, each of which are automatically adjusted based on sophisticated Nikon algorithms or user-selected settings for optimum results.
Up to 520 Images* per Battery Charge The supplied EN-EL9 rechargeable battery will allow for shooting up to 520 images per charged based on CIPA battery testing standards.



The Nikon D40 was announced just under four months ago, and yet here we are with a new version of that camera. The D40X has the same compact lightweight body and easy to use control layout, in fact the only external physical difference is the badge. Under the bonnet Nikon has swapped out the D40's six megapixel CCD for a ten megapixel unit, this also provides a lower base sensitivity of ISO 100 and must utilize dual readout because continuous shooting frame rate has gone up from 2.5 fps to 3.0 fps. Based on the specs and features this camera is clearly aiming to knock the EOS 400D (Digital Rebel XTi) off its pedestal.

Auto Focus only for AF-S or AF-I lenses

As with the D40 the D40X doesn't have an built-in focus drive motor which means it can auto focus only with lenses which have their own drive motor (AF-S and AF-I lenses). The lack of a drive motor can be seen by the missing mechanical focus drive pin on the lens mount (see images below).

D40 / D40X lens mount D80 lens mount

Nikon D40X key features

bullet10 megapixel DX format CCD (1.5x FOV crop)
bulletNikon Image processing engine (as D80 / D200)
bullet3D Color Matrix Metering II, 420 pixel sensor (as D80 / D50)
bulletNew Multi-CAM530 three area AF sensor
bulletISO sensitivity range 100 - 1600 plus HI 1 (3200 equiv.)
bullet3.0 fps continuous shooting, unlimited in JPEG
bulletNo status LCD, new LCD monitor based status / settings screens
bulletHelp suggestions on LCD monitor (eg. scene too dark, try using flash)
bulletLarge 2.5" 230,000 pixel LCD monitor
bulletBigger viewfinder view (x0.8 magnification, 95% coverage)
bulletShort shutter lag and viewfinder blackout
bulletSupport for SDHC (SD cards over 2 GB in capacity)
bulletIn-camera retouching
bulletD-Lighting (shadow / highlight enhancement)
bulletRed-eye reduction
bulletTrimming
bulletMonochrome
bulletFilter effects
bulletSmall picture
bulletImage overlay
bulletUSB 2.0 with PTP and Mass Storage device support
bulletVery compact, light body (smaller, lighter than D50)
bulletImproved menu user interface (as D80 / D200)
bulletNew EN-EL9 Lithium-Ion battery (7.2V, 1000 mAh)
bulletNew 'Version II' AF-S DX 18-55 mm kit lens

Differences compared to the D40

bullet10 megapixel sensor
bulletLower base sensitivity (ISO 100 vs ISO 200)
bulletAuto ISO option includes ISO 200
bulletFaster continuous shooting (3 fps vs. 2.5 fps)*

* Slower with noise reduction enabled
