Olympus E520: 10.0 MegaPixel Light Small DSLR

Model: XNiteE520    - UV+Visible+IR

Model: XNiteE520IR   - High-Red 590nm or IR Only 715nm

Model: XNiteE520HR   - HR (High Resolution / No AA Filter)

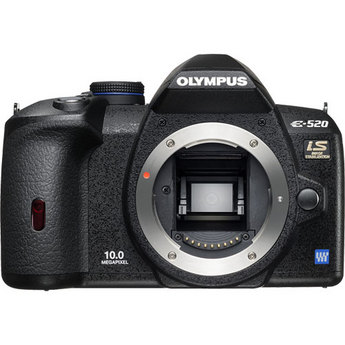

Olympus E-520 SLR Digital Camera (Camera Body)

We can modify this camera to be UV+Visible+IR,  IR-Only-715nm or Visible Hot Rod.  An UV+Visible+IR camera will see UV,  Infrared and Visible light after modification.  An IR-Only camera will only see IR from 715nm through 1200nmm or 830nm through 1200nm depending on the glass installed inside the camera.

A Visible Hot-Rod camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.

  HR (High Res / Hot Rod) IR+Visible IR-Only
Model XNiteE520HR XNiteE520 XNiteE520IR
Camera can take normal visible pictures Yes Yes with CC1 filter No
Camera can take IR pictures No Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures NA No Yes
Camera autoexposure will work with IR pictures NA No Yes.  May need Exp Comp Adj
User can see through lens when taking IR pictures No.  Camera is not IR sensitive No Yes.  Filter is internal.

Please note that the anti-dust system will continue to work on this camera unlike many other DSLR's.  Live View will work correctly.

Modification will void your warranty.

We can modify your E410, E420, E450, E510 or E650 for a $450 fee + return shipping & handling ($20 for UPS ground insured within continental USA).



General

bulletProduct Type Digital camera - SLR with Live View mode
bulletWidth 5.4 in
bulletDepth 2.7 in
bulletHeight 3.6 in
bulletWeight 16.8 oz
bulletBody Material Plastic

Main Features

bulletResolution 10 megapixels
bulletColor Support Color
bulletOptical Sensor Type Live MOS
bulletTotal Pixels 11,800,000 pixels
bulletEffective Sensor Resolution 10,000,000 pixels
bulletField of View Crop Factor 2
bulletSensor Dust Reduction Yes
bulletSensor Features Supersonic Wave Filter (SWF)
bulletLight Sensitivity ISO 100 , ISO 200 , ISO 400 , ISO 800 , ISO 1600 , ISO auto (100-1600)
bulletShooting Programs Macro , Candle , Sunset , Low key , Children , High key , Documents , Fireworks , Landscape , Anti shake , Beach/snow , Night scene , Sports mode , Nature macro , Portrait mode , Panorama assist , Underwater wide , Underwater macro , Landscape-portrait , Night scene with portrait
bulletSpecial Effects Blue , Green , Muted , Sepia , Vivid , Purple , Portrait , Black & White , Black & White Red filter , Black & White Green filter , Black & White Orange filter , Black & White Yellow filter
bulletImage Stabilizer Optical (image sensor shift mechanism)
bulletMax Shutter Speed 1/4000 sec
bulletMin Shutter Speed 60 sec
bulletX-sync Speed 1/180 sec
bulletExposure Metering Spot , Multi-segment , Center-weighted
bulletExposure Range EV 1-20 ( ISO 100 )
bulletExposure Compensation ?5 EV range, in 1/3 EV steps
bulletAuto Exposure Bracketing 3 steps in 1/3, 1/2 or 1 EV steps
bulletExposure Metering Zones 49
bulletWhite Balance Custom , Presets , Automatic
bulletWhite Balance Presets Flash , Shade , Overcast , Sunlight , 3000K - 7500K , Tungsten light , Fluorescent light (daylight) , Fluorescent light (cool white) , Fluorescent light (warm white)
bulletWhite Balance Bracketing Yes
bulletRemote Control Optional
bulletTV Tuner None

Memory / Storage

bulletFloppy Drive None
bulletDigital Storage Media None
bulletImage Storage RAW 3648 x 2736 - 11 MB , Super-fine JPEG 3648 x 2736 - 6.8 MB , Fine JPEG 3648 x 2736 - 4.7 MB , Normal JPEG 3648 x 2736 - 2.2 MB , Basic JPEG 3648 x 2736 - 1.5 MB , Super-fine JPEG 3200 x 2400 - 5.3 MB , Fine JPEG 3200 x 2400 - 3.7 MB , Normal JPEG 3200 x 2400 - 1.7 MB , Basic JPEG 3200 x 2400 - 1.1 MB , Super-fine JPEG 2560 x 1920 - 3.6 MB , Fine JPEG 2560 x 1920 - 2.2 MB , Normal JPEG 2560 x 1920 - 1.1 MB , Basic JPEG 2560 x 1920 - 0.7 MB , Super-fine JPEG 1600 x 1200 - 1.3 MB , Fine JPEG 1600 x 1200 - 0.8 MB , Normal JPEG 1600 x 1200 - 0.5 MB , Basic JPEG 1600 x 1200 - 0.3 MB , Super-fine JPEG 1280 x 960 - 0.8 MB , Fine JPEG 1280 x 960 - 0.5 MB , Normal JPEG 1280 x 960 - 0.3 MB , Basic JPEG 1280 x 960 - 0.2 MB , Super-fine JPEG 1024 x 768 - 0.5 MB , Fine JPEG 1024 x 768 - 0.4 MB , Normal JPEG 1024 x 768 - 0.2 MB , Basic JPEG 1024 x 768 - 0.1 MB , Super-fine JPEG 640 x 480 - 0.2 MB , Fine JPEG 640 x 480 - 0.2 MB , Normal JPEG 640 x 480 - 0.1 MB , Basic JPEG 640 x 480 - 0.1 MB

Camera Flash

bulletCamera Flash Pop-up flash
bulletGuide Number (m / ISO 100) 12
bulletRed-eye reduction
bulletRed Eye Reduction Yes
bulletFeatures AF illuminator , Flash +/- compensation , Flash exposure bracketing

Lens System

bulletType Zoom lens - 14 mm - 42 mm - F/3.5-5.6 Four Thirds
bulletFocal Length 14 mm - 42 mm
bulletAuto Focus TTL contrast and phase detection
bulletAuto Focus Points (Zones) 3
bulletMin Focus Range 9.8 in
bulletLens Aperture F/3.5-5.6
bulletOptical Zoom 3 x
bulletZoom Adjustment Manual
bulletLens Construction 8 group(s) / 10 element(s)
bulletFilter Size 58 mm
bulletLens System Mounting Four Thirds
bulletFeatures ED glass , Internal focusing system

Lens System (2nd)

bulletType Zoom lens - 40 mm - 150 mm - F/4.0-5.6 Four Thirds
bulletSpecial Functions Tele , Zoom
bulletFocal Length 40 mm - 150 mm
bulletFocal Lenght Equivalent to 35mm Camera 80 - 300mm
bulletMin Focus Range 35.4 in
bulletLens Aperture F/4.0-5.6
bulletFocus Adjustment Manual , Automatic
bulletOptical Zoom 3.8 x
bulletLens Construction 9 group(s) / 12 element(s)
bulletFilter Size 58 mm
bulletFeatures ED glass , Internal focusing system

Additional Features

bulletSelf Timer Yes
bulletSelf Timer Delay 2 sec , 12 sec
bulletFlash Terminal Hot shoe
bulletAdditional Features AE lock , AF lock , Mirror lock , DPOF support , Direct print , Face detection , Auto power save , Contrast control , Focus bracketing , Cropping an image , Histogram display , Resizing an image , Sharpness control , LCD live view mode , PictBridge support , Saturation control , PRINT Image Matching , Shadow point display , USB 2.0 compatibility , Digital image rotation , Highlight point display , In-camera RAW processing , RGB primary color filter , In-camera red-eye removal , Display brightness control , Shadow Adjustment Technology , Depth-of-field preview button

Viewfinder

bulletViewfinder Type Optical - Fixed eye-level pentaprism
bulletField Coverage 95%
bulletMagnification 0.92x
bulletDioptric Correction Range -3 to +1
bulletViewfinder Frames Autofocus frame
bulletLCD Display Information AE lock , AF lock , Aperture , Exposure mode , Shutter speed , White balance , Metering system , Exposure compensation , Flash charge completion

Display

bulletType LCD display - TFT active matrix - 2.7 in - Color
bulletDisplay Form Factor Built-in
bulletDisplay Format 230,000 pixels

Digital Player (Recorder)

bulletType None

Connections

bulletConnector Type 1 x USB , 1 x Composite video output
bulletExpansion Slot(s) 1 x CompactFlash Card - Type I/II , 1 x xD-Picture Card

Software

bulletSoftware Olympus Master , Drivers & Utilities

Miscellaneous

bulletWindows Vista Readiness Certified for Windows Vista
bulletIncluded Accessories Body cap , Dust cap , Lens cap , Lens hood , Eyepiece cover , Shoulder strap
bulletCables Included USB cable , Video cable

Power

bulletPower Device Battery charger - External

Battery

bulletSupported Battery Olympus BLM-1
bulletSupported Battery 1 x Olympus BLM-1 Li-ion rechargeable battery - 1500 mAh ( Included )

Environmental Parameters

bulletMin Operating Temperature 32 ?F
bulletMax Operating Temperature 104 ?F
