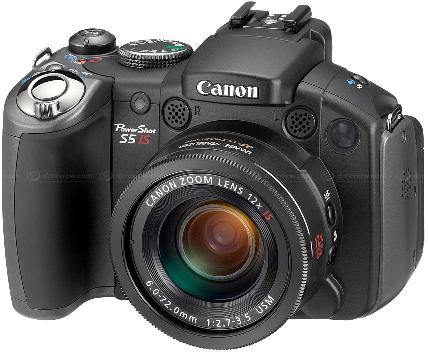

Modified Canon PowerShot S5-IS 10.0 MegaPixel Camera
DISCONTINUED. This model has been replaced by the Canon PowerShot SX10 IS
Model: XNiteCanoS5 Canon PowerShot S5-IS UV + Visible + IR
Model: XNiteCanonS5IR Canon PowerShot S5-IS IR-Only
Our modified Canon PowerShot S5-IS can see from about 340nm to 1100nm.
The camera uses 58mm filters which are available here. We include the Canon Lens Hood for attaching the 58mm filters. Note, you should use the XNiteCC1 filter to block infrared light when you want to take a normal picture. For infrared pictures, you have many options. If you are just starting, we recommend at least one high cut filter (like a 1000nm or XDP) and one low cut filter (like a 715nm) because they have very different looks.
Because the camera uses an Electonic Viewfinder (EVF), all the focusing is done through the image sensor and you will see the UV, visible or infrared image before you take the picture.
We can convert your PowerShot S5-IS for $275 for UV+IR+Visible and $375 for IR-Only + return S&H ($20 UPS ground insured domestic USA). Turn around is usually 1 or 2 days from receipt.
This camera uses 58mm Filters available Here. For normal photographs, you should order an XNiteCC1 filter. For UV photographs, you can use our XNite330 or XNiteUVR. We recommend stacking our XNiteBP1 filter to block the small infrared transmission bump that all UV filters have.
| Sensor |
• 1/2.5 " Type CCD |
|---|---|
| Image sizes | • 3264 x 2448 • 2592 x 1944 • 2048 x1536 • 1600 x 1200 • 640 x 480 |
| Aspect ratio | 4:3 and 3:2 (3264 x 1832) |
| Image processor | DIGIC III |
| Movie clips | • 640 x 480 @ 30 / 15fps • 320 x 240 @ 60 / 30 / 15fps • WAVE (stereo) |
| File formats | • Still: JPEG (Exif 2.2) • Movie: AVI (Motion JPEG compression) |
| Lens | • 36 - 432 mm equiv • 12x Optical zoom • F2.7 - F3.5 (max) • 11 elements in 9 groups (1 aspherical element, 1 UD element) |
| Image stabilization | Yes (Lens shift-type) |
| Conversion lenses | Yes |
| Digital zoom | up to 4x |
| Auto focus | • AiAF (Face Detection / 9-point) • 1-point AF (Fixed center) |
| Focus modes | • AF: Single, Continuous • Manual • Focus bracket |
| AF assist lamp | Yes |
| Focus distance | Closest 0 cm |
| Metering | • Evaluative (linked to Face Detection
AF) • Center-weighted average • Spot |
| ISO sensitivity | • Auto • High ISO Auto • ISO 80 • ISO 100 • ISO 200 • ISO 400 • ISO 800 • ISO 1600 |
| Exposure compensation | • +/- 2EV • 1/3 stop increments |
| Exposure bracketing | • 1/3-2EV • 1/3 stop increments |
| Shuttter speed | 15 – 1/3200 sec |
| Aperture | F2.7-3.5 (max) |
| Modes | • Auto • Program AE • Shutter Priority AE • Aperture Priority AE • Manual • Custom • Portrait • Landscape • Night Scene • Sports • Stitch Assist • Movie • Special Scene • Super Macro |
| Scene modes | • Indoor • Night Scene • Foliage • Snow • Beach • Fireworks • Color Accent • Color Swap |
| White balance | • Auto • Daylight • Cloudy • Tungsten • Fluorescent • Fluorescent H • Flash • Custom |
| Self timer | • 2 or 10 secs • Custom |
| Continuous shooting | Approx. 1.5 fps until card fills |
| Image parameters | My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color) |
| Flash | • Auto • Manual Flash On / Off • Slow Synch • Red eye reduction • Flash exposure lock • Flash Exposure Compensation +/- 2EV in 1/3 stop increments • Manual Power adjustment • Second Curtain Synch • Range: 50 cm - 5.2 m (wide) / 90 cm - 4.0 m (tele) |
| Hot-shoe | • Canon Speedlites (220EX, 430EX, 580EX) • E-TTL with EX series Speedlites, Canon's High Power Flash HF-DC1 |
| Viewfinder | • EVF (0.33" type) • 115,000 pixels |
| LCD monitor | • Vari-angle 2.5-inch Low Temp P-Si TFT • 207,000 pixels • Adjustable Brightness |
| Other features | • Playback red-eye correction • My Camera • Sound Memo • Orientation Sensor • Histogram • Playback zoom |
| Languages | English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian |
| Connectivity | • USB 2.0 Hi-Speed • AV out |
| Print compliance | • PictBridge • Canon SELPHY Compact Photo Printers and PIXMA Printers supporting PictBridge (ID Photo Print, Fixed Size Print and Movie Print supported on SELPHY CP & ES printers only) |
| Storage | • SD / SDHC / MMC compatible • 32 MB card supplied |
| Power | • 4x AA Alkaline battery supplied or NiMH
batteries • Optional AC adapter |
| Weight (no batt) | 450 g |
| Dimensions | 117 x 80 x 78 mm |
