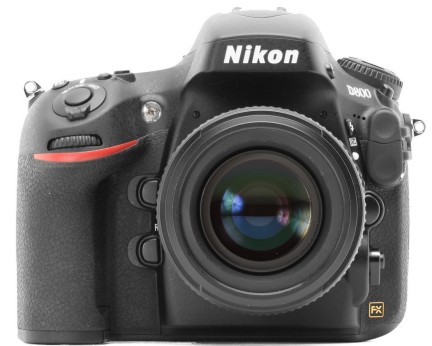

Nikon D800 36.3 MegaPixel Infrared-Enabled Camera

Models:

XNiteNikonD800         UV+Visible+IR

XNiteNikonD800DIR    IR-Only (715nm or 830nm)

XNiteNikonD800HR     High Resolution Visible Light Camera

XNiteNikonD800BW    Monochrome Camera

Lens pictured is not included.

We can modify this camera to be IR+Visible+UV, High-Red, IR-Only, High Resolution (HR) , UV-Only and Monochrome.

bulletIR+Visible+UV: Camera seee everything the sensor is cable of seeing.  Camera will see some UV, the entire visible range and infrared from 715nm to 1200nm.
bulletHigh-Red

665nm: Camera will see from 665nm to 1200nm.  Red channel will see visible red and infrared.  Blue and green channels will only see infrared.

590nm: Camera will see from 590nm to 1200nm.  Red channel will see visible red and infrared.  Green channel will see come visible green and infrared.  Blue channel will only see infrared.

bulletIR-Only

715nm:  All channels  only see infrared.  The red channel is the most open to the IR and contains somewhat different information than the blue and green channels allowing for some creative color effects such as red-blue channel swapping to get deep blue skies.  A 715nm converted camera sees about the same amount of light as a stock camera so apertures and shutter are similar to a stock camera.  715nm is similar to a Hoya RM72 or Wratten 89B.

830nm:  All channels only see infrared.  Camera loses about 2 stops of exposure.  Once you equalize color levels, picture will be almost completely black and white.  The infrared effect is more intense at 830nm - skies are darker, clouds whiter and you see further through smoke and haze.

bulletUV Only:: Camera will only see UV light.  We recommend focusing using the Live View feature.  A lens such as the Jenoptik 60mm APO lens works well with this conversion.
bulletHR (High Resolution/ Hot Rod).  An HR camera has the Anti-Aliasing (Blur) filter removed and replaced with a thicker IR Cut Filter to keep the same focal plane.  A Visible HR camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.
bulletMonochrome  We can covert this camera to monochrome.  We have a variety of ways to setup a monochrome camera including no coverglass, UV-VIS-IR, HR, UV-Only, etc.

Monochrome Examples.  You can Right-Click on the file to download the RAW image.

Selection at 100%



Selection at 100%

Selection at 100%

General

bulletProduct Type Digital camera - SLR with Live View mode,
with Movie recording
bulletResolution 36.3 megapixels
bulletOptical Sensor Type CMOS
bulletTotal Pixels 36,800,000 pixels
bulletEffective Sensor Resolution 36,300,000 pixels
bulletOptical Sensor Size 24 x 35.9mm
bulletSensor Dust Reduction Yes
bulletSensor Features Self Cleaning Sensor Unit
bulletImage Processor EXPEED 3
bulletAuto Focus TTL contrast and phase detection
bulletAuto Focus Points (Zones) Qty 51
bulletAE/AF Control Subject-tracking AF,
Dynamic-area AF,
3D-tracking AF,
Auto-area AF,
Face-priority AF
bulletFace Detection Face-priority AF function
bulletDigital Video Format MOV,
H.264
bulletImage Recording Format JPEG,
TIFF,
NEF (RAW),
RAW + JPEG
bulletAV Interfaces HDMI

Exposure & White Balance

bulletLight Sensitivity ISO 100-6400,
ISO 50-100,
ISO 6400-25600,
ISO auto
bulletExposure Metering 3D color matrix III,
Center-weighted,
Spot
bulletExposure Modes Bulb,
Automatic,
Shutter-priority,
Manual,
Aperture-priority
bulletSpecial Effects Portrait,
Miniature,
Landscape,
Warm Filter,
Cyanotype,
Red,
Blue,
Green,
Selective Color,
Skylight Filter,
Vivid,
Cross Screen,
Fisheye,
Soft,
Black & White,
Sepia,
Neutral,
Monochrome,
Image Overlay,
Color outline,
Color sketch
bulletWhite Balance Automatic,
Presets,
Custom
bulletWhite Balance Presets Sunlight,
Shade,
2500K - 10000K,
Fluorescent,
Incandescent,
Cloudy,
Flash
bulletMax Shutter Speed 1/8000 sec
bulletMin Shutter Speed 30 sec
bulletExposure Compensation ?5 EV range, in 1, 1/2 or 1/3 EV steps
bulletAuto Exposure Bracketing 9 steps in 1/3, 1/2, 2/3 or 1 EV steps
bulletWhite Balance Bracketing Yes
bulletX-sync Speed 1/250 sec
bulletExposure Range EV 0-20 ( ISO 100 )

Lens System

bulletLens System Mounting Nikon F

Camera Flash

bulletCamera Flash Pop-up flash
bulletGuide Number (m / ISO 100) 12
bulletFlash Modes Rear curtain sync,
Fill-in mode,
Slow synchro,
Flash OFF mode,
Red-eye reduction
bulletFeatures Flash exposure bracketing,
Flash +/- compensation,
AF illuminator

Additional Features

bulletContinuous Shooting Speed 4 frames per second
bulletSelf Timer Delay 2 sec,
10 sec,
5 sec,
20 sec
bulletFlash Terminal PC terminal,
Hot shoe
bulletAdditional Features Digital image rotation,
Display brightness control,
HDR image enhancement technology,
Mirror lock,
In-camera red-eye removal,
Depth-of-field preview button,
Eye-Fi Card Ready,
USB 3.0 compatibility,
Resizing an image,
Cropping an image,
Saturation control,
In-camera RAW processing,
Subject tracking technology,
Exif Print support,
Distortion control,
Perspective control,
Wi-Fi ready,
Active D-Lighting technology,
DPOF support,
GPS ready,
Time-Lapse recording,
Advanced Scene Recognition System,
Digital level meter,
Histogram display,
Automatic display brightness adjustment,
Highlight point display,
Camera orientation detection,
In-camera movie editing,
PictBridge support,
Takes photos while movie recording,
Sharpness control,
Hue control,
Intelligent Noise Reduction system,
Direct print

Viewfinder

bulletViewfinder Type Optical - Fixed eye-level pentaprism
bulletViewfinder Color Support Color
bulletField Coverage 100%
bulletMagnification 0.70x
bulletDioptric Correction Range -3 to +1
bulletViewfinder Frames Autofocus frame

Display

bulletType 3.2 in LCD display
bulletDisplay Features Built-in

Microphone

bulletMicrophone Operation Mode Mono

Connections

bulletConnector Type 1 x USB 3.0,
1 x HDMI output,
1 x Remote control,
1 x Audio input ( Mini-phone stereo 3.5 mm ),
1 x Audio output ( Mini-phone stereo 3.5 mm )

Software

bulletSoftware Nikon ViewNX 2

System Requirements for PC Connection

bulletPeripheral Devices USB port,
CD-ROM drive

Miscellaneous

bulletIncluded Accessories LCD display cover,
Battery charger,
Carrying strap,
Cable clip,
USB cable,
Body cap,
Shoe cap
bulletBody Material Magnesium alloy

Battery

bulletSupported Battery Nikon EN-EL15
bulletSupported Battery 1 x Nikon EN-EL15 Li-ion rechargeable battery ( Included )
bulletBattery Life Details Photo shooting

Memory / Storage

bulletMemory Card Slot SD card,
CompactFlash Card
bulletSupported Memory Cards SD Memory Card,
CompactFlash,
SDXC UHS-I Memory Card,
SDHC UHS-I Memory Card
bulletImage Storage JPEG,
RAW 7360 x 4912 - FX format,
TIFF 5520 x 3680 - FX format,
3680 x 2456 - FX format,
6144 x 4080 - 1.2x crop,
4608 x 3056 - 1.2x crop,
3072 x 2040 - 1.2x crop,
4800 x 3200 - DX format,
3600 x 2400 - DX format,
2400 x 1600 - DX format,
6144 x 4912 - 5:4,
4608 x 3680 - 5:4,
3072 x 2456 - 5:4,
6720 x 3776 - FX-format in movie live view mode (16:9),
5040 x 2832 - FX-format in movie live view mode (16:9),
3360 x 1888 - FX-format in movie live view mode (16:9),
4800 x 2704 - DX-format in movie live view mode (3:2),
3600 x 2024 - DX-format in movie live view mode (3:2),
2400 x 1352 - DX-format in movie live view mode (3:2)
bulletVideo Capture MOV - 1920 x 1080,
MOV - 1920 x 1080,
MOV - 1920 x 1080,
MOV - 1280 x 720,
MOV - 1280 x 720,
MOV - 1280 x 720,
MOV - 1280 x 720

Dimensions & Weight

bulletWidth 5.7 in
bulletDepth 3.2 in
bulletHeight 4.8 in
bulletWeight 2 lbs

Environmental Parameters

bulletMin Operating Temperature 32 ?F
bulletMax Operating Temperature 104 ?F
bulletHumidity Range Operating 0 - 85% (non-condensing)
