TVS-200 EX

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


30/30 Thermometer Thermal TIR4 EZTherm 875 EZTherm 881 TVS-200 EX

Order

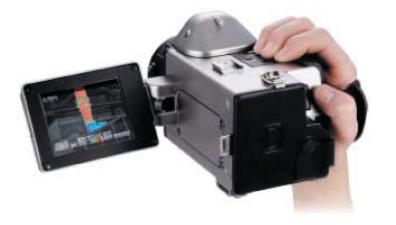

TVS-200 EX Multi-Function Portable Infrared Thermal Imaging Camera



               TVS-200 EX Thermal Imaging Camera

Features

bullet

Realtime memory which captures temperature changing at 1/60 seconds

bullet

Image mixing, where background of thermal image is displayed in transmission

bullet

Wide angle lens for measurement of wide area in one shot

bullet

Easy to use Windows style operating system

bullet

Latest generation 320 x 240 UFPA

bullet

Laser pointer/LED illumination equipped as standard

bullet

High level of image quality with the latest developed Japanese sensor with a 0.08C resolution

bullet

Firewire IEEE1394 Interface (optional)



TVS-200 EX Handheld Thermal Imaging Camera brings many new features for a compact lightweight imager. The camera supports a variety of applications from R&D to facility maintenance. Unique to the TVS-200 EX is a new image fusion function that enables the camera operator to mix thermal and visible video into fused real-time video with control over each channel's strength.

The ergonomic, lightweight, waterproof (IP-54 rated) camera body makes it easy to control in the field. Select from a number of in-camera analysis tools including multiple point measurement, temperature alarm set point, area analysis, isotherm and auto hot/cold spot tracking. Measure temperature up to 2000C or as cold as -20 and record images in both 14-bit and standard JPEG file formats. The TVS-200 EX features a new intelligent auto-scale capability based on four unique auto-scale techniques designed for specific applications.

TVS-200 EX produces stunning thermal images at 60Hz with high resolution and high sensitivity. Select from 6 unique color palettes to give you the best colorization for you, and when extra sensitivity is needed simply turn on the advance frame averaging function and improve the camera's sensitivity to better than 0.08C.

Specifications are subject to change without notice.

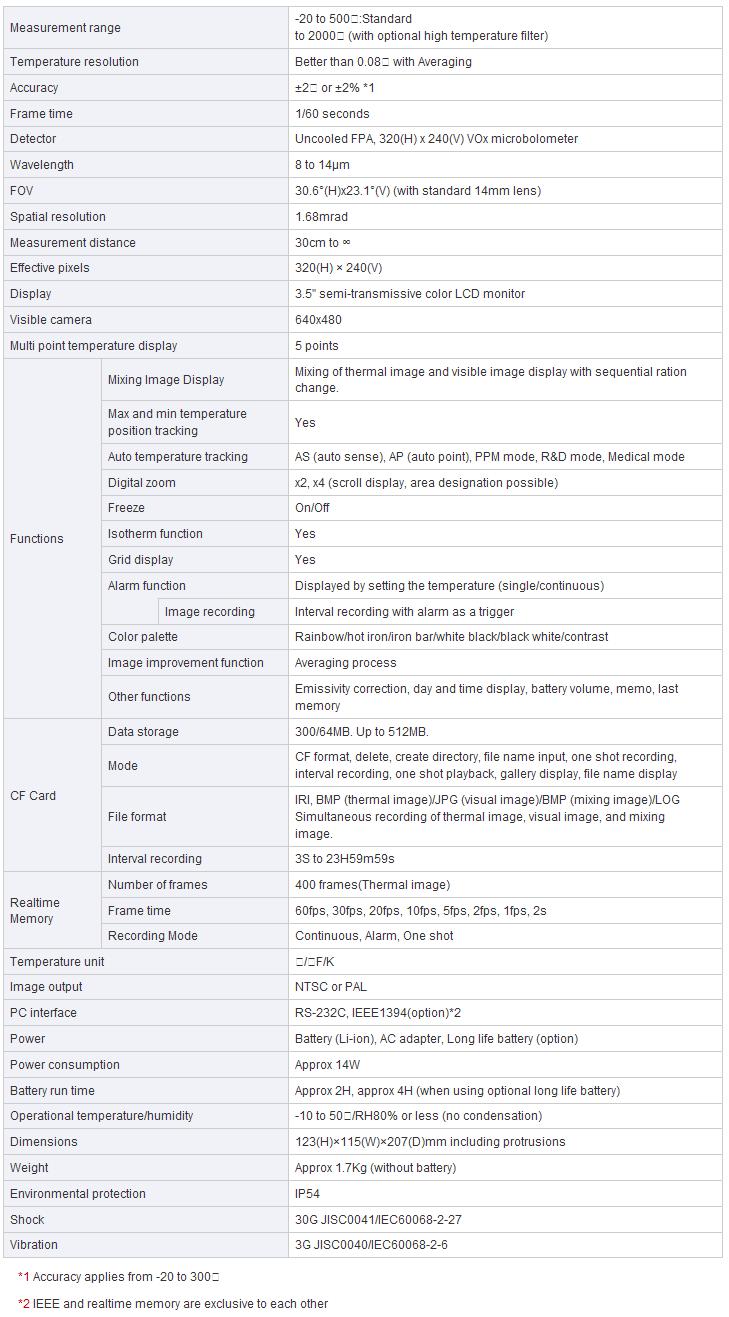

Specification:



Accessories:

bullet

AC Adapter

bullet

Battery Pack (2)

bullet

Battery Charger

bullet

CF Card

bullet

Card Adaptor

bullet

Neck Strap

bullet

Carrying Case

bullet

RS-232C Cable

bullet

Operation Manual

bullet

Pointer and light



Optional Accessories:

 Items

Descriptions

bulletCarrying Case

bulletLCD Hood
bulletThermal Image Analysis Software PE-Pro
Various functions are available: Thumbnail display of thermal images, Temperature range adjustments, Measurement of point temperature, Profile, Histogram, Trend Function, Subtraction, Ect. Analyzed results can be exported to word processing or spreadsheet software for report writing.
bulletFilter for High Temperature Measurements
For 900˚C, 2000˚C
bulletIEEE1394 Image Transfer Kit
OS Compatibility: Windows 2000, XP (SP2) or higher.
bulletLong Life Battery Case
              The battery case can be used in direct connection to DC input terminal. (Two spare battery packs are required for use. Sold separately) Approx. 4hrs continuous use.
bulletX2 Wide Angle Lens

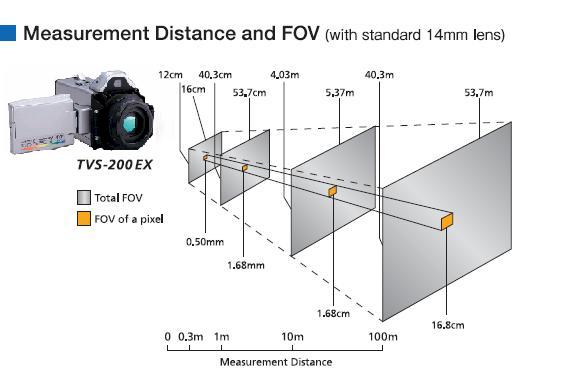

Measurement distance: 15cm or longer
FOV: 61.3 (H) x 46.0 (V)
bulletX2 Telescopic Lens

Measurement distance: 1.2m or longer
FOV: 15.3 (H) x 11.5 (V)
bulletX3 Telescopic Lens

Measurement distance: 2.5cm or longer
FOV: 10.2 (H) x 7.7 (V)
bulletClose-Up Lens (100m)

Measurement distance: 56mm (fixed)
FOV: 32mm (H) x 24mm (V)





Evaluation, prototyping

Plant maintenance

Building inspections
