5-Band

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.

XNiteELPH110-5 5-Band 32-Megapixel Remote Sensing Camera System

XNiteSX260-5 5-Band 24-Megapixel Remote Sensing Camera System with GPS

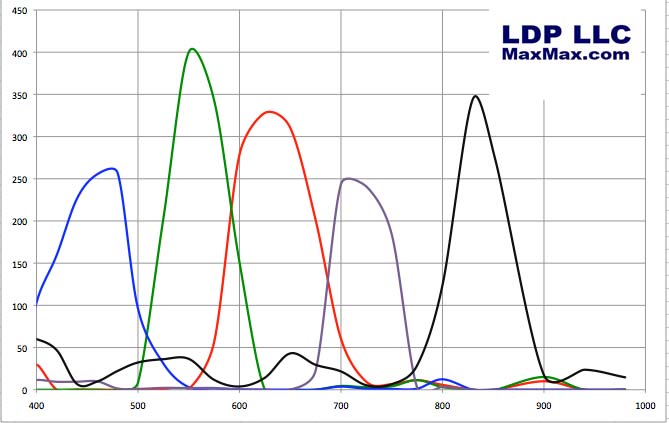

RSE corrected band response.

Bands

	Red: 575nm to 680nm
	Green 480nm to 575nm
	Blue 400nm to 480nm
	Infrared 680nm to 800nm
	Infrared 800nm to 900nm

System Includes

	2 Modified Cameras
	Camera Brackets and Assembly
	Custom Camera Firmware
	Shutter Controller with Batteries
	Custom Post Processing Software - Remote Sensing Explorer (requires Windows 64-Bit OS)

Weight - XNiteELPH110-5

Camera, Brackets and Camera Batteries	320 grams
Shutter Controller with No Batteries	80 grams
Shutter Controller with Batteries	160 grams
Complete System with Camera, Controller and Batteries	480 grams

XNiteELPH110-5 Dimensions

	Closed 19.0 x 7.5 x 2.7 cm
	Open 19.0 x 7.5 x 4.0 cm

Weight - XNiteSX260-5

Camera, Brackets and Camera Batteries	520 grams
Shutter Controller with No Batteries	80 grams
Shutter Controller with Batteries	160 grams
Complete System with Camera, Controller and Batteries	680 grams

XNiteSX260-5 Dimensions

	Closed 18.0 x 8.0 x 4.0 cm
	Open 18.0 x 8.0 x 7.0 cm

Shutter Controller Dimensions 8 x 5 x 4 cm

If you can provide your own 9V and 5V DC power to the shutter controller, you can reduce the total weight by 80 grams. Power required while running is less than 20 mA.

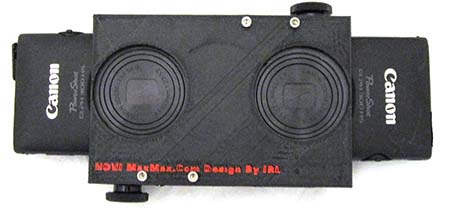

Top View

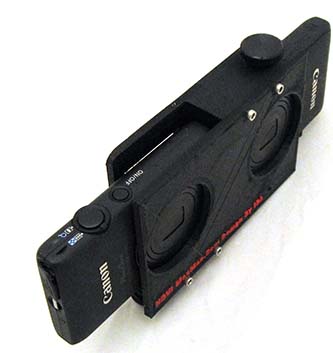

Orthogonal View

Shutter Controller

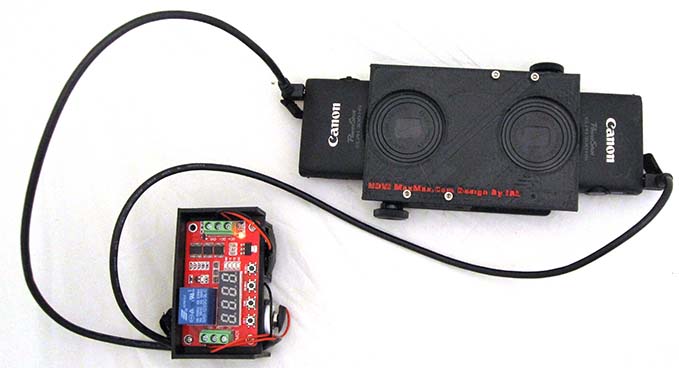

Complete Hardware
