The images acquired from our NDVI cameras are typically processed to create a false color image representation of vegetation index values.  While the unprocessed picture will give the user some information if they know what to look for, they will be able to see information much better once the camera image has been converted to another format.

The camera image is converted by processing the picture with our supplied software.  The software looks at each pixel Red, Green, Blue value and using the values, calculates a vegetation index for that particular pixel.  Typically, the vegetation index value will be a number between +1 and -1.  Depending on the value of the number, a particular color is assigned to that pixel.  Each pixel  in the original picture is evaluated and assigned a color.  The process of assigning colors depending on the value is called False Color Mapping.  The colors assigned can be anything you want as long as you know what the colors mean.

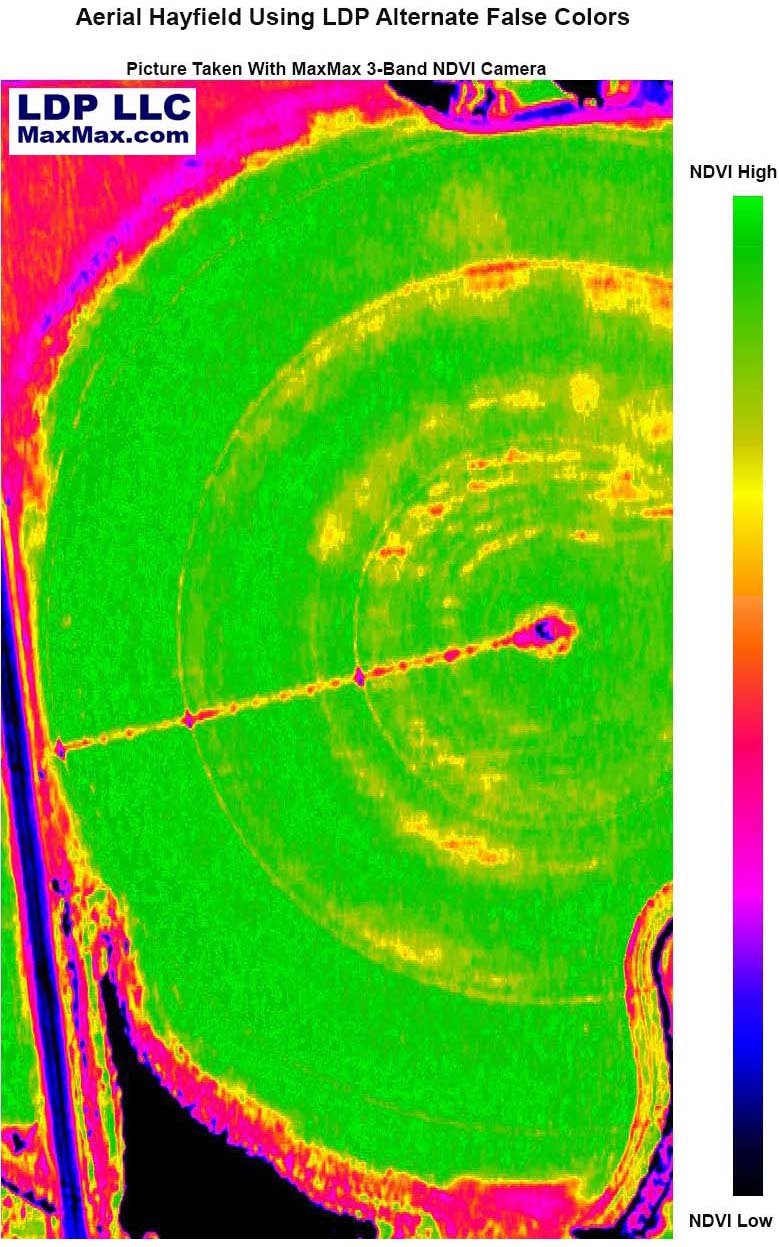

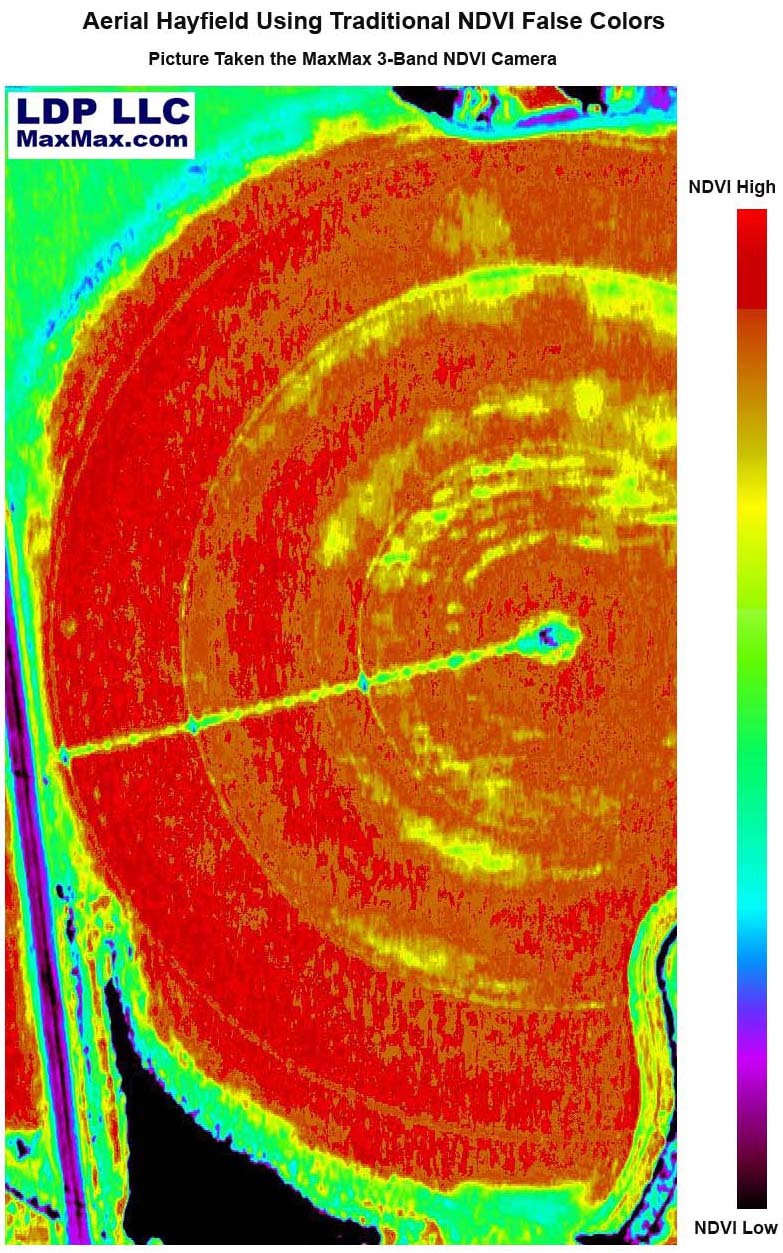

Our programs can either apply an older traditional NDVI color mapping or can apply a more modern color mapping.

Traditional NDVI Scale                            Modern LDP NDVI Scale

                              High NDVI Values



                            Low NDVI Values

We think it is a bit more intuitive to think of high NDVI values as the brightest green since those are typically the healthiest plants, but some may prefer the older method of mapping the highest NDVI values to red.  The traditional mapping of high NDVI values to red comes from the long discontinued Kodak Aerochrome Color Infrared film that was originally developed by the U.S. military in the 1940's for camouflage detection.

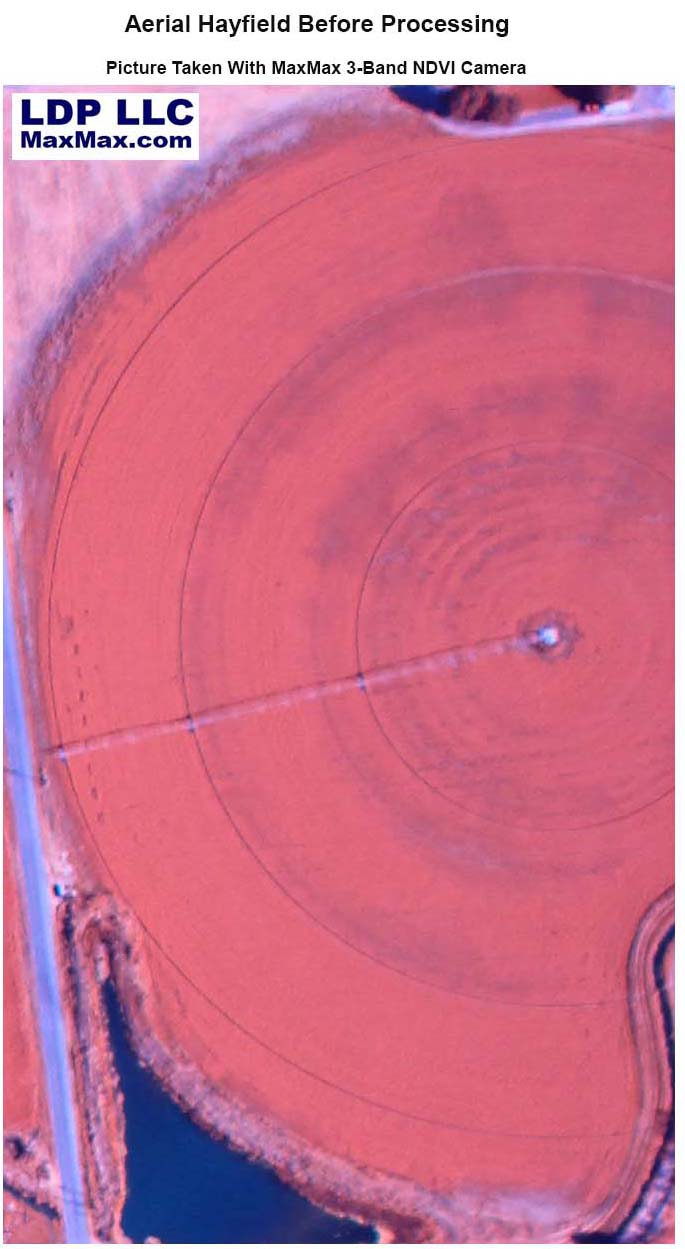

Here is a picture show as it looks coming from our 3-Band NDVI camera.
