MicroViewer

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


Order IR Camera Digital Still Cameras Video Cameras Microscope IR Conversions Camera Technical IR Techniques Example Uses Thermal Infrared MicroViewer Zigview R Zigview S Shutter Controls IR Scanner

Order

Model: Microviewer Color



Order Here

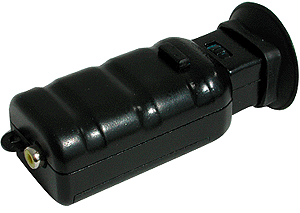

The MicroViewer is an extremely handy device for viewing video fed from a camera, camcorder or VCR. The MicroViewer can be used for testing video feeds, surveillance, hunting, fishing and many other applications

.Use

bulletInsert 3 AAA alkaline batteries.
bulletConnect video feed to RCA connector on MicroViewer.
bulletPress button on top of unit to turn MicroViewer On.
bulletAdjust focus if necessary with adjusting wheel by eyepiece.

Features

bulletSmall, light NTSC video viwer
bulletRubber molded eyepiece for daylight viewing
bulletLong 24 hour battery life of continuous use
bulletNo external power source needed
bulletOne handed operation
bulletPower shuts off automatically when not in use
bulletSharp black and white display
bulletAdjustable focus - eyeglass compatible
bulletLanyard loop for safety and convenience
bulletVideo connecting cable included



Specifications

Color

Display Type

Color TFT Liquid Crystal

Display Mode

Transmissive Color

Pixel Count

180,000

Resolution

Contrast Ratio

Brightness

Grayscale

NA

Interface

NTSC Analog Video

Backlight

White LED

Optic Field Of View

16 Degrees

Battery Requirement

3 AAA Alkaline

Operating Temperature

-40 to 160 DegF

Continuous Battery Life

24 Hours

Weight w/o Batteries

3.5 ounces

Dimensions

4.4 x 1.7 x 1.3 inches



Order Here
