16 LED Flashlight

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.

LED Keychain LED Sub-Mini LED Penlight Precision LED TwinTask 5 LED Flashlight 16 LED Flashlight FlashSTG 2 Million Candles HID Handheld 10 Million Candles



16 LED Series


bullet16LEDWhite - 16 x White LED's each producing 10,000 mcd - 160,000 Total Output
bullet16LED375 - 16 x 375nm UV LED's - 17mW Total Output
bullet16LEDRed - 16 x 640nm 144,000 mcd Total Output
bullet16LEDBlue - 16 x 464nm 144,000 mcd Total Output
bullet16LEDGreen - 16 x 514nm 240,000 mcd Total Output
bullet16LED850 - 16 x 850nm IR LED's - 720mW Total Output
bullet16LED940 - 16 x 940nm IR LED's - 1,280mW Total Output
bullet16LEDCL - Optional concentration lens; can be fit on any of the 16LED flashlights to focus beam to a 0.35 inch spot 1 inch from front of lens.



bulletBattery: 1 PC CR123A Lithium (not included)
bulletO - Ring Sealed
bulletAnti-Reflective Housing
bulletWrist Strap

If need an IR illuminator for your night vision device (NVD), we recommend the 16LED840 because many NVD are not sensitive at 940nm or have reduced sensitivity.  However, the 840nm does emit a faint red glow when you view the LED's directly at close range.  If you need complete darkness, you should use the 16LED940.

For higher intensity light, you can add a concentration lens to the light.  For applications such as UV spot curing, we recommend using the concentration lens which will focus the power of all the LED's to a spot about 1/2 inch in diameter from a distance of 1 inch from the surface.



For Optimum results, use our custom CR123A Lithium Batteries which have an internal circuit breaker for protection against overload, 15 year shelf life, 1400 mA capacity and -40 degF to +140 degF temperature range.  Our battery performance exceeds many popular brands that cost more than double or triple our price.  Please note that batteries are not included with this light.

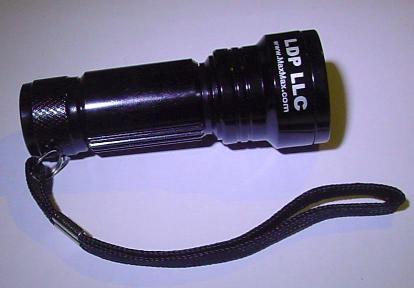

Note: Green LED version shown in picture.

Note: Because UV LED's have greater variability, it is normal for a few of the LED's on the 16LED375 model to become dimmer than the rest.  Presorting the LED's is possible, but would increase the price of the light significantly
