5 LED Flashlight

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.

LED Keychain LED Sub-Mini LED Penlight Precision LED TwinTask 5 LED Flashlight 16 LED Flashlight FlashSTG 2 Million Candles HID Handheld 10 Million Candles

5LED385 Spectrum
5LED405 Spectrum
5LEDBlue Spectrum
5LEDGreen Spectrum
5LEDRed Spectrum
5LEDWhite Spectrum
5LED880 Spectrum
5LED940 Spectrum


Please Note:  These flashlights were custom made for us a number of years ago.  The manufacturer is no longer in business and this light is too expensive to make again because it was machined from a solid bar of aluminum.  We have sold out of some models and have limited stock.

Our custom manufactured 5 LED flashlights are the highest quality, 5 LED lights that we have ever seen.  Manufacturing starts from a solid piece of aluminum which is CNC machined to form the housing and cap.  Wall thickness is 0.150 thick solid which is over 3 times thicker and stronger than a comparable Maglite.  The LED are connected to a Voltage Stabilization Circuit (VSC) which maintains optimum brightness as batteries wear out.  The LED and circuit board are press fit into the housing front and then sealed with epoxy to water proof and protect unit.  The rear cap and switch screw onto the back of the housing with an O-ring seal to protect against water leakage.  A sealed rubber switch in the battery cap turns the unit On / Off.  The LED's are selected from the brightest ones available for each particular color.




bulletCNC machined from solid aluminum with 0.150 thick walls
bulletVoltage Stabilization Circuit (VSC) maintains constant voltage to LED's as batteries deteriorate.  This ensures constant brightness.
bulletLED and circuit board sealed with epoxy to protect unit from water damage
bulletSealed rubber rear switch

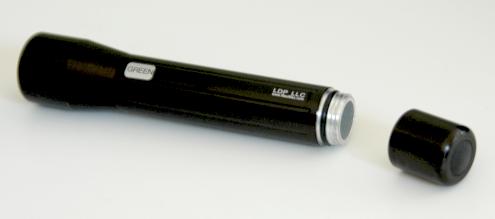

bulletO-Ring sealed, screw down rear battery cap
bulletUses 2-AA alkaline batteries

Light Ranges

bulletUltraviolet 385nm, 405nm
bulletBlue 465nm (old model 5LED470)

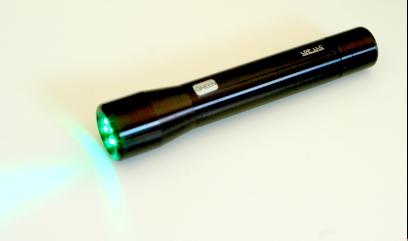

bulletGreen 511nm (old model 5LED525)

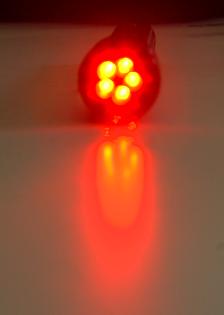

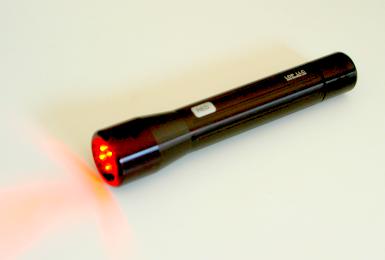

bulletRed 640nm (old model 5LED625)
bulletInfrared 880nm
bulletInfrared 940nm


Model Type Wavelength Beam Angle Available Output Power
5LED385 Ultraviolet 385nm 15 Sold Out 4.0 mW
5LED405 Ultraviolet 405nm 20 Yes 4,000 mcd
5LEDWhite White Mixed 20 Sold Out 28,000 mcd
5LEDBlue Blue 465nm 30 Sold Out 25,000 mcd
5LEDGreen Green 510nm 15 Yes 30,000 mcd
5LEDRed Red 640nm 15 Yes 25,000 mcd
5LED880 Infrared 880nm 18 Sold Out 2,500 mW/sr *
5LED940 Infrared 940nm 40 Yes 2,500 mW/sr *

* Infrared LED's are not rated in mcd (micro candles) because the light is not visible to the human eye so we use mW/sr which represents the radiant intensity.  Similarly, the 400nm LED emits light near the bottom of the human visible range, so the light appears much less intense.

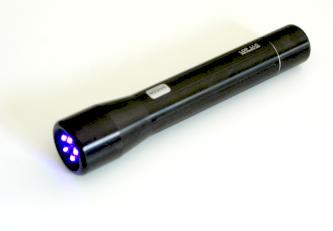

Ultraviolet 385nm and 405nm.

Some invisible inks, such as our invisible blue, will fluoresce from 350nm to 410nm allowing you to use our lower cost 405nm light.  Other inks, such as our invisible red (UVXPBR), will fluoresce faintly at 405nm but strongly at 385nm or lower.  The 385nm and lower lights will fluoresce a greater range of materials.


As seen in BioTechniques at

B Facile whole-body imaging of internal fluorescent tumors in mice ...

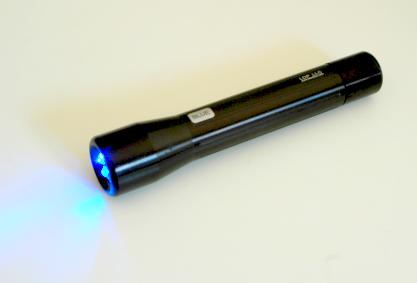

Our 5LEDBlue flashlight was used with green fluorescent protein (GFP) to view tumor growth of mice

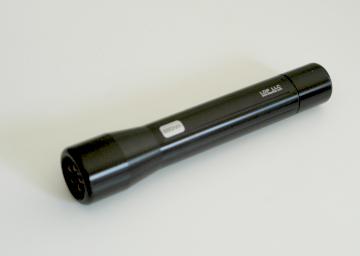

Infrared 880nm and 940nm

The 880nm lights emit a brighter light than the 940nm for most camcorders and night vision devices (NVD's).  Many NVD are only sensitive up to about 900nm.  Consumer camcorders are sensitive to about 1100nm if they have been infrared enabled or are in NiteShot mode.  The 880nm do emit a very faint red glow if you hold the light directly in front of your eye at close range in complete darkness.  For practical purposes, the 880nm can be considered completely invisible though some law enforcement agencies prefer the 940nm complete lack of emission in the visible range.
