Canon 600D (T3i)

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


IR Camera Flashes Sony Alpha A55 GoPro MotorSport HERO Canon G15 Canon G1X Canon SX50IS Canon S95 Canon 1000D (XS) Canon ELPH 110 Canon SX260 Canon 600D (T3i) Canon 650D (T4i) Canon 700D Canon 60D Canon 6D Canon 7D Canon 5D MKII Canon 5D MKIII Nikon D3200 Nikon D5100 Nikon D7100 Nikon D90 Nikon D300s Nikon D600 Nikon D800 Nikon D3x Lumix LX7 Olympus E620 Casio EX-FH25 Olympus Pen E-P2 Pentax K-5 Lumix GX1 Lumix GF3

Order

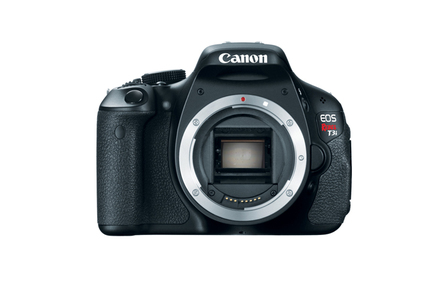

Canon Rebel 600D  (Rebel T3i) 18 MegaPixel Infrared-Enabled Camera

Models:

XNiteCanon600DB        UV+Visible+IR

XNiteCanon600DIR      High-Red (590nm or 665nm), IR-Only (715nm or 830nm)

XNiteCanon600DUV     UV-Only

XNiteCanon600DHR     High Resolution Visible Light Camera

XNiteCanon600DBW    B&W monochrome (see complete B&W options here)





The Canon 600D / T3i is a semi-professional digital SLR camera.  Because of the nature of the IR enabling modification, we do not recommend this camera to anyone who does not fully understand the implications of the modification.

We can modify this camera to be IR+Visible+UV, High-Red, IR-Only, High Resolution (HR) and UV-Only.

bulletIR+Visible+UV: Camera seee everything the sensor is cable of seeing.  Camera will see some UV, the entire visible range and infrared from 715nm to 1200nm.
bulletHigh-Red

665nm: Camera will see from 665nm to 1200nm.  Red channel will see visible red and infrared.  Blue and green channels will only see infrared.

590nm: Camera will see from 590nm to 1200nm.  Red channel will see visible red and infrared.  Green channel will see come visible green and infrared.  Blue channel will only see infrared.

bulletIR-Only

715nm:  All channels  only see infrared.  The red channel is the most open to the IR and contains somewhat different information than the blue and green channels allowing for some creative color effects such as red-blue channel swapping to get deep blue skies.  A 715nm converted camera sees about the same amount of light as a stock camera so apertures and shutter are similar to a stock camera.  715nm is similar to a Hoya RM72 or Wratten 89B.

830nm:  All channels only see infrared.  Camera loses about 2 stops of exposure.  Once you equalize color levels, picture will be almost completely black and white.  The infrared effect is more intense at 830nm - skies are darker, clouds whiter and you see further through smoke and haze.

bulletUV Only:: Camera will only see UV light.  We recommend focusing using the Live View feature.  A lens such as the Jenoptik 60mm APO lens works well with this conversion.
bulletHR (High Resolution/ Hot Rod).  An HR camera has the Anti-Aliasing (Blur) filter removed and replaced with a thicker IR Cut Filter to keep the same focal plane.  A Visible HR camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.
bulletB&W.  Sensor is converted to a monochrome or panchromatic sensor.  Additional options available such as HR, IR-Only, etc.  Please see more here.



  IR+Visible IR-Only
Model XNiteCanon600D XNiteCanon600DIR
Camera can take normal visible pictures Yes with CC1 filter No
Camera can take IR pictures Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures With Live View Yes
Camera autoexposure will work with IR pictures With Live View Yes with Exp Comp Adj
User can see through lens when taking IR pictures No Yes.  Filter is internal.

The Canon 600D or T3i has a nice feature called Live View with the ability to switch the Auto Focus (AF) mode from the normal AF sensor in the base of the camera to an AF mode using the image sensor itself - similar to the way a camcorder or point and shoot camera works.  This is particularly interesting on these modified cameras because it means that you can put a UV or IR filter that blocks visible light from the camera and still use the camera to AF.  You can also use the Live  View feature to manually focus when using filters that block visible light.

Please note that the anti-dust system is disabled on our conversions.  Live View will work correctly.

Modification will void your warranty.

We can modify your Canon 600D for UV+VIS+IR, High Red 590nm, High Red 665nm, IR-Only 715nm, IR-Only 830 or HR  for a $450 fee + return shipping & handling ($20 for UPS ground insured within continental USA)..

We can modify your Canon 600D for UV-Only for an $800 fee + S&H.

We do not perform B&W modifications on any customer cameras because of the risk during conversion.
