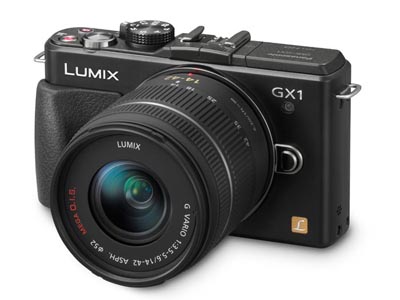

Lumix GX1

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


IR Camera Flashes Sony Alpha A55 GoPro MotorSport HERO Canon G15 Canon G1X Canon SX50IS Canon S95 Canon 1000D (XS) Canon ELPH 110 Canon SX260 Canon 600D (T3i) Canon 650D (T4i) Canon 700D Canon 60D Canon 6D Canon 7D Canon 5D MKII Canon 5D MKIII Nikon D3200 Nikon D5100 Nikon D7100 Nikon D90 Nikon D300s Nikon D600 Nikon D800 Nikon D3x Lumix LX7 Olympus E620 Casio EX-FH25 Olympus Pen E-P2 Pentax K-5 Lumix GX1 Lumix GF3

Order



XNiteLumixGX1

Models:

XNiteLumixGX1IR     UV+Visible+IR

XNiteLumixGX1IR     IR-Only (715nm)

XNiteLumixGX1HR    Visible Hot Rod







We stock and can modify this camera to be IR+Visible, High-Red, IR-Only or Visible Hot Rod (lens not included).

bulletIR+Visible+UV: Camera seee everything the sensor is cable of seeing.  Camera will see some UV, the entire visible range and infrared from 715nm to 1200nm.
bulletHigh-Red

665nm: Camera will see from 665nm to 1200nm.  Red channel will see visible red and infrared.  Blue and green channels will only see infrared.

590nm: Camera will see from 590nm to 1200nm.  Red channel will see visible red and infrared.  Green channel will see come visible green and infrared.  Blue channel will only see infrared.

bulletIR-Only

715nm:  All channels  only see infrared.  The red channel is the most open to the IR and contains somewhat different information than the blue and green channels allowing for some creative color effects such as red-blue channel swapping to get deep blue skies.  A 715nm converted camera sees about the same amount of light as a stock camera so apertures and shutter are similar to a stock camera.  715nm is similar to a Hoya RM72 or Wratten 89B.

830nm:  All channels only see infrared.  Camera loses about 2 stops of exposure.  Once you equalize color levels, picture will be almost completely black and white.  The infrared effect is more intense at 830nm - skies are darker, clouds whiter and you see further through smoke and haze.

bulletHR (High Resolution/ Hot Rod).  An HR camera has the Anti-Aliasing (Blur) filter removed and replaced with a thicker IR Cut Filter to keep the same focal plane.  A Visible HR camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.

Please note that this is a DLSR camera that does not include a lens

General

bulletProduct Type Digital camera - Mirrorless system
bulletEnclosure Color Silver
bulletResolution 16 megapixels
bullet3D Technology Yes
bulletOptical Sensor Type Live MOS
bulletTotal Pixels 16,680,000 pixels
bulletEffective Sensor Resolution 16,000,000 pixels
bulletOptical Sensor Size 13.0 x 17.3mm
bulletField of View Crop Factor 2
bulletSensor Dust Reduction Yes
bulletSensor Features Supersonic Wave Filter (SWF)
bulletDigital Zoom 4 x
bulletImage Processor Venus Engine
bulletImage Stabilizer Optical (MEGA O.I.S.)
bulletAuto Focus TTL contrast detection
bulletAuto Focus Points (Zones) Qty 23
bulletDigital Video Format AVCHD,
H.264
bulletImage Recording Format JPEG,
MPO,
RAW,
RAW + JPEG
bulletMax Video Resolution 1920 x 1080
bulletAV Interfaces HDMI,
Composite video/audio

Exposure & White Balance

bulletLight Sensitivity ISO 3200,
ISO 1600,
ISO 800,
ISO 200,
ISO 6400,
ISO 12800,
ISO 160,
ISO 400,
ISO auto
bulletExposure Metering Multi-segment,
Center-weighted,
Spot
bulletExposure Metering Zones 144
bulletExposure Modes Program,
Bulb,
Shutter-priority,
Manual,
Aperture-priority
bulletShooting Programs Sports mode,
Flower,
Sunset,
Architecture,
Night portrait,
Illumination snap,
Party/indoor,
baby2,
baby1,
Night scene,
Soft skin,
Peripheral defocus,
Food,
Scenery,
Pet,
Portrait mode
bulletSpecial Effects Miniature,
Expressive,
High Dynamic,
High Key,
Low Key,
Toy camera,
Sepia,
Retro
bulletWhite Balance Automatic,
Presets,
Custom
bulletWhite Balance Presets Daylight,
2500K - 10000K (100K steps),
Shade,
Incandescent,
Cloudy,
Flash
bulletMax Shutter Speed 1/4000 sec
bulletMin Shutter Speed 60 sec
bulletExposure Compensation ?5 EV range, in 1/3 EV steps
bulletAuto Exposure Bracketing 7 steps in 1/3, 2/3 or 1 EV steps
bulletWhite Balance Bracketing Yes
bulletX-sync Speed 1/160 sec
bulletExposure Range EV 0-18 ( ISO 100 )

Camera Flash

bulletCamera Flash Pop-up flash
bulletGuide Number (m / ISO 100) 7.6
bulletFlash Modes Rear curtain sync,
Fill-in mode,
Slow synchro,
Auto mode,
Flash OFF mode,
Red-eye reduction
bulletFeatures Flash +/- compensation,
AF illuminator

Additional Features

bulletContinuous Shooting Speed 2 frames per second,
4.2 frames per second,
20 frames per second (4Mpix),
3 frames per second
bulletSelf Timer Delay 2 sec,
10 sec
bulletFlash Terminal Hot shoe
bulletAdditional Features Digital image rotation,
Display brightness control,
1080i Full HD movie recording,
Scene Detection Technology,
In-camera red-eye removal,
Audio recording,
Dolby Digital Stereo Creator,
Intelligent Resolution Technology,
AF/AE tracking,
Resizing an image,
Cropping an image,
Subject Detection technology,
Face Recognition,
Intelligent D-range Control,
Date/time stamp,
Exif Print support,
Intelligent Auto Plus (iA+),
Full-time Live View,
DPOF support,
Face detection,
RGB primary color filter,
Built-in speaker,
Motion Detection Technology,
Multi-picture burst,
Digital level meter,
Digital noise reduction,
Dolby Digital AC-3 (2 channel) recording,
Touch-screen control,
Shade Correction,
Histogram display,
Automatic display brightness adjustment,
Intelligent Scene Selector,
Highlight point display,
Camera orientation detection,
In-camera movie editing,
PictBridge support,
Takes photos while movie recording,
USB 2.0 compatibility,
Light Speed AF,
Touch AF,
Direct print

Viewfinder

bulletViewfinder Type None

Display

bulletType 3 in LCD display
bulletDisplay Features Built-in

Microphone

bulletMicrophone Operation Mode Stereo
bulletMicrophone Features Wind noise reduction,
Sensitivity control

Connections

bulletConnector Type 1 x Hi-Speed USB,
1 x Composite video/audio output,
1 x HDMI output,
1 x Remote control

Software

bulletSoftware Loilo LoiLoScope (Trial),
Panasonic PHOTOfunSTUDIO 7.0 HD Edition,
SILKYPIX Developer Studio 3.1 SE,
Drivers & Utilities

System Requirements for PC Connection

bulletOperating System Support Microsoft Windows 98,
Microsoft Windows ME,
Microsoft Windows 2000,
Microsoft Windows XP,
Microsoft Windows Vista,
Microsoft Windows 7,
Apple Mac OS X 9.0 or later
bulletPeripheral Devices USB port,
CD-ROM drive

Miscellaneous

bulletIncluded Accessories Battery charger,
USB cable,
Lens cap,
Shoulder strap,
Dust cap,
Body cap,
Lens hood

Battery

bulletSupported Battery 1 x Li-ion rechargeable battery - 1010 mAh ( Included )

Memory / Storage

bulletMemory Card Slot SD card
bulletSupported Memory Cards SDHC Memory Card,
SD Memory Card,
SDXC Memory Card,
SDXC UHS-I Memory Card,
SDHC UHS-I Memory Card
bulletImage Storage Standard JPEG,
Fine RAW 4592 x 3448,
4576 x 3056,
4576 x 2576,
3232 x 2424,
3232 x 2160,
3232 x 1824,
2272 x 1704,
2272 x 1520,
1920 x 1080,
1824 x 1368,
1824 x 1216,
1824 x 1024,
3424 x 3424,
2416 x 2416,
1712 x 1712
bulletVideo Capture AVCHD - 1920 x 1080,
AVCHD - 1920 x 1080,
AVCHD - 1280 x 720,
AVCHD - 1280 x 720,
H.264 - 1920 x 1080,
H.264 - 1280 x 720,
H.264 - 640 x 480,
H.264 - 1920 x 1080,
H.264 - 1280 x 720,
H.264 - 640 x 480

Dimensions & Weight

bulletWidth 4.6 in
bulletDepth 1.5 in
bulletHeight 2.7 in
bulletWeight 9.6 oz

Environmental Parameters

bulletMin Operating Temperature 32 ?F
bulletMax Operating Temperature 104 ?F
