Olympus E620

This is a historical page from the old MaxMax.com website. Please use the current site at www.MaxMax.com.


IR Camera Flashes Sony Alpha A55 GoPro MotorSport HERO Canon G15 Canon G1X Canon SX50IS Canon S95 Canon 1000D (XS) Canon ELPH 110 Canon SX260 Canon 600D (T3i) Canon 650D (T4i) Canon 700D Canon 60D Canon 6D Canon 7D Canon 5D MKII Canon 5D MKIII Nikon D3200 Nikon D5100 Nikon D7100 Nikon D90 Nikon D300s Nikon D600 Nikon D800 Nikon D3x Lumix LX7 Olympus E620 Casio EX-FH25 Olympus Pen E-P2 Pentax K-5 Lumix GX1 Lumix GF3

Order

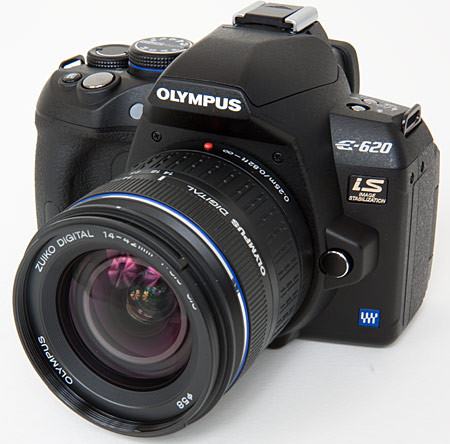

Olympus E620 12.3 MegaPixel Light Small DSLR

Models:

XNiteE620         UV+Visible+IR

XNiteE620IR     High-Red 590nm or IR Only 715nm

XNiteE620HR    HR (High Resolution / No AA Filter)

We can modify this camera to be UV+Visible+IR,  IR-Only-715nm or Visible Hot Rod.  An UV+Visible+IR camera will see UV,  Infrared and Visible light after modification.  An IR-Only camera will only see IR from 715nm through 1200nmm or 830nm through 1200nm depending on the glass installed inside the camera.

A Visible Hot-Rod camera will maximize the resolution and color depth of the camera at the expense of possible moire pattens.  Please see more about this conversion here.

  HR (High Res / Hot Rod) IR+Visible IR-Only
Model XNiteE620HR XNiteE620 XNiteE620IR
Camera can take normal visible pictures Yes Yes with CC1 filter No
Camera can take IR pictures No Yes with external IR filter Yes with no extra filters
Camera autofocus will work with IR pictures NA No Yes
Camera autoexposure will work with IR pictures NA No Yes.  May need Exp Comp Adj
User can see through lens when taking IR pictures No.  Camera is not IR sensitive No Yes.  Filter is internal.

Please note that the anti-dust system will continue to work on this camera unlike many other DSLR's.  Live View will work correctly.

Modification will void your warranty.

We can modify your E410, E420, E450, E510, E520 or E650 for a $550 fee + return shipping & handling ($20 for UPS ground insured within continental USA).

Specifications
Product Type
Type Single-lens reflex Live View digital camera with interchangeable lens system
Memory CompactFlash Type I/II (UDMA), Microdrive, xD-Picture Card
Sensor size 17.3 mm (H) x 13.0 mm (V)
Lens mount Four Thirds Mount

Image Pickup Unit
Product type High speed Live MOS Sensor
Total no. of pixels Approx. 13.1 million pixels
Filter array Primary color filter (RGB)
LPF Fixed type
Dust reduction Supersonic Wave Filter (dust reduction system for image sensor)
Aspect ratio 1.33 (4:3)
IR cut filter Hybrid type

ViewFinder
Product type Eye-level single-lens reflex viewfinder
Field of view Approx. 95%
Viewfinder magnification Approx. 0.96x (-1m-1, 50mm lens, infinity)
Eye point Approx. 18 mm (-1m-1) *from eyepiece lens
Diopter adjustment range -3.0 - +1m-1
Focusing screen Fixed (Neo Lumi-Micro Mat screen)
Eyepiece shutter Eye piece cover EPC-1 supplied
Eye cup Interchangeable type EP-5/6/7/8, EP-8 is supplied (Magnifier Eyecup ME-1 is available)
Optical preview (view finder) Available to set to Fn button
Live preview Available to set to Fn button
View finder information Aperture value, Shutter speed, Record mode, AF confirmation mark, Flash, WB, AE lock, Number of storable still images, Exposure compensation value, Metering mode, Battery warning, Exposure mode, AF frame (super impose), IS, Bracket, ISO value

Image Stabilizer
System Built in (Imager shift image stabilizer)
Mode 3 modes (2 dimensional activation, 1 dimensional activation in landscape frame to vertical direction moving, 1 dimensional activation in portrait frame to horizontal direction moving )
Manual Function input focal length 8, 10, 12, 16, 18, 24, 28, 30, 35, 40, 48, 50, 55, 65, 70, 75, 80, 85, 90, 100, 105, 120, 135, 150, 200, 210, 250, 300, 350, 400, 500, 600, 800, 1000
Effective compensation range Approx. 4EV steps (in maximum effect)
Shutter speed range 2 - 1/4000 sec.

LCD Monitor
Product type HyperCrystal? LCD (transmissive TFT color LCD)
Size 2.7 inches
Playback field of view 100%
Brightness control 15 levels
Total no. of pixels Approx. 230,000 dots
Color Balance 15 levels

Shutter
Product type Computerized focal-plane shutter
Shutter speed P(Ps), S, A, M mode: 60 - 1/4000 sec.
Bulb: Up to 30 min. selectable via menu (Default: eight mins.)
1/3, 1/2, or 1EV steps selectable.
Self-timer Operation time: 12 sec., 2 sec. (cancel available)
Remote cable release Available (with optional RM-UC1 Remote cable.)
Optical remote control Operation time: 2 sec., 0 sec., bulb control available (with optional RM-1 remote control)
Anti shock mode Available (1 to 30 sec. selectable)

Wireless flash control
Compatible external flash FL-50R, FL-36R
Control method Triggered and controlled by built-in flash light
Flash control modes TTL Auto (TTL pre-flash mode), Auto, Manual, FP TTL Auto, FP Manual.
Number of channels 4 channels
Group setting 3 groups
Input/Output
PC interface USB 2.0 High Speed for storage and camera control (MTP mode is available)
USB/Video connector Dedicated multi-connector (Video: NTSC/PAL selectable, Optional Remote cable RM-UC1 is available)
Flash attachment Hot shoe
DC-in No
Power Source
Battery BLS-1 Li-ion battery (included)
Sleep mode Available (1, 3, 5, 10 min., off selectable)
No. of recordable pictures Approx. 500 shots (optical viewfinder)
(with 50% flash light) (with BLS-1 under CIPA testing standard)
Power battery holde HLD-5 compatible

Dimension and Weight
Weight 1.04 lbs. (body only)
Dimensions 5.11" (W) x 3.7" (H) x 2.36" (D) (excluding protrusions)
Note: All the specifications above are based on Canon's testing standards.
The camera's specifications and exterior are subject to change without notice.
