Raspberry Pi Global Shutter 1.6MP

Raspberry Pi Global Shutter 1.6 Megapixel

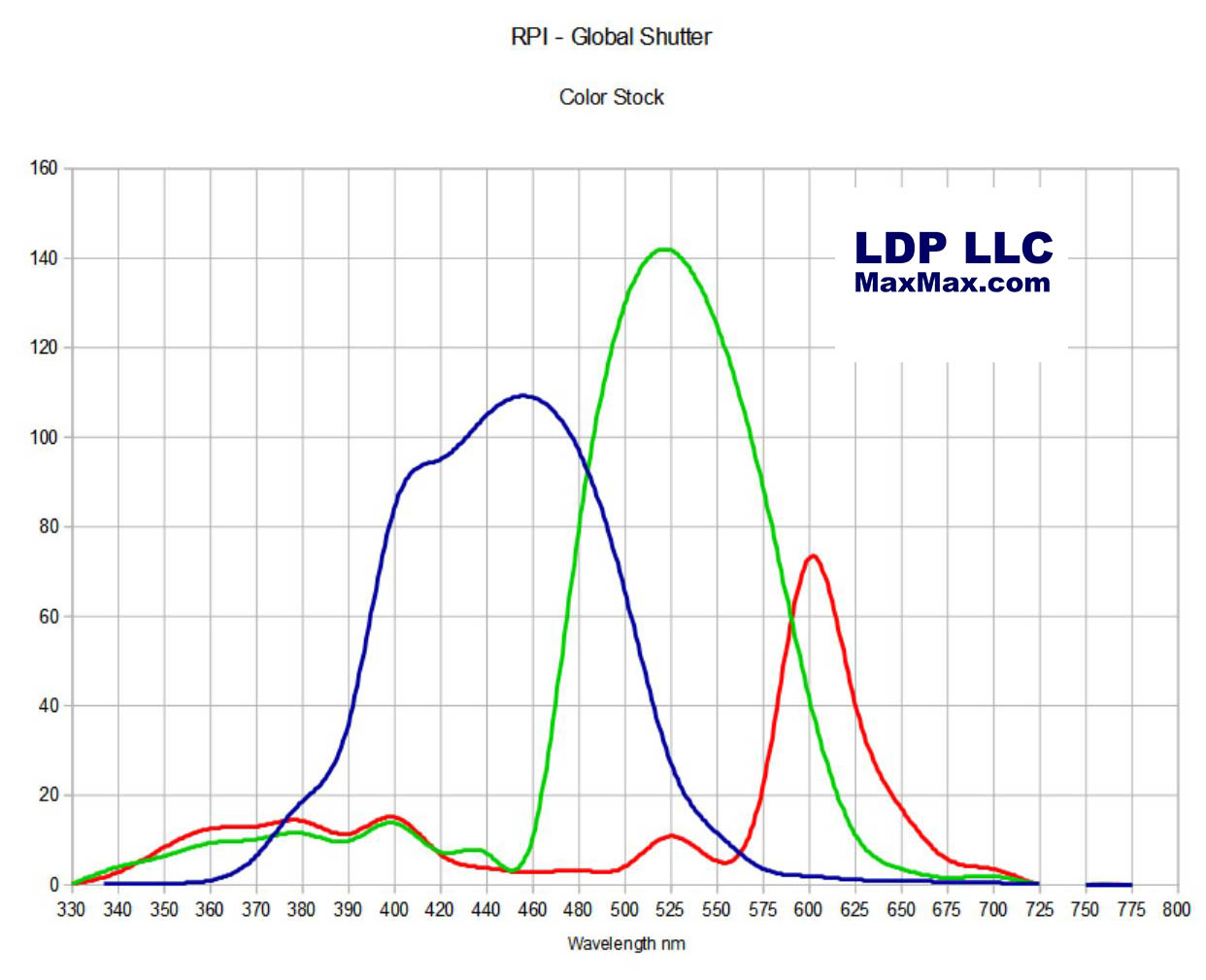

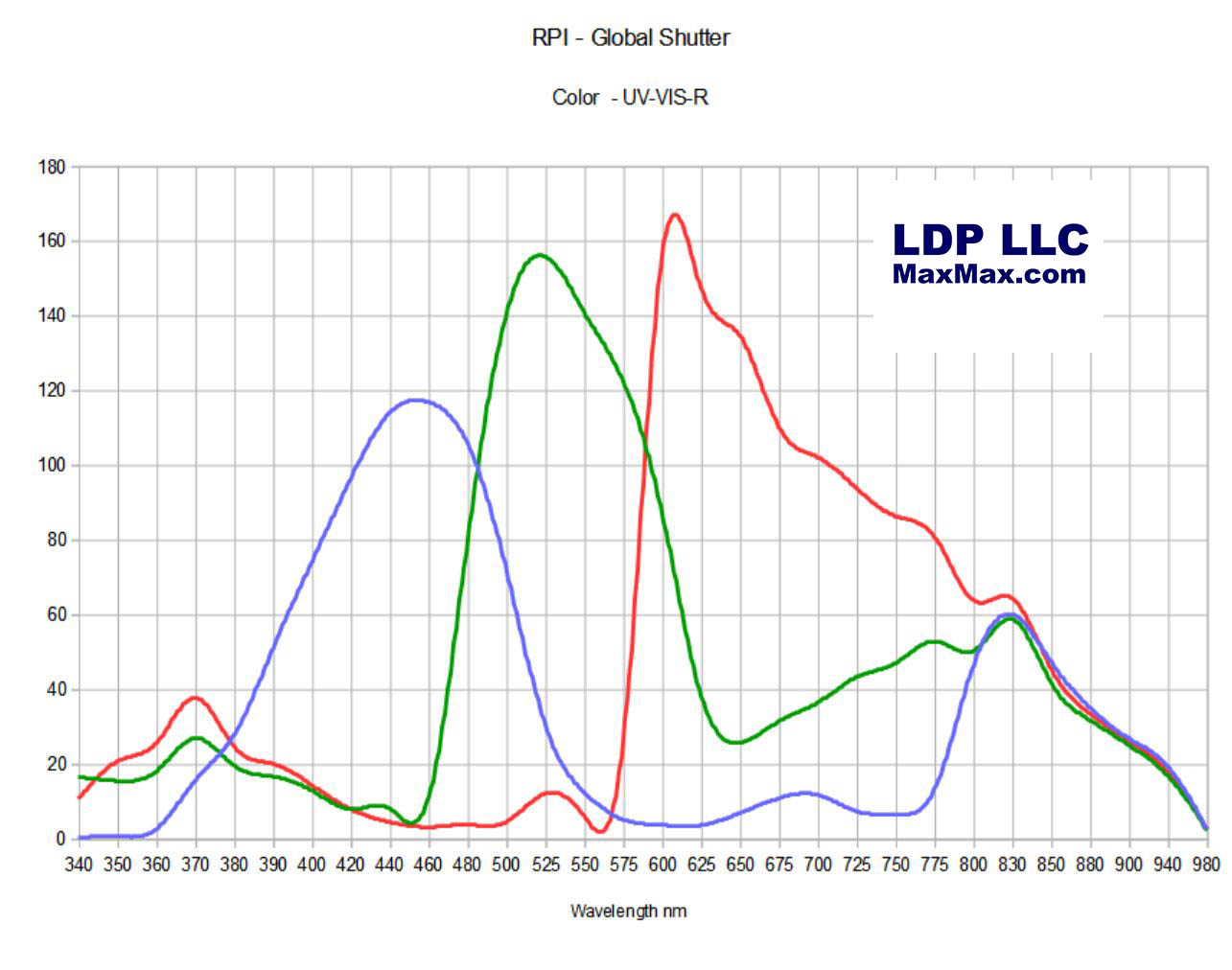

  • Color Full Spectrum UV-VIS-IR with sensitivity to 340nm - RaspPi1.6GS-FS-Color

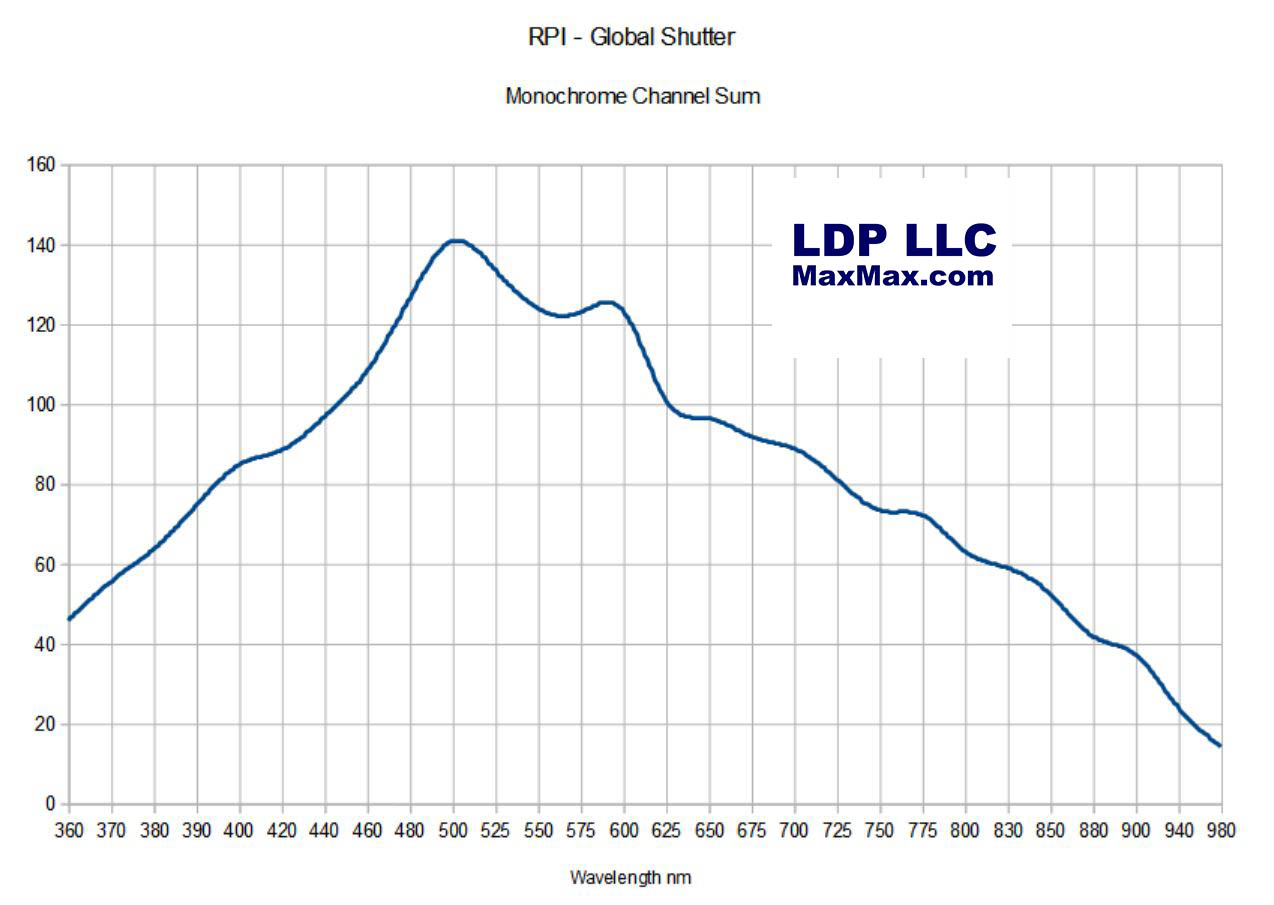

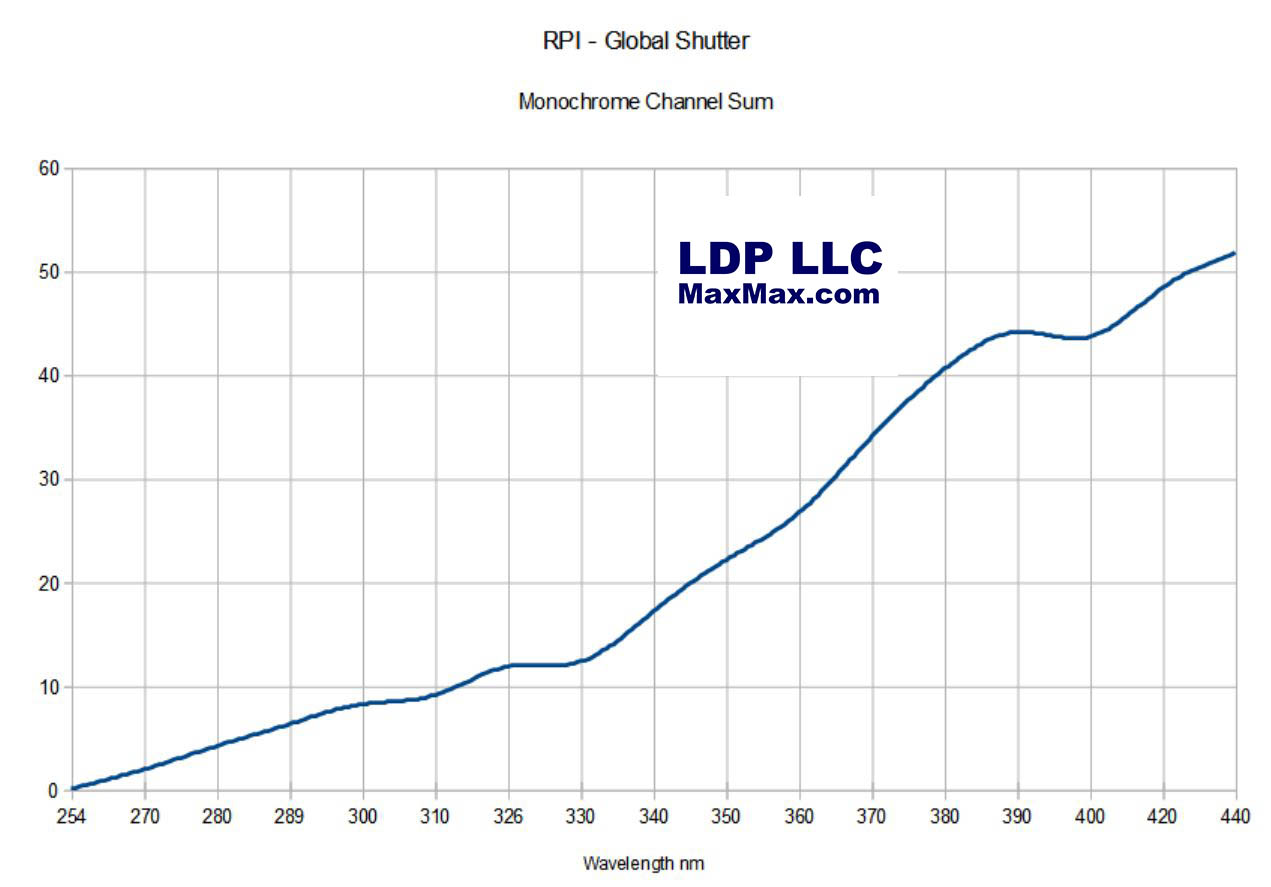

  • Monochrome Full Spectrum UV-VIS-IR with sensitivity below 250nm - RaspPi1.6GS-FS-Mono

You can jump to this item in our online store by clicking here.





A camera for motion photography and machine vision

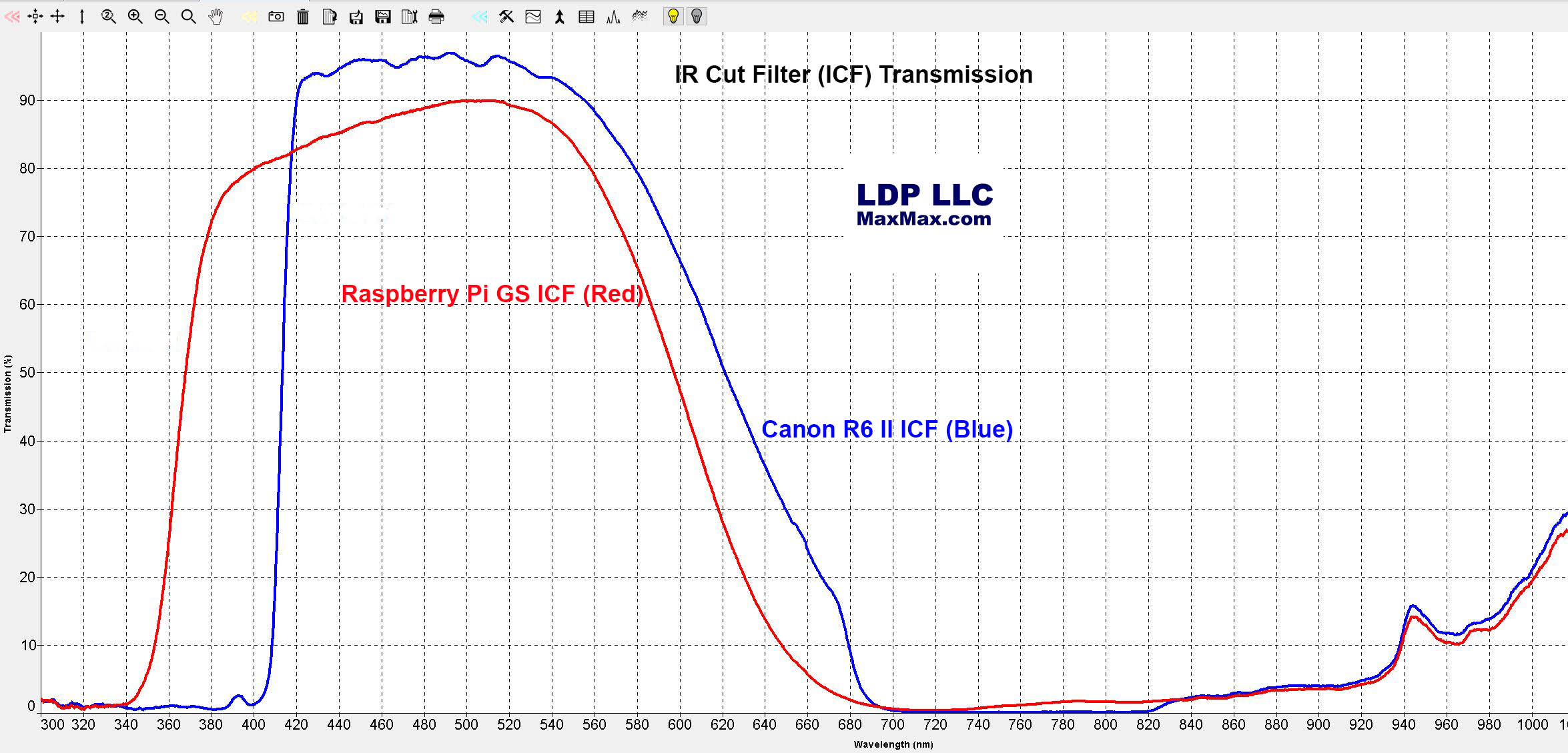

The Raspberry Pi Global Shutter Camera is designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses. The CGL 6 mm CS-mount and 16 mm C-mount lenses are examples of third-party products that are compatible with the Global Shutter Camera.  The camera also has an adjustable back-focus adjustment so that you dial in focus for a particular lens.  The plastic lens housing module has an ICF.  You can easily remove the housing from the PCB and push the ICF out of the housing or buy the camera from us with no ICF.

The Raspberry Pi Global Shutter Camera is a specialized 1.6-megapixel camera that is able to capture rapid motion without introducing artifacts typical of rolling shutter cameras. It is ideally suited to fast motion photography and to machine vision applications, where even small amounts of distortion can seriously degrade inference performance.

With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30μs with adequate lighting), an advantage for high-speed photography.

It features a 1.6MP Sony IMX296 sensor, and it has the same C/CS-mount lens assembly as the Raspberry Pi High Quality Camera, for compatibility with the same broad variety of lenses. In common with other global shutter sensors, the IMX296 has a lower resolution than similarly sized rolling shutter sensors; a low pixel count is appropriate for machine vision applications, where high-resolution images are challenging to process in real time. The Global Shutter Camera's lower resolution means that with appropriate lens magnification, an image suitable for processing by a machine vision model can be captured natively.

The Raspberry Pi Global Shutter Camera includes a C- to CS-mount adapter, a screwdriver, and a 150mm ribbon cable, as well as a removable plastic back cover for protection. It is compatible with any Raspberry Pi computer that has a CSI connector.

You can also use our Llewellyn Optics M12 Fused Silica lens that transmits light below 200nm (77% @200nm) using a C-Mount to M12 adapter with no vignetting.

  • Sony IMX296LQR-C : 1456 (H) x 1098 (V) 1.58 M pixels 3.45 x 3.45 μm
  • Output: RAW 10
  • Back focus: Adjustable (12.5 mm–22.4 mm)
  • Lens standards: C-mount, CS-mount (C-CS adapter included)
  • IR cut filter: None unless stock
  • Ribbon cable length: 200 mm
  • Tripod mount: 1/4”-20









Rasperberry Pi with lens attached.  NOTE:  No lens included with the camera.



Sony IMX296LQR-C Features:

  • CMOS active pixel type dots ◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Global shutter function
  • Input frequency 37.125 MHz / 74.25 MHz / 54 MHz
  • Number of recommended recording pixels: 1440 (H) × 1080 (V) approx. 1.55 M pixels Readout mode All-pixel scan mode ROI mode Vertical / Horizontal‐Normal / Inverted readout mode
  • Readout rate Maximum frame rate in All-pixel scan mode: 10 bit: 60.3 frame/s ◆Variable-speed shutter function (resolution 1 H units)
  • 10-bit A/D converter ◆CDS / PGA function 0 dB to 24 dB: Analog Gain (0.1 dB step) 24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step)
  • I/O interface CSI-2 serial data output (1 Lane) RAW10 output ◆Recommended lens F number: 2.8 or more (Close side)
  • Recommended exit pupil distance: –100 mm to –∞
