IR Absorbing Paint / Ink
Our IRP1 IR Absorbing Paint / Ink is an excellent choice for marking a light colored surface with a lasting mark that is near invisible to the human eye. The IRP1 has a Blue Wool Index of 7 which means it is extremely stable to fading in sunlight; it is expected to last over 100 years exposed to normal sunlight. If you want to make the ink virtually invisible, you can match the slight green tint of the ink to the object being painted or dilute the ink with our PT Extender enough to make the ink completely invisible yet. You can use our IRP1 Extender to dilute the IRP1 ink as necessary.
]
Blue Wool Index
| Blue Wool | Relative Sun | Years | Comments |
| 8 | 900 | 100 | I. Excellent lightfastness. Blue wool 7-8. The pigment will remain unchanged for more than 100 years of light exposure with proper mounting and display. (Suitable for artistic use.) |
| 7 | 300 | 100 | |
| 6 | 100 | 50-100 | II. Very good lightfastness. Blue wool 6. The pigment will remain unchanged for 50 to 100 years of light exposure with proper mounting and display. (Suitable for artistic use.) |
| 5 | 32 | 15-50 | III. Fair lightfastness (Impermanent). Blue wool 4-5. The pigment will remain unchanged for 15 to 50 years with proper mounting and display. ("May be satisfactory when used full strength or with extra protection from exposure to light.")) |
| 4 | 10 | 15-50 | |
| 3 | 3.6 | 2-15 | IV. Poor lightfastness (Fugitive). Blue wool 2-3. The pigment begins to fade in 2 to 15 years, even with proper mounting and display. (Not suitable for artistic use.) |
| 2 | 1.3 | 2-15 | |
| 1 | 0.4 | <2 | V. Very poor lightfastness (Fugitive). Blue wool 1. The pigment begins to fade in 2 years or less of light exposure, even with proper mounting and display. (Not suitable for artistic use.) |

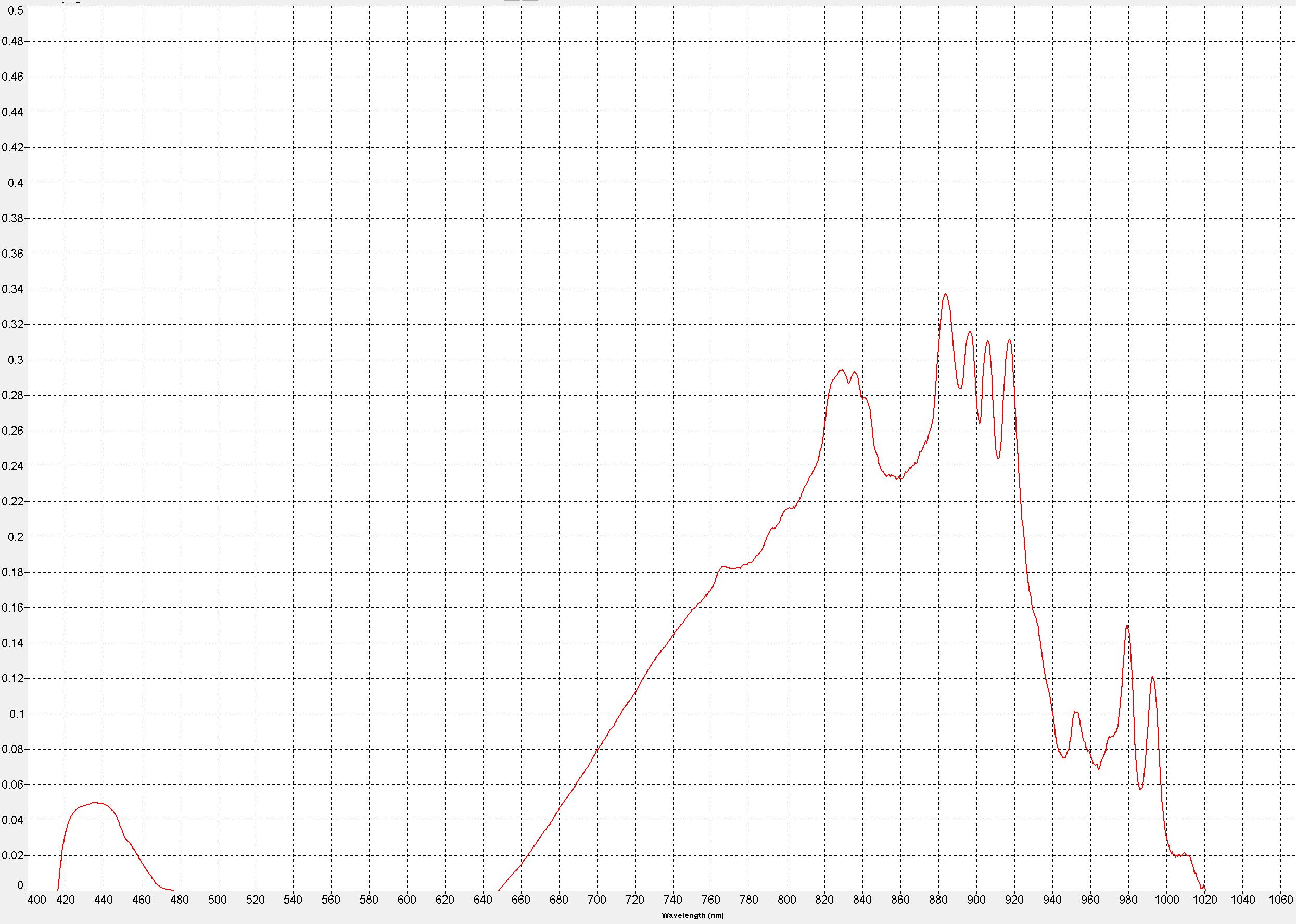

IRP1 Absorption Spectrum
IRP1 Ink uses our IRP1 pigment in a suspension which has excellent adhesion or heat resistance. If you need to dilute our IRP1 Ink, you can use our PT-Extender.
To visualize the IRP1 Ink, we offer customized camera and light sources so that you can buy everything you need in one spot easily.

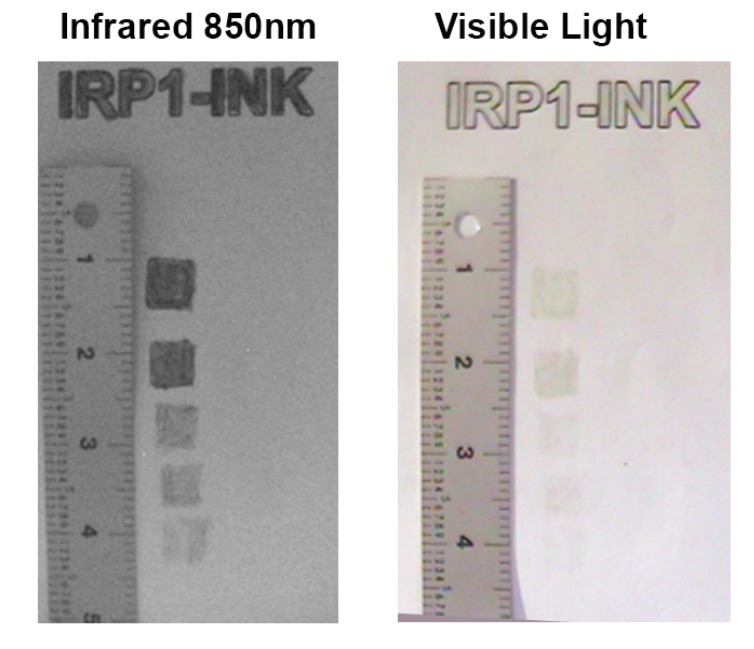

Using a camera with a FWHM +/- 10nm 850nm filter and illuminating the painted object with an 850nm IR light source, you can visualize the IRP1 Ink.
For viewing the IRP1 Ink, you can use these cameras. You can also use other cameras if the camera is setup for full spectrum or IR only with the correct filters.
XNiteUSB2S-850: USB 2.0 camera with automatic loading drivers for Windows, Mac and Linux. 2 Megapixel camera fitted with a 850nm +/- 10nm infrared bandpass filter.
XNiteUSB8-850: USB 2.0 camera with automatic loading drivers for Windows, Mac and Linux. 8 Megapixel camera fitted with a 850nm +/- 10nm infrared bandpass filter.
XNiteUSB16-850: USB 2.0 camera with automatic loading drivers for Windows, Mac and Linux. 16 Megapixel camera fitted with a 850nm +/- 10nm infrared bandpass filter.
For illuminating inside with a handheld type flashlight, you can use our XNiteFLashF-850 lights.
XNiteFlashF Series Flashlight with 850nm 1 Watt LED.
Works with Rechargeable 18650 Battery
Zooming Focus Head
Collimating Lens
High Quality Heavy Duty Black Aluminum Housing
Add to cart
XNiteFlashF Series Flashlight with 850nm 9 Watt LED.
Works with Rechargeable 18650 Battery
Zooming Focus Head
Collimating Lens
High Quality Heavy Duty Black Aluminum Housing
Add to cart
For illuminating over a large area and outdoors where you need weather sealing, you can use our LIR850 outdoor illuminators.
LIR850-25: Professional 150 meter long range 850nm 25 degree beam weather sealed illuminator. Runs on 12 VDC or 24 VAC. Comes with a 100-240VAC switching power supply.
LIR850-70: Professional 60 meter long range 850nm 70 degree beam weather sealed illuminator. Runs on 12 VDC or 24 VAC. Comes with a 100-240VAC switching power supply.
To dilute the IRP1 ink, you can use our PT Extender.
