ProIRcam1

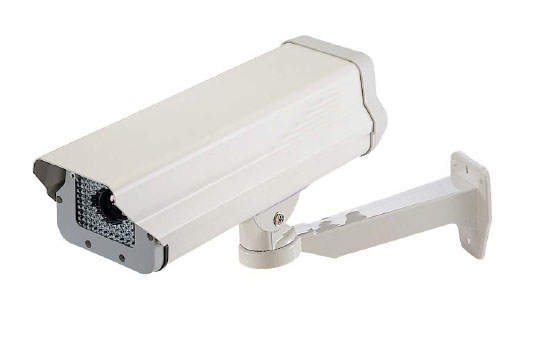

Model: ProIRCam1
- All Weather Metal Housing (IP65)
- 84PCs IR LED
- 1/3" Sony Color High Resolution CCD Camera
- Built-in 6-15mm Vari-focal Lens
- IR Effective Distance is 55m (Outdoor)
- Heated and Ventilated Housing
- Variable Zoom and Focus
- Lockable Housing
|
Model |
ProIRCam1 |
|
Peak Wave Length |
850nm |
|
Projecting Angle |
25° |
|
Projecting Distance |
50 Meters |
|
On/off Control |
CDS/10Lux |
|
Power Supply |
DC12V |
|
Power Consumption |
1.3A(DC12V) |
|
Camera Type |
Color / Monochrome Automatic Switching |
|
Signal System |
NTSC |
|
Pickup Device |
1/3” Sony High Res CCD |
|
Picture Elements |
811H x 508V |
|
Min Illuminator |
0-Lux with IR LED’s On |
|
Vertical Frequency |
60Hz |
|
Horizontal Frequency |
15.734Khz |
|
Clock Frequency |
28.636Mhz |
|
Scanning System |
2:1 Interlaced |
|
S/N Ratio |
>52dB |
|
Electronic Shutter |
1/60-1/100,000 Sec |
|
Lens |
8mm CS Mount |
|
White Balance |
Switchable |
|
Backlight Compensation |
Switchable |
|
Auto Gain Control |
Switchable |
|
Gamma |
0.45 |
|
Video Output |
1V p-p, 75 Ohm |
|

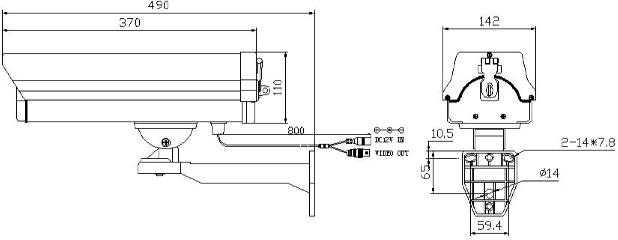

Dimensions |
370x142x110mm |
|
Weight |
1740g |
|
Color |
Beige |
|
Storage Temperature |
-30 to +60 DegC |
|
Operating Temperature |
-10 to +40 DegC |
Accessories Included
- Camera
- Switching Power Supply
- User Manual
- Wall Bracket
- Wall Bracket Screws
- Concrete Anchors
