VUV Phosphors

VUV Phosphors

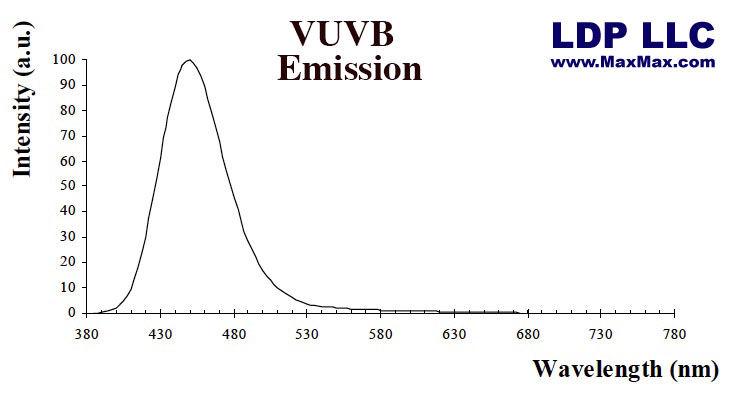

VUVB - Blue emitting VUV Phosphor

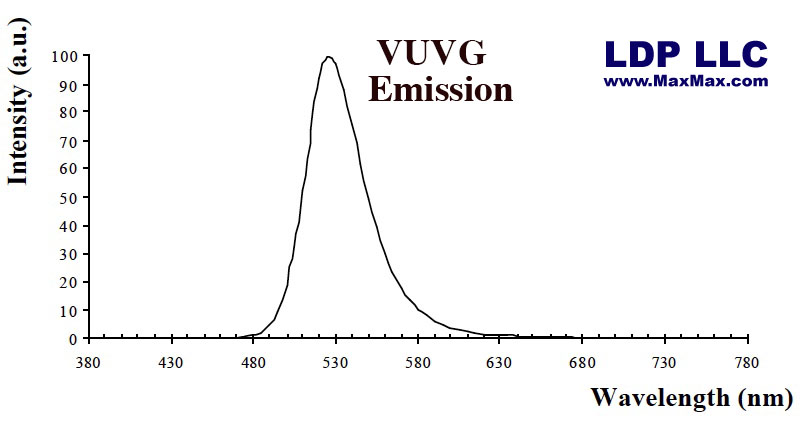

VUVG - Green emitting VUV Phosphor

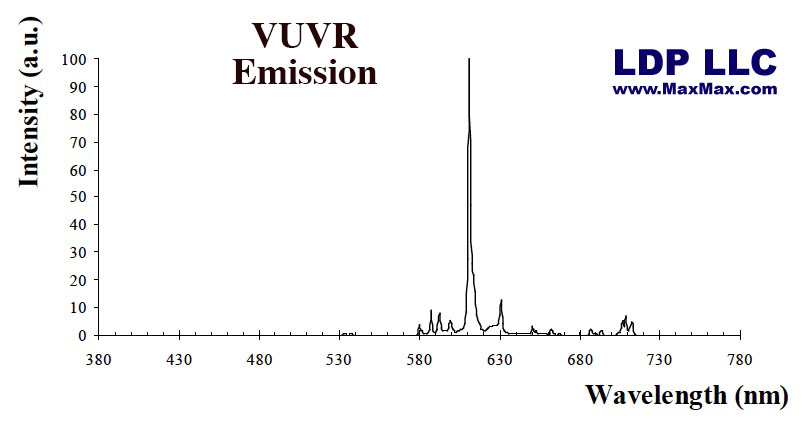

VUVR - Red emitting VUV Phosphor

You can jump to these phosphors in our online store by clicking here.

VUV phosphors are phosphors designed to work in the ultralow UV wavelengths for 20nm to 120nm (10eV to 120eV).  Usually, these phosphors are used in a vacuum environment because many atmospheres will block the short wave UV light.  These phosphors will work in ultra high vacuum environments <10^-8 mbar.

Material Density: 3.7 g/ml

Size Distribution (un): D5 1.9, D25 3.0, D50 4.0, D75 5.3, D95 7.4

Peak Wavelength: 450nm

CIR Color Coordinates: x=0.152, y=0.064

Material Density: 4.1 g/ml

Size Distribution (un): D5 2.0, D25 2.7, D50 3.5, D75 4.6, D95 6.2

Peak Wavelength: 525nm

CIR Color Coordinates: x=0.235, y=0.706

Material Density: 5.0 g/ml

Size Distribution (un): D5 2.0, D25 2.6, D50 3.5, D75 4.2, D95 5.7

Peak Wavelength: 611nm

CIR Color Coordinates: x=0.651, y=0.345

 You can jump to these phosphors in our online store by clicking here.
