USB Industrial

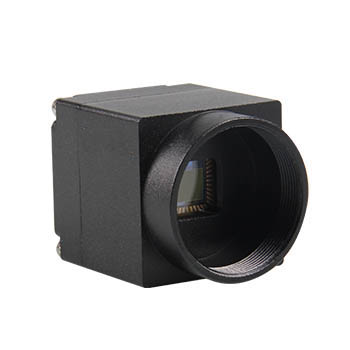

USB Industrial Machine Vision Cameras

You can jump to the USB Industrial area of our online store by clicking here.

This camera includes Windows drivers and software for viewing and capturing pictures.


Pixels 5.0 MP Color, Monochrome, UV-Only, Remote Sensing

Sensor Size 5.7mm(H)x4.28mm(V)  1/2.5"
Pixel Size 2.2μm x 2.2μm
Resolution/
Frame Rate
2592 x 1944(full resolution):6FPS
2048 x 1536(ROI):9FPS
1920 x 1080(ROI):13.4FPS
1280 x 960(SUM):15FPS
1280 x 960(BIN):15FPS
640 x 480(SUM):23.7FPS
640 x 480(BIN):23.7FPS
Any Area(ROI)
Spectral
Response
380nm ~ 650nm (with infrared filter) / 300nm - 1100nm no ICF
Exposure
 Time
86μs ~ 3000ms
Sensitivity 1.4V/Lux-sec
Shutter Electronic Rolling Shutter
Image Data Format 8bit RAW format
Operating Mode Continuous output
Scanning Mode Progressive Scan
Exposure
Control
Manual / Auto / Area
White Balance Manual / One-Time / Auto / Area
Image Processing GAMMA / Contrast / Black Level / Noise Reduction / 3D Noise Reduction / Sharpness/ saturation
Picture Format JPEG / BMP / PNG / RAW
Product ID User Defined
Software Interface  DirectShow / TWAIN
Operating System Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit)
Data Interface USB2.0 (B Type interface)
Lens Mount C/CS Mount
Dimension 45mm x 48mm x 36.4mm(Exclude lens mount)
PCB Size 39mm x 39mm  (2 pcs board)
Weight Approx. 112g (with case and fixed blocks)
Rotated Voltage USB5V power supply(No external power supply circuit)
Rated power < 1.5W
 Temperature operation :0~50℃ / storage:-20℃~60℃
Humidity Working :10%~90%RH(No condensation) / Storage:10%~60%RH
LED Pilot Light Lighting once plug/ flashing when working



Software Overview

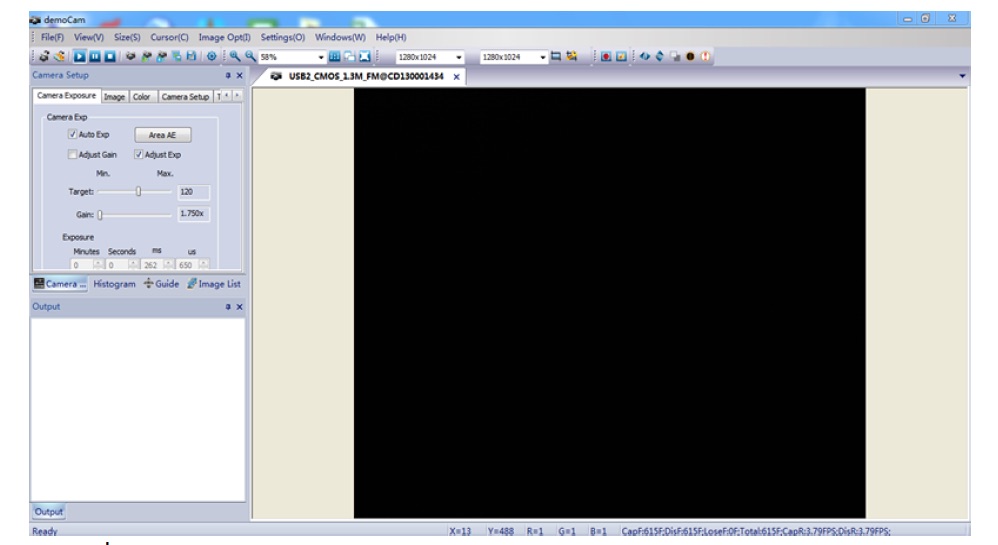

Main Screen

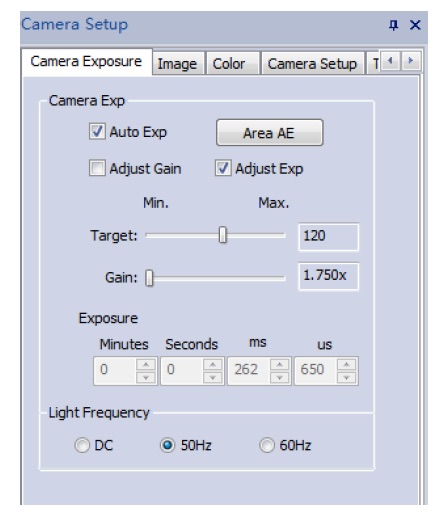

Camera Exposure Setup

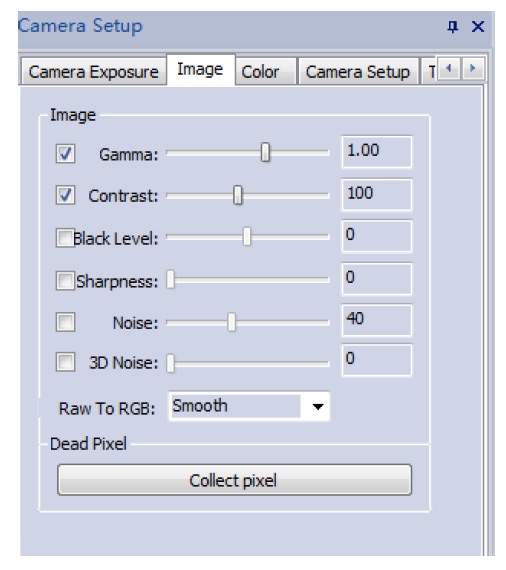

Camera Image Setup

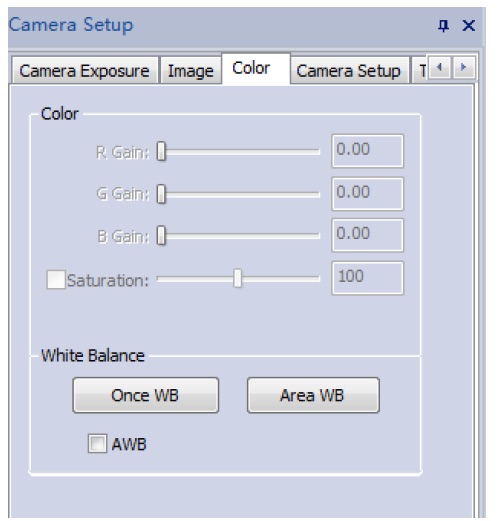

Camera Color Setup

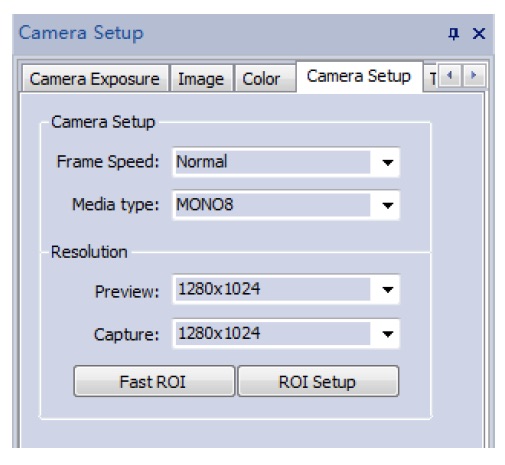

Camera Frame Rate and Resolution Setup

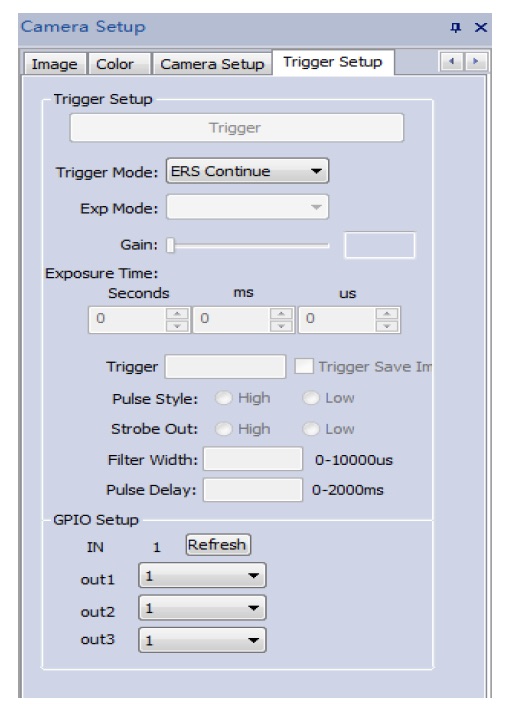

Camera Trigger Setup

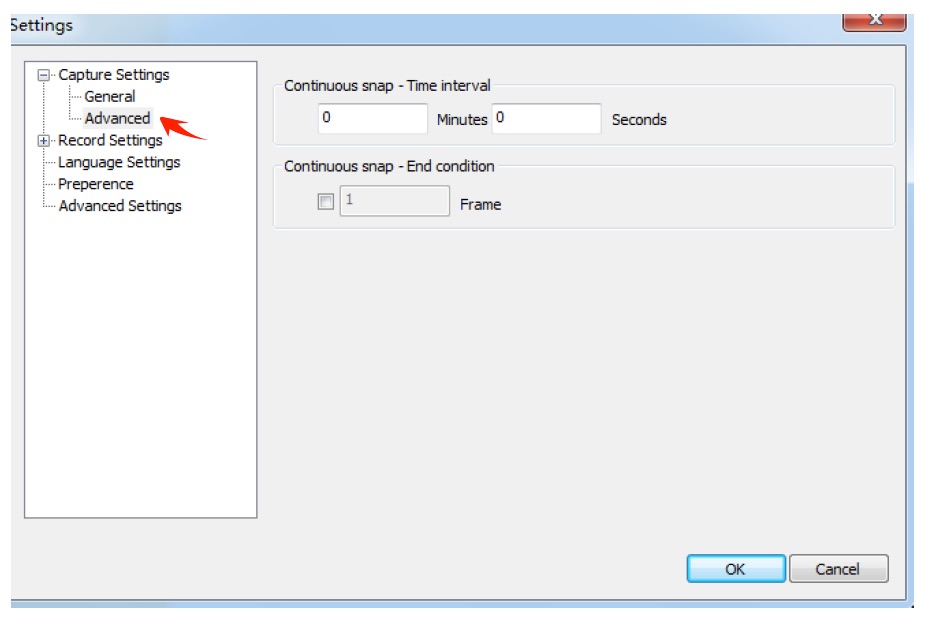

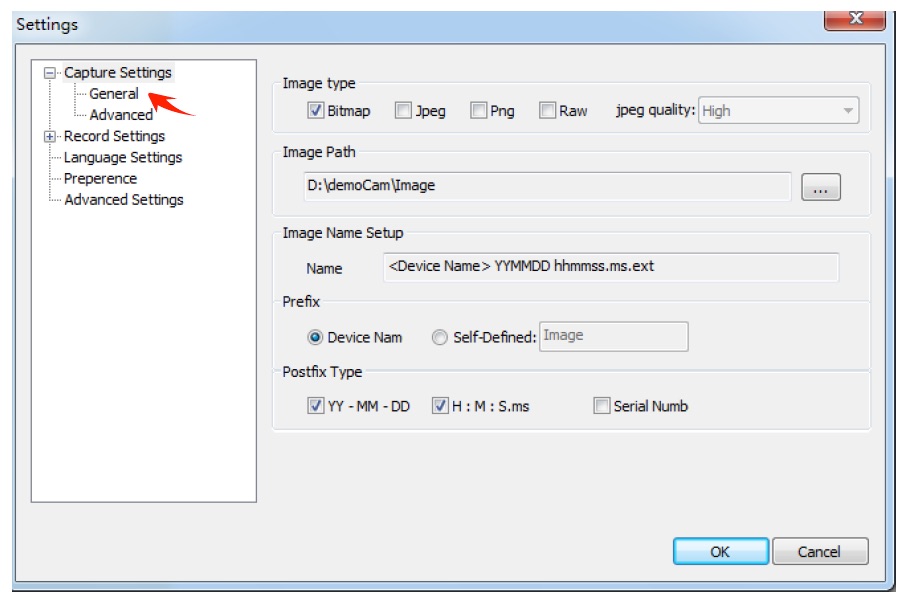

Image Capture Settings



Camera Trigger Setup

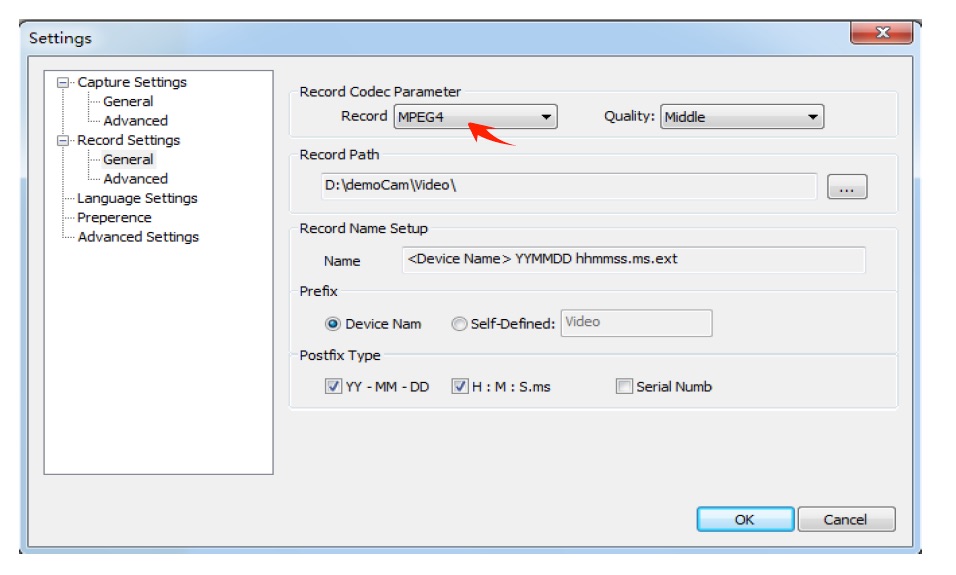

Camera Video Encode Setup
