USB 16MP Mono UV

XNiteUSB16M-MNCUVL

USB 16MP Monochrome Debayered Camera No Coverglass Fused Silica Lens with UV Shortpass and IR Blocking Filters

You can jump to this item in our webstore by clicking here.

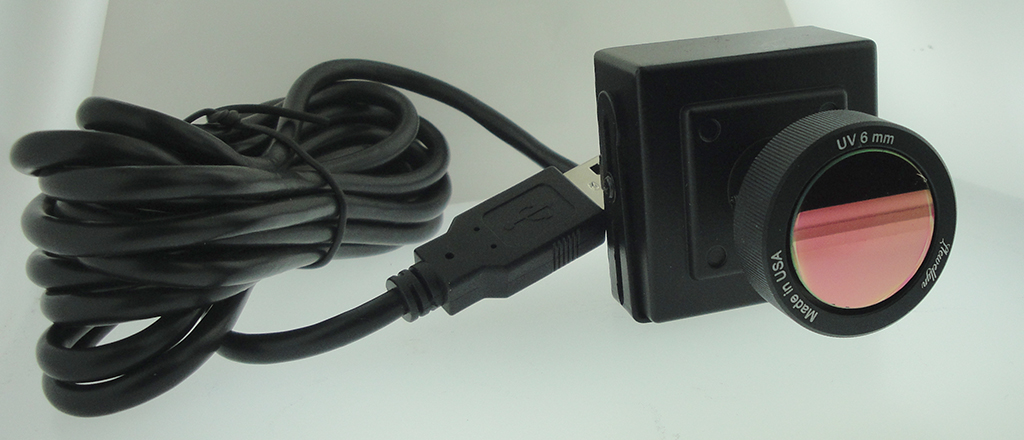

For those wanting a high quality, low cost simple solution for UV imaging, we are offering a completed UV camera and lens setup.  This is a much higher performance than our low cost USB 2MP version because this is a true monochrome camera, the sensor has no coverglass, microlenses or Color Filter Array (CFA), has a fused silica (similar to quartz) lens and stacked XNite330C (UV Shortpass) and XNiteBP1 (IR Blocking) filters.

Specifications:

• USB 16 Megapixel Camera with the coverglass, microlenses and CFA removed exposing the bare photodiodes.  The coverglass, microlenses and CFA all block or reduce UV transmission.
• USB camera shows up as a video device on most PC's, Mac's and Linux devices without any special drivers needed.  Any software that can see something like a webcams should be able to see this camera.
• Llewellyn Optics fused silica 6mm F/2.8 lens can pass UV light to below 200nm.
• Combined XNite330C UV shortpass filter and XNiteBP1 IR blocking filter are an excellent combination to restrict camera to 320nm-380nm.
• Video Output includes 1080P and up to 4656 x 3496 Resolution
• Focus can be adjusted by turning front lens to focus anywhere from less than 1 inch to infinity
