M12-6MM-UV

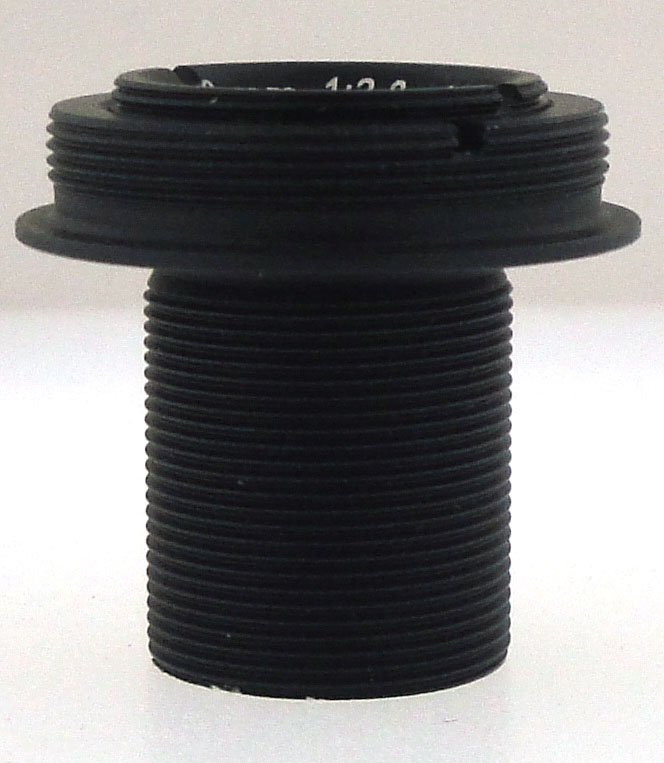

Llewellyn Optics M12 6mm UV Lens

You can jump to this section in our online store by clicking here

Apertures: F2.8, F5.6, F11.3

Fused Silica Lens Elements

Magnesium Fluoride (MgF2) coated lens elements optimized for 300nm L/4

Transmission: 80% @ 200nm, 87% @ 300nm, 84% @ 400nm

Two Filter 25mm Filter Adapters: One with 25mm x 5mm retaining ring adapter, One with quick change 25mm drop in filters

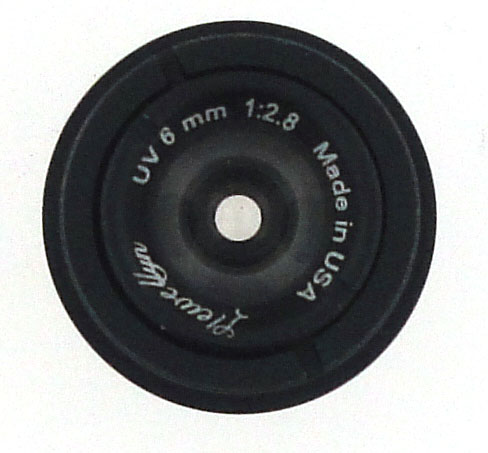

Top View

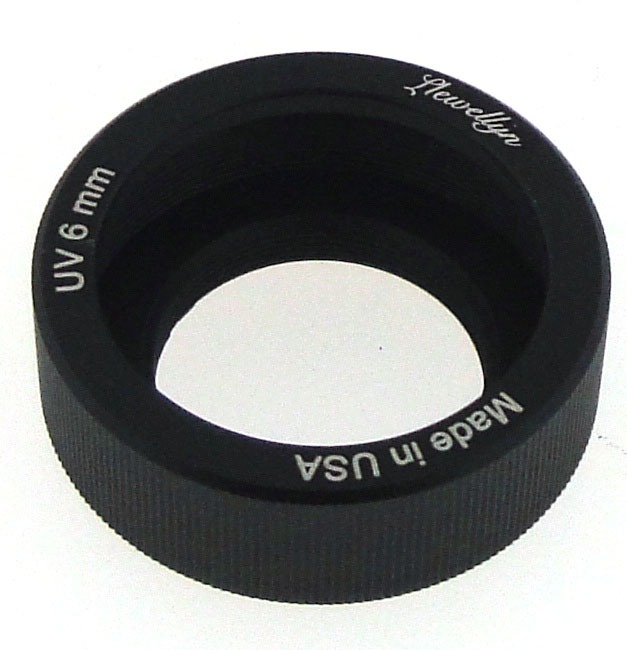

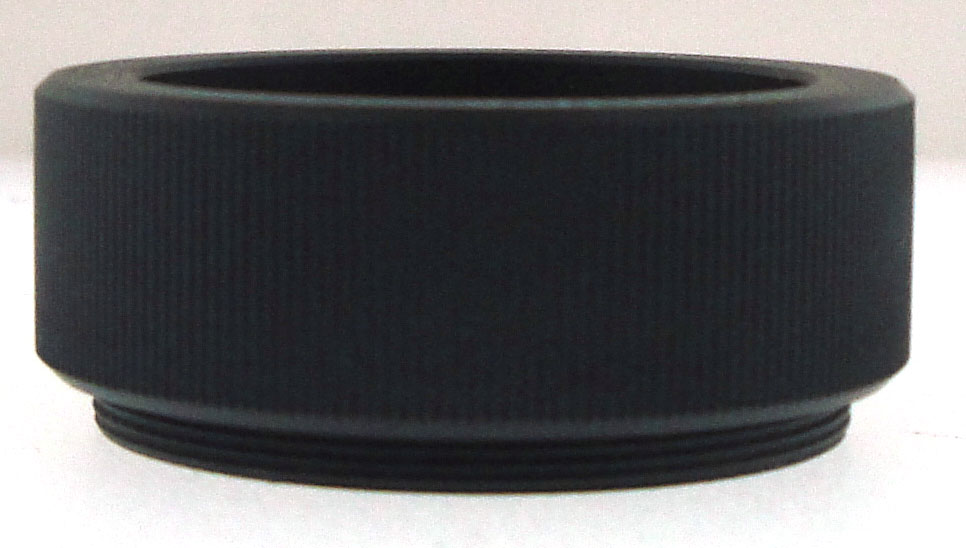

Quick Change 25mm Filter Adapter

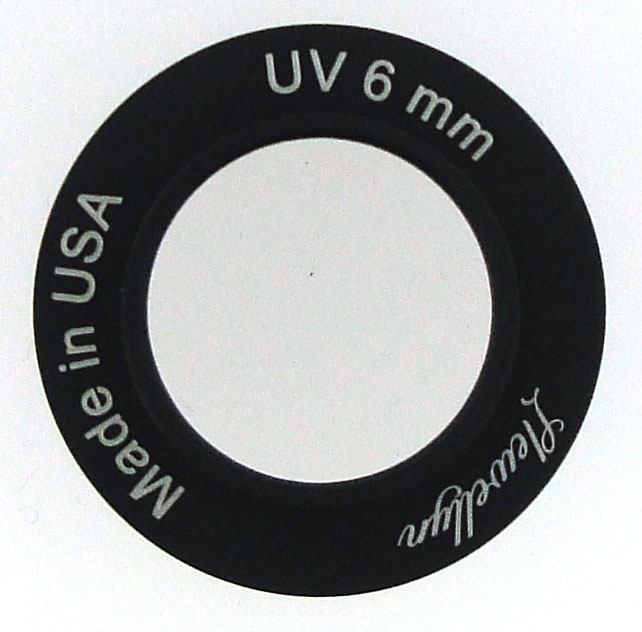

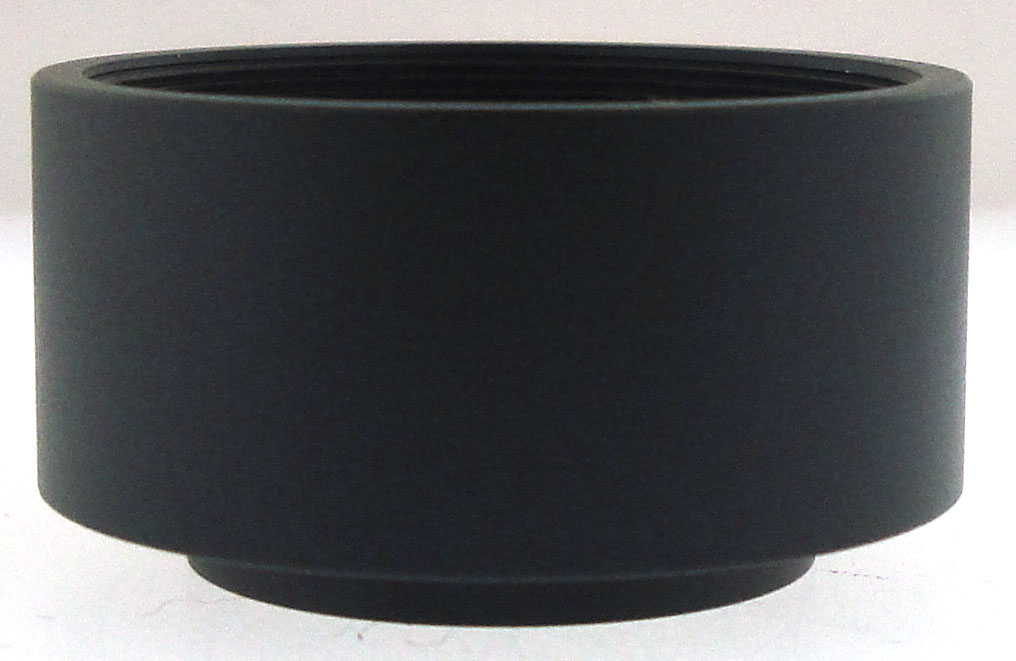

25mm Filter Adapter Using Screw In Retaining Ring

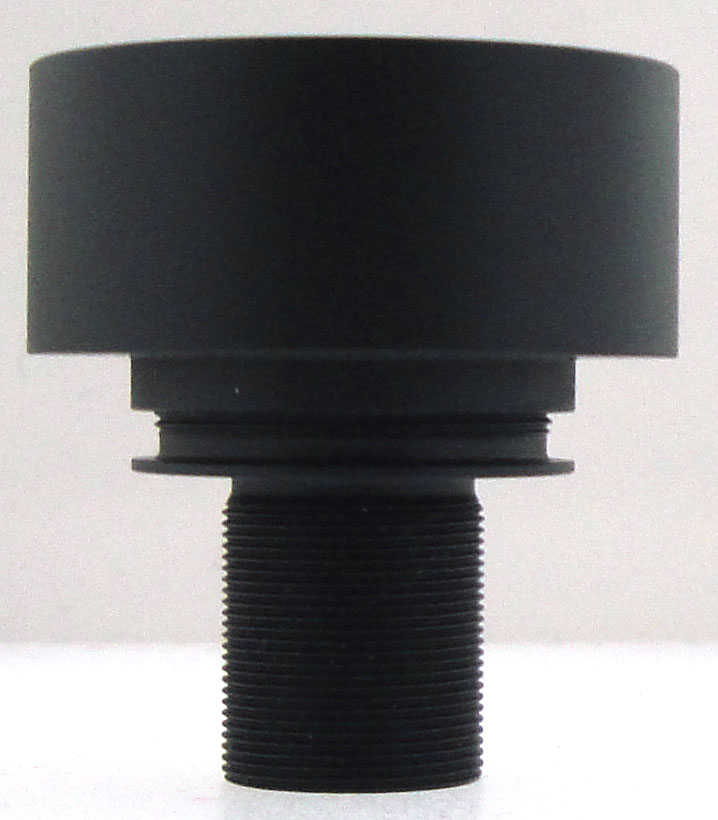

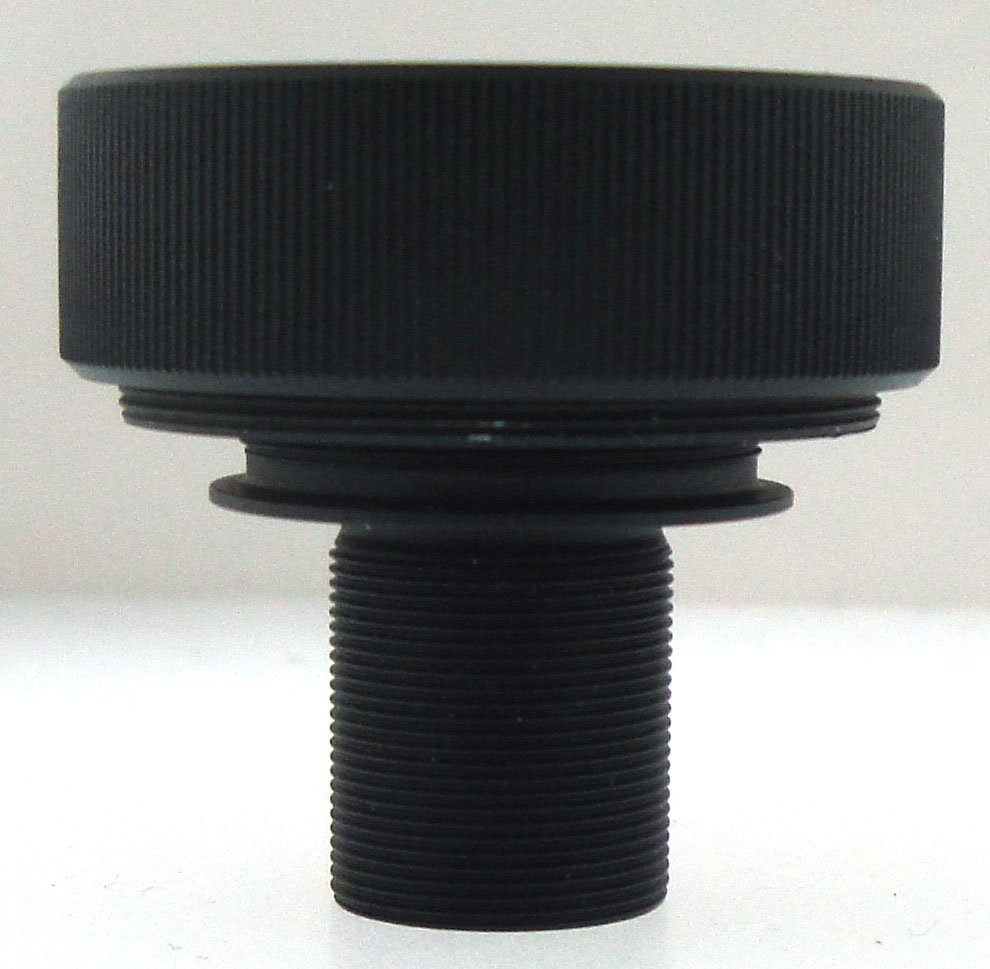

Quick Change Filter Adapter Ring Installed On Lens

Retaining Ring Filter Adapter Installed On Lens

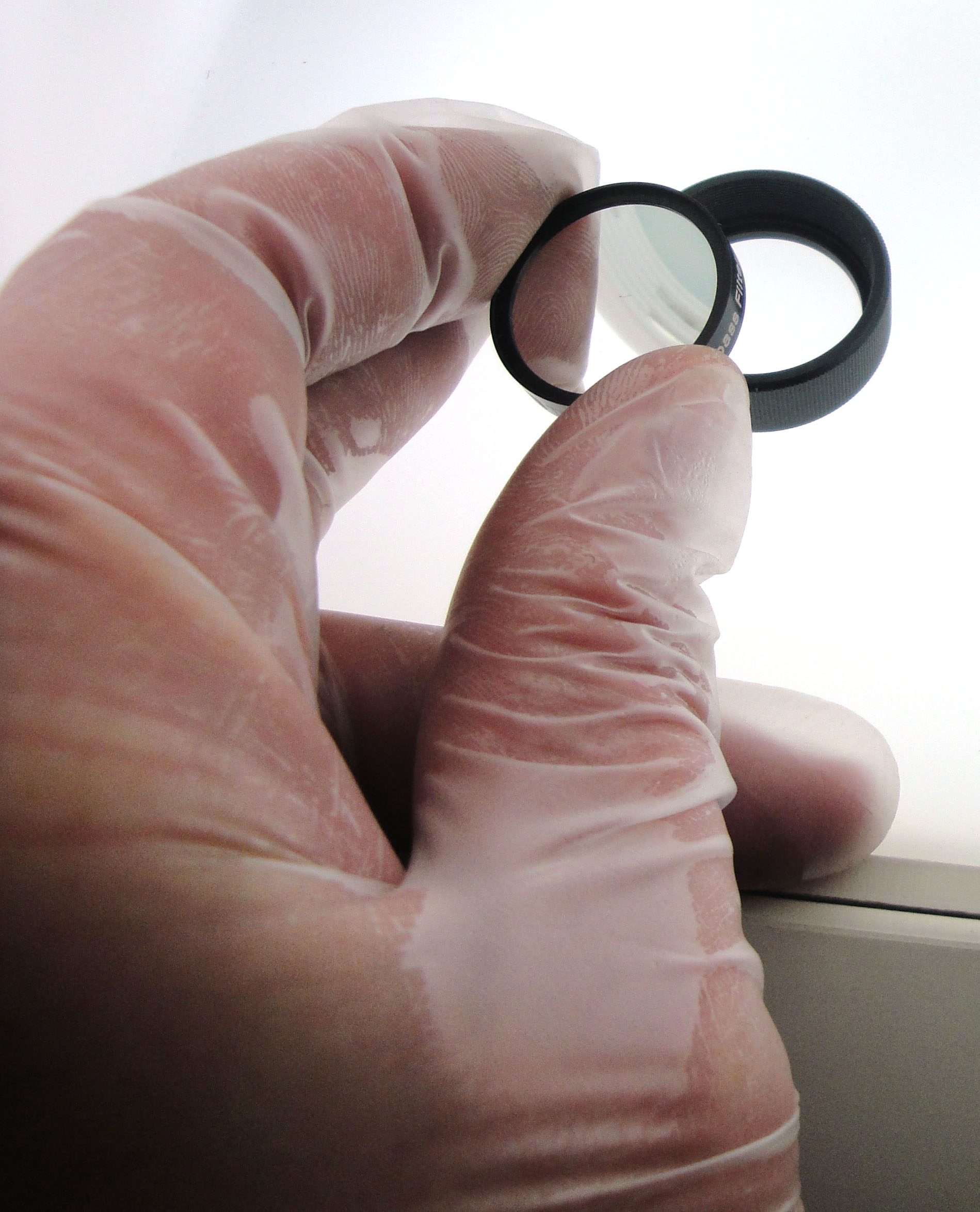

Using the quick change filter adapter.  First, drop a standard 25mm diameter x 5mm thick unmounted filter into apapter.

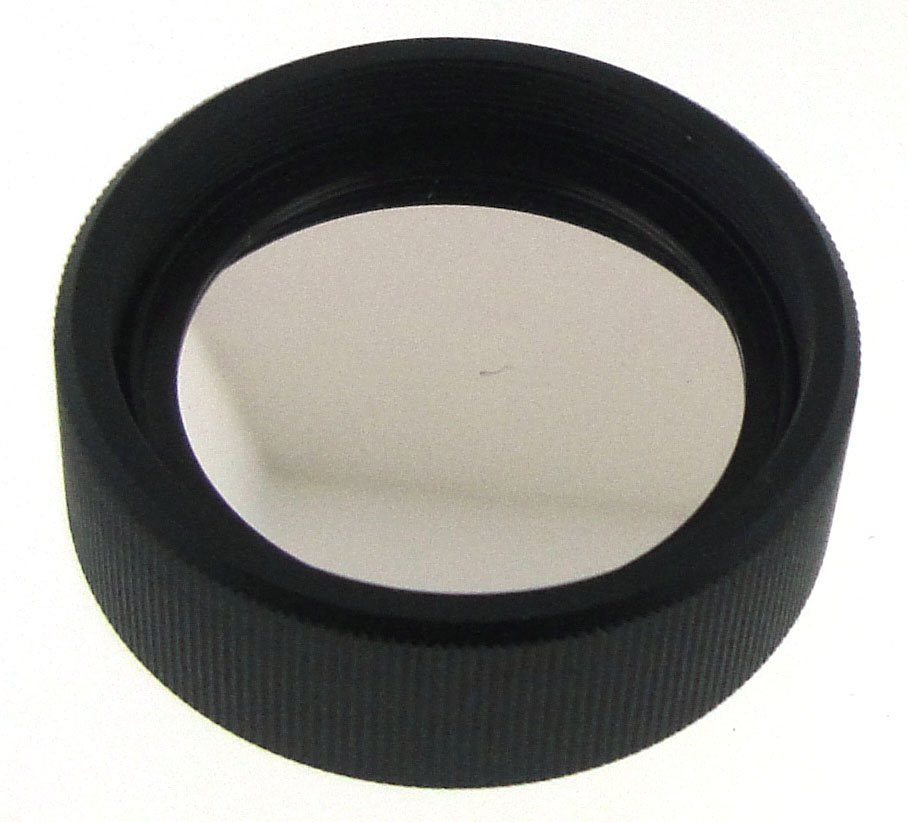

Filter sitting in quick change adapter ring.

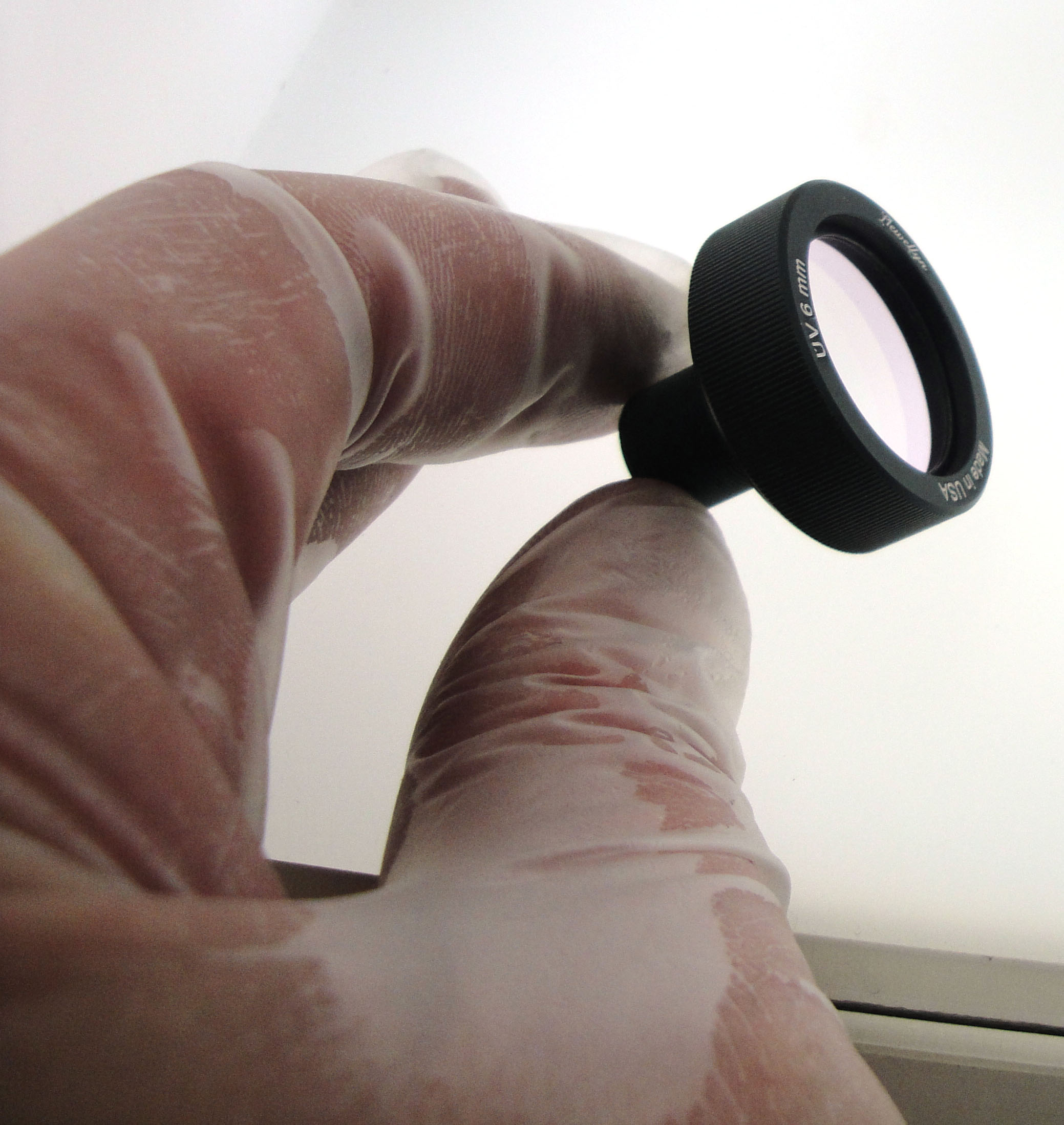

Screw the quick change adapter onto the lens.  Done!
