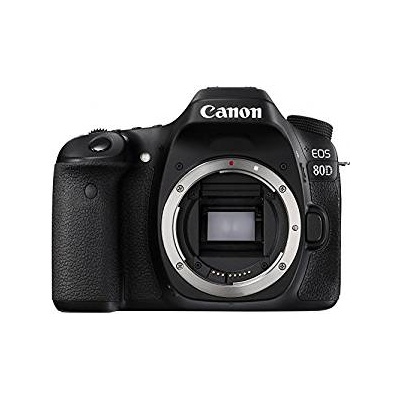

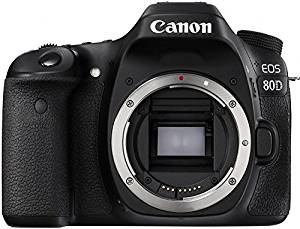

XNiteCanon80D: Canon 80D 24.2 Megapixel Camera with UV-VIS-IR Functionality

canon80d
$1,897.50 each

Canon 80D modified for UV-VIS-IR Functionality.



Image Sensor
Sensor Type: CMOS
Sensor Manufacturer: Canon
Effective Megapixels: 24.2
Sensor Format: APS-C
Sensor size: 337.5mm2 (22.50mm x 15.00mm)
Approximate Pixel Pitch: 3.75 microns
Focal Length Multiplier: 1.6x
Aspect Ratio: 3:2
Color Filter Type: RGBG
Anti Aliasing Filter: Fixed
Self-Cleaning: Yes
Sensor shift image stabilization: No
On-Sensor Phase Detect: Yes
DxO Sensor Score: 79
DxO Color Depth Score (bits): 23.6
DxO Dynamic Range Score (evs): 13.2
DxO Maximum Effective ISO Score (iso): 1,135
Image Capture
Image Resolution: 6000 x 4000 (24.0 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
2976 x 1984 (5.9 MP, 3:2),
1920 x 1280 (2.5 MP, 3:2),
720 x 480 (0.3 MP, 3:2),
6000 x 3368 (20.2 MP, 16:9),
3984 x 2240 (8.9 MP, 16:9),
2976 x 1824 (5.4 MP, Other),
1920 x 1080 (2.1 MP, 16:9),
720 x 408 (0.3 MP, Other),
5328 x 4000 (21.3 MP, 4:3),
3552 x 2664 (9.5 MP, 4:3),
2656 x 1992 (5.3 MP, 4:3),
1696 x 1280 (2.2 MP, 4:3),
640 x 480 (0.3 MP, 4:3),
4000 x 4000 (16.0 MP, 1:1),
2656 x 2656 (7.1 MP, 1:1),
1984 x 1984 (3.9 MP, 1:1),
1280 x 1280 (1.6 MP, 1:1),
480 x 480 (0.2 MP, 1:1)
Image File Format: JPEG (EXIF 2.3), 14-bit .CR2 RAW, mRAW, sRAW, RAW+JPEG
Continuous-mode frames/second: 6.8
Video Capture
Can take movies: Yes
Movie Resolution: 1920x1080 (60p/50p/30p/25p/24p)
1280x720 (60p/50p/30p/25p)
Movie File Format: MOV (Video: H.264 All-I, Audio: Stereo Linear PCM), MP4 (Video: H.264 IPB/IPB Light, Audio: AAC)
Composite Video Out: No
NTSC/PAL Switchable Video: n/a
Video Usable as Viewfinder: n/a
HD Video Out: Yes
HD Video Connection: HDMI
Lens & Optics
Lens Mount: Canon EF/EF-S
Lens: Canon EF-S 18-135mm f/3.5-5.6 IS USM
Focal Length (35mm equivalent): 29 - 216mm
Focal Length (actual): 18 - 135mm
Zoom Ratio: 7.50x
Aperture Range: f/3.5 - f/22 (wide) / f/5.6 - f/36 (tele)
Integrated ND Filter: No
Normal Focus Range: 39 cm to Infinity
15.4 in to Infinity
Macro Focus Range:
Filter Thread: 67.0mm
Thread Type: n/a
Optical Image Stabilization: Yes
Digital Zoom:
Digital Zoom Values:
Auto Focus
Auto Focus: Yes
Auto Focus Type: OVF: AF-dedicated CMOS sensor, 45-points, up to 45 cross-type (f/5.6), 1 dual-cross (f/2.8 and f/5.6), 27 support f/8 (9 cross-type); Live View: Dual-Pixel CMOS AF
Auto Focus Assist Light? Yes
Manual Focus: Yes
Viewfinder
Viewfinder: Optical / LCD
Viewfinder Type: SLR type; eye-level pentaprism, ~100% coverage, ~0.95x magnification, 22mm eyepoint, -3 to +1 diopter
Focus Peaking: No
EVF Resolution: n/a
Viewfinder Magnification (35mm equivalent): 0.59x
Viewfinder Magnification (nominal/claimed): 0.95x
Display
Eye-level Viewfinder: Yes
Rear Display: Yes
Rear Display Size (inches): 3.0
Rear Display Resolution: 1,040,000 dots (346,600 px)
Touchscreen: Yes
Articulating Screen: Yes
Tilt Swivel Screen: Yes
Selfie Screen: Yes
Max Playback Zoom: 10.0x
Top Deck Display: Yes
Exposure
Maximum ISO (native): 16000
Minimum ISO (native): 100
ISO Settings: Auto, 100 - 16000 in 1/3 or 1EV steps, Expandable to 25600
Auto ISO Mode: Yes
White Balance Settings: Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent, Flash, Custom, Kelvin 2,500K - 10,000K
Shutter Speed Range: 1/8000 - 30 sec
Bulb Mode: Yes
Exposure Compensation: +/- 5.0EV in 0.3EV steps
Metering Modes: 7,560-pixel RGB+IR metering sensor: 63-zone Evaluative (linked to all AF points), Center-weighted, Partial (6.0%), Spot (3.8%)
Program Auto Exposure: Yes
Aperture Priority: Yes
Shutter Priority: Yes
Full Manual Exposure: Yes
Creative Exposure Modes: Creative Auto, Scene (Portrait, Landscape, Close-up, Sports, Food, Kids, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control), No Flash, 2 Custom User Settings, Creative Filters (Art Bold, Fish-eye, Water-painting, Grainy Black and White, Soft Focus, Toy Camera, Miniature, HDR Art (Standard/Vivid/Bold/Embossed)
Self Timer: 10 or 2 seconds
Time Lapse (intervalometer): Yes
High Resolution Composite: No
Flash
Built-in Flash: Yes
Flash Modes: E-TTL II, Manual; wireless slave flash supported via built-in flash
Flash Guide Number (ISO 100): 12.0 m / 39.4 ft.
Flash Range Description: Lens aperture dependent; GN= 12m (39.4 ft.) at ISO 100, works out to about 11.2 feet at f/3.5 and 7 feet at f/5.6
Max Flash Sync: 1/250
Flash Exposure Compensation: +/- 3.0 EV in 0.3EV steps
External Flash Connection: Hot Shoe
Built-In Wireless Flash Control: Full TTL exposure
Image Storage
Usable Memory Types: SD / SDHC / SDXC
UHS Support: UHS-I
Other Memory:
Dual Card Slots: No
RAW Capture Support: Yes
Uncompressed Format: 14-bit .CR2 RAW, mRAW, sRAW, RAW+JPEG
Movie File Format: MOV (Video: H.264 All-I, Audio: Stereo Linear PCM), MP4 (Video: H.264 IPB/IPB Light, Audio: AAC)
Included Memory: No memory included
Included Memory Type:
Connectivity
Built-In Wi-Fi: Yes
NFC: Yes
Bluetooth: No
Built-In GPS: No
Microphone Jack: Yes
Headphone Jack: Yes
External Connections: USB 2.0 High Speed,WiFi
PictBridge Compliant: Yes
DPOF Compliant: Yes
Remote Control: Yes
Remote Control Type: Optional wired or wireless
Connections (extended): Mini (Type-C) HDMI, 3.5mm Microphone Jack, 3.5mm Headphone Jack, Wired Remote Jack
Performance Timing
Cycle time for JPEG shooting in single shot mode (seconds per frame, max resolution): 0.37
Cycle time for RAW shooting in single shot mode (seconds per frame):
Buffer size for RAW shooting in single shot mode (frames):
Cycle time for RAW+JPEG shooting in single shot mode (seconds per shot): 0.36
Camera penalizes early shutter press? No
JPEG shooting speed in burst mode (fps, max resolution): 6.8
Buffer size for JPEG shooting in burst mode (frames, max resolution): 53
RAW shooting speed in burst mode (fps): 6.7
Buffer size for RAW shooting in burst mode (frames): 24
RAW+JPEG shooting speed in burst mode (fps): 6.8
Buffer Size for RAW+JPEG shooting in burst mode (frames): 19
Shutter lag (full AF, wide/mid): 0.08 seconds
Shutter lag (full AF, tele):
Shutter lag (full AF, live view - DSLR):
Shutter lag (prefocused, live view - DSLR): 0.060 seconds
Shutter Lag (manual focus): 0.061 seconds
Shutter lag (full AF, with flash): 0.27 seconds
Shutter Lag (prefocused): 0.057 seconds
Shutter Lag (notes):
Startup Time: 0.5 seconds
Play -> Record Time: 0.1 seconds
Flash cycle time, full power: 2.8 seconds
Power
Battery Life, Stills (CIPA Rating Monitor/Live View): 300 shots
Battery Life, Still (CIPA Rating OVF/EVF): 960 shots
Battery Life, Video:
Battery Form Factor: Proprietary
Usable Battery Types: LP-E6N or LP-E6 Lithium-ion rechargeable
Batteries Included: 1 x Proprietary LP-E6N Lithium-ion rechargeable
Battery Charger Included (dedicated charger or AC/USB adapter): Yes
Dedicated Battery Charger Included: Yes
Internal Charging Supported: No
Software
Included Software: Canon Solutions Disc (EOS Utility, ZoomBrowser EX/ImageBrowser, Digital Photo Professional.Picture Style Editor, Movie Edit Task, PhotoStitch, Memory Card utility,)
OS Compatibility: Windows, Mac OS X
