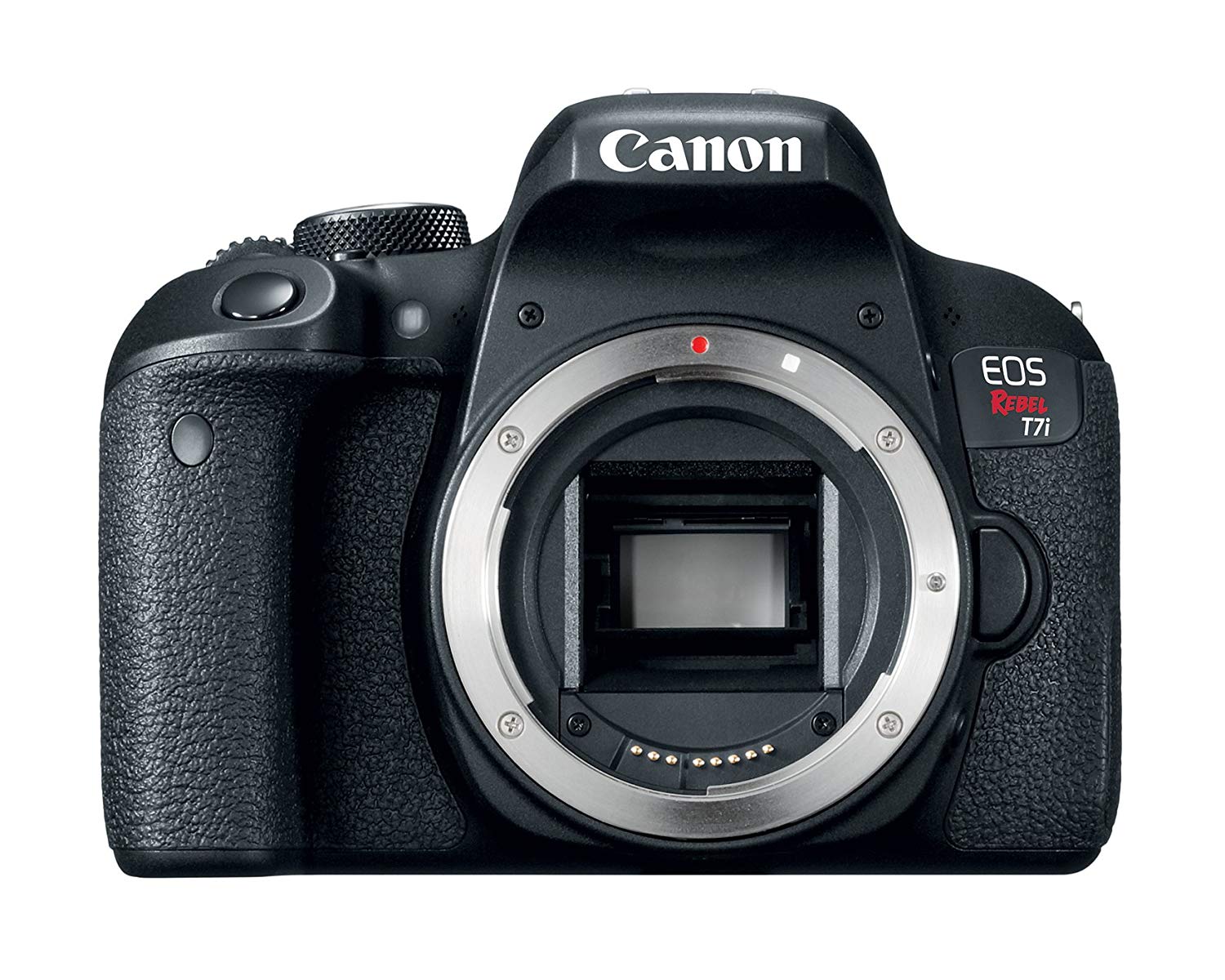

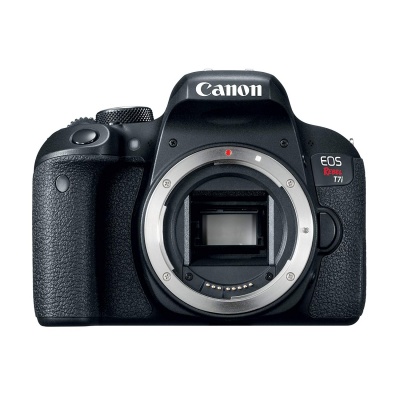

XNiteCanonT7i-MNCG: Canon T7i 800D 24.2 Megapixel Monochrome UV-VIS-IR No Cover Glass

canont7i_1809693424
$2,616.25 each

Camera Modified for Monochrome UV-VIS-IR with No Coverglass

Image Sensor

Sensor Type: CMOS
Sensor Manufacturer: Canon
Effective Megapixels: 24.2
Sensor Format: APS-C
Sensor size: 332.27mm2 (22.30mm x 14.90mm)
Approximate Pixel Pitch: 3.72 microns
Focal Length Multiplier: 1.6x
Aspect Ratio: 3:2
Color Filter Type: RGBG
Anti Aliasing Filter: Fixed
Self-Cleaning: Yes
Sensor shift image stabilization: No
On-Sensor Phase Detect: Yes
DxO Sensor Score: 71
DxO Color Depth Score (bits): 22.7
DxO Dynamic Range Score (evs): 12.0
DxO Maximum Effective ISO Score (iso): 919
Image Capture
Image Resolution: 6000 x 4000 (24.0 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
2976 x 1984 (5.9 MP, 3:2),
1920 x 1280 (2.5 MP, 3:2),
720 x 480 (0.3 MP, 3:2),
6000 x 3368 (20.2 MP, 16:9),
3984 x 2240 (8.9 MP, 16:9),
2976 x 1680 (5.0 MP, Other),
1920 x 1080 (2.1 MP, 16:9),
720 x 408 (0.3 MP, Other),
5328 x 4000 (21.3 MP, 4:3),
3552 x 2664 (9.5 MP, 4:3),
2656 x 1992 (5.3 MP, 4:3),
1696 x 1280 (2.2 MP, 4:3),
640 x 480 (0.3 MP, 4:3),
4000 x 4000 (16.0 MP, 1:1),
2656 x 2656 (7.1 MP, 1:1),
1984 x 1984 (3.9 MP, 1:1),
1280 x 1280 (1.6 MP, 1:1),
480 x 480 (0.2 MP, 1:1)
Image File Format: JPEG, .CR2 RAW (14-bit), RAW+L/F JPEG
Continuous-mode frames/second: 6
Video Capture
Can take movies: Yes
Movie Resolution: 1920x1080 (30p/25p/24p)
1280x720 (60p/50p)
640x480 (30p/25p)
Movie File Format: MPEG-4 AVC/H.264 video with stereo linear PCM audio in MOV container
Composite Video Out: Yes
NTSC/PAL Switchable Video: Yes
Video Usable as Viewfinder:
HD Video Out: Yes
HD Video Connection: HDMI
Lens & Optics
Lens Mount: Canon EF/EF-S
Lens: Canon EF-S 18-55mm f/3.5-5.6 IS STM
Focal Length (35mm equivalent): 29 - 88mm
Focal Length (actual): 18 - 55mm
Zoom Ratio: 3.06x
Aperture Range: f/3.5 - 22 (wide) / f/5.6 - 38 (tele)
Normal Focus Range: 25 cm to Infinity
9.8 in to Infinity
Macro Focus Range:
Filter Thread: 58.0mm
Thread Type: n/a
Optical Image Stabilization: Yes
Digital Zoom:
Digital Zoom Values:
Auto Focus
Auto Focus: Yes
Auto Focus Type: OVF: Phase-detect using 19-point all cross-type AF sensor; Live View uses Hybrid CMOS AF III hybrid phase-detect/contrast-detect AF on image sensor
Auto Focus Assist Light? Yes
Manual Focus: Yes
Viewfinder
Viewfinder: Optical / LCD
Viewfinder Type: SLR type; fixed eye-level pentamirror, ~95% coverage, ~0.82x mag., 19mm eyepoint, -3 to +1 diopter
Focus Peaking: No
EVF Resolution: n/a
Viewfinder Magnification (35mm equivalent): 0.51x
Viewfinder Magnification (nominal/claimed): 0.82x
Display
Eye-level Viewfinder: Yes
Rear Display: Yes
Rear Display Size (inches): 3.0
Rear Display Resolution: 1,040,000 dots (345,600 px)
Touchscreen: Yes
Articulating Screen: Yes
Tilt Swivel Screen: Yes
Selfie Screen: Yes
Max Playback Zoom: 10.0x
Top Deck Display: No
Exposure
Maximum ISO (native): 12800
Minimum ISO (native): 100
ISO Settings: Auto(100-6400), 100-12800 in 1EV steps, expandable to H=25600
Auto ISO Mode: Yes
White Balance Settings: Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent, Flash, Custom
Shutter Speed Range: 30 - 1/4000
Bulb Mode: Yes
Exposure Compensation: +/- 5.0EV in 0.3EV steps
Metering Modes: 7,560 pixel RGB+IR sensor divided into 63 segments; Evaluative (linked to all AF points), Center-weighted, Partial (6%), Spot (3.5%)
Program Auto Exposure: Yes
Aperture Priority: Yes
Shutter Priority: Yes
Full Manual Exposure: Yes
Creative Exposure Modes: Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, SCN (Kids, Food, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control mode)
Self Timer: 10, 2, Remote, 10s Continuous (2-10) seconds
Time Lapse (intervalometer): No
High Resolution Composite: No
Flash
Built-in Flash: Yes
Flash Modes: E-TTL II Auto, Manual; Red-Eye Reduction; Second Curtain Synchro
Flash Guide Number (ISO 100): 12.0 m / 39.4 ft.
Flash Range Description: Lens aperture dependent
Max Flash Sync: 1/200
Flash Exposure Compensation: +/- 2.0 EV in 0.3EV steps
External Flash Connection: Hot Shoe
Built-In Wireless Flash Control: Full TTL exposure
Image Storage
Usable Memory Types: SD / SDHC / SDXC
UHS Support: UHS-I
Other Memory: UHS-I compliant
Dual Card Slots: No
RAW Capture Support: Yes
Uncompressed Format: .CR2 RAW (14-bit), RAW+L/F JPEG
Movie File Format: MPEG-4 AVC/H.264 video with stereo linear PCM audio in MOV container
Included Memory: No memory included
Included Memory Type:
Connectivity
Built-In Wi-Fi: Yes
NFC: Yes
Bluetooth: No
Built-In GPS: No
Microphone Jack: Yes
Headphone Jack: No
External Connections: USB 2.0 High Speed,WiFi
PictBridge Compliant: Yes
DPOF Compliant: Yes
Remote Control: Yes
Remote Control Type: Optional wired, IR wireless or Wi-Fi
Connections (extended): Mini (Type-C) HDMI-CEC, External 3.5mm Stereo Mic Jack
Performance Timing
Cycle time for JPEG shooting in single shot mode (seconds per frame, max resolution): <0.3
Cycle time for RAW shooting in single shot mode (seconds per frame):
Buffer size for RAW shooting in single shot mode (frames):
Cycle time for RAW+JPEG shooting in single shot mode (seconds per shot): <0.3
Camera penalizes early shutter press? No
JPEG shooting speed in burst mode (fps, max resolution): 4.8
Buffer size for JPEG shooting in burst mode (frames, max resolution): Unlimited
RAW shooting speed in burst mode (fps): 4.8
Buffer size for RAW shooting in burst mode (frames): 6
RAW+JPEG shooting speed in burst mode (fps): 4.9
Buffer Size for RAW+JPEG shooting in burst mode (frames): 6
Shutter lag (full AF, wide/mid): 0.09 seconds
Shutter lag (full AF, tele):
Shutter lag (full AF, live view - DSLR):
Shutter lag (prefocused, live view - DSLR): 0.114 seconds
Shutter Lag (manual focus): 0.097 seconds
Shutter lag (full AF, with flash): 0.35 seconds
Shutter Lag (prefocused): 0.073 seconds
Shutter Lag (notes):
Startup Time: 0.9 seconds
Play -> Record Time: 0.1 seconds
Flash cycle time, full power: 3.3 seconds
Power
Battery Life, Stills (CIPA Rating Monitor/Live View): 180 shots
Battery Life, Still (CIPA Rating OVF/EVF): 440 shots
Battery Life, Video:
Battery Form Factor: Proprietary LP-E17
Usable Battery Types: Lithium-ion rechargeble
Batteries Included: 1 x Proprietary LP-E17 Lithium-ion rechargeble
Battery Charger Included (dedicated charger or AC/USB adapter): Yes
Dedicated Battery Charger Included: Yes
Internal Charging Supported: No
Software
Included Software: EOS Digital Solutions Disc
OS Compatibility:
Miscellaneous
Notes & Features: New 24.2MP APS-C CMOS image sensor, DIGIC 6 processor, 19-point all cross-type AF for OVF, Hybrid CMOS III AF for Live View, built-in Wi-Fi with active NFC.
