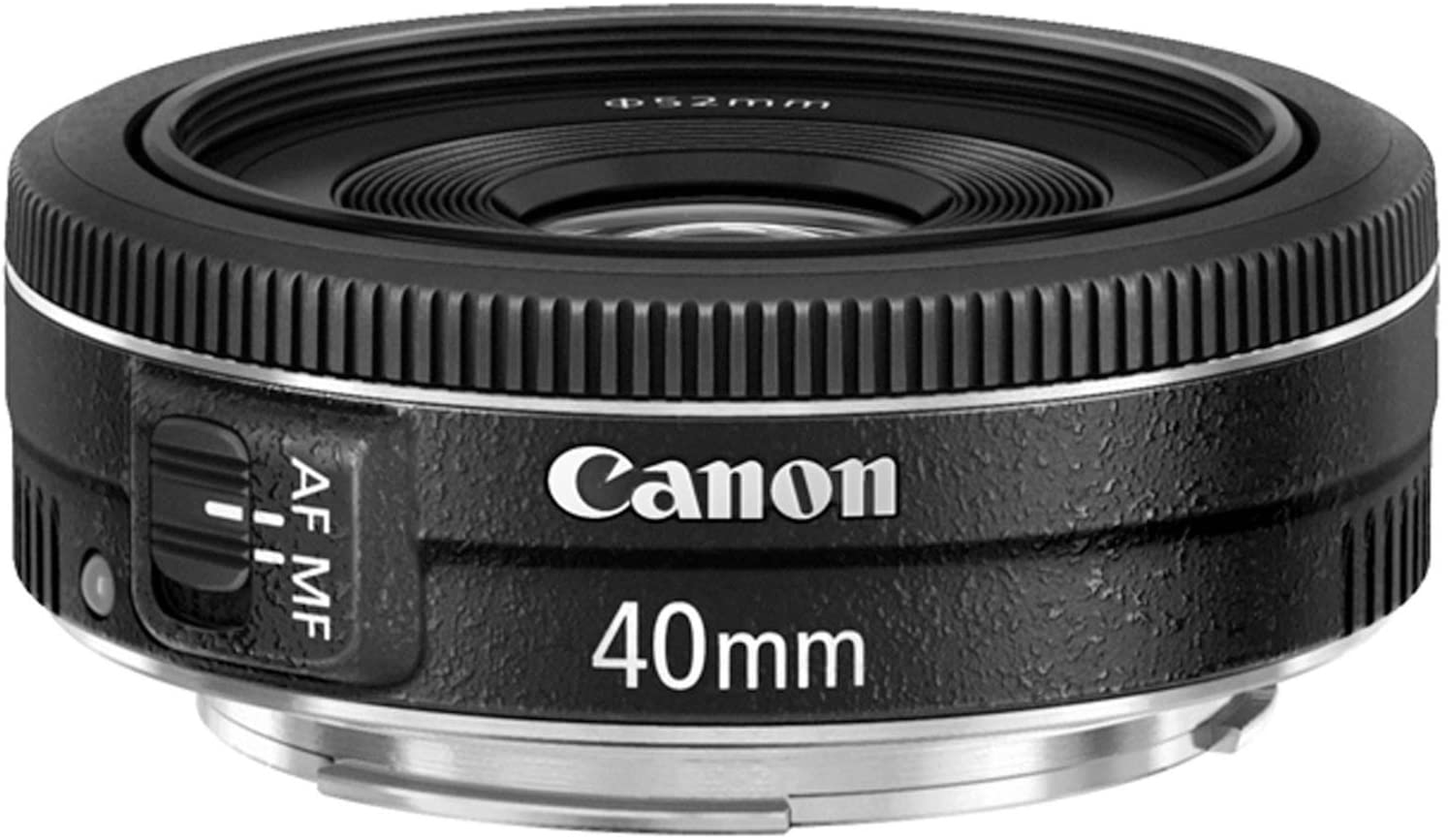

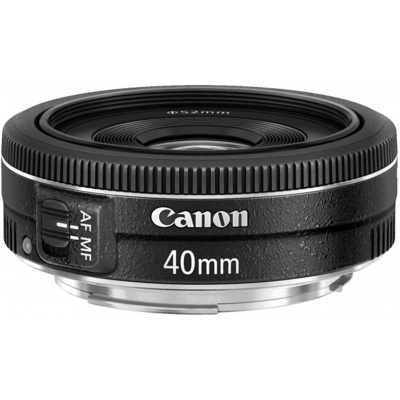

Canon40mmF/2.8: Canon Pancake 40mm F/2.8 Lens

lenscanon40mmortho
$275.00 each

This Canon lens works well for UV photography to about 340nm.  With its simple construction, it passes UV much better than a complex prime or zoom lens.

The lens uses 52mm filters.  If needed, you can use a 52mm to 58mm step-up ring to mount 58mm filters to the lens.  We have the greatest selection of filter options in 58mm diameter.





 Maximum format size  35mm full frame
 Focal length  40mm
 35mm equivalent focal length (APS-C)  64mm
 Diagonal Angle of view  • 56.8º (full frame)
 • 37.1º (APS-C)
 Maximum aperture  F2.8
 Minimum aperture  F22
 Lens Construction  • 6 elements / 4 groups
 • 1 aspherical element
 Number of diaphragm blades  7, rounded
 Minimum focus  0.3m
 Maximum magnification  0.18x
 AF motor type  • Linear Stepper Motor
 • Full-time manual focus
 • 'Focus-by-wire' manual focus
 Focus method  Unit
 Image stabilization  No
 Filter thread  • 52mm
 • Does not rotate on focus
 Supplied accessories*  Front and rear caps
 Optional accessories  ES-52 screw-in metal hood
 Weight  130 g (4.6 oz)
 Dimensions  68 mm diameter x 22 mm length (2.7 x 0.9 in)
 Lens Mount  Canon EF
