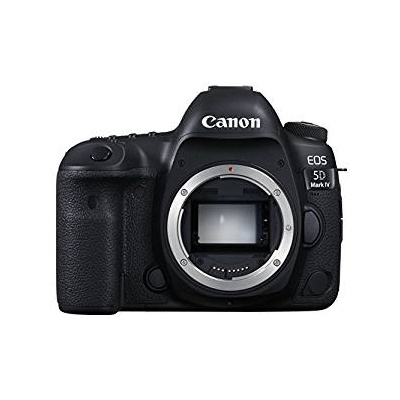

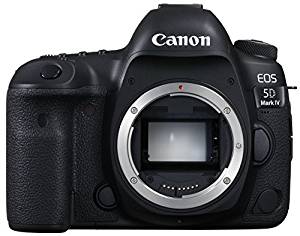

XNiteCanon5DMK4B-G-NIR: Canon 5D MK IV 30.4 Blue-Green-NIR 680nm to 800nm

canon5dmkiv_1555799325
$6,670.00 each

Camera modified for Blue-Green-NIR 680-800nm functionality





Image Sensor
Sensor Type: CMOS
Sensor Manufacturer: Canon
Effective Megapixels: 30.4
Sensor Format: 35mm
Sensor size: 864mm2 (36.00mm x 24.00mm)
Approximate Pixel Pitch: 5.36 microns
Focal Length Multiplier: 1.0x
Aspect Ratio: 3:2
Color Filter Type: RGBG
Anti Aliasing Filter: Fixed
Self-Cleaning: Yes
Sensor shift image stabilization: No
On-Sensor Phase Detect: Yes
DxO Sensor Score: 91
DxO Color Depth Score (bits): 24.8
DxO Dynamic Range Score (evs): 13.6
DxO Maximum Effective ISO Score (iso): 2,995
Image Capture
Image Resolution: 6720 x 4480 (30.1 MP, 3:2),
5040 x 3360 (16.9 MP, 3:2),
4464 x 2976 (13.3 MP, 3:2),
3360 x 2240 (7.5 MP, 3:2),
1920 x 1280 (2.5 MP, 3:2),
720 x 480 (0.3 MP, 3:2),
5952 x 4480 (26.7 MP, 4:3),
4480 x 3360 (15.1 MP, 4:3),
3968 x 2976 (11.8 MP, 4:3),
2976 x 2240 (6.7 MP, 4:3),
1696 x 1280 (2.2 MP, 4:3),
640 x 480 (0.3 MP, 4:3),
6720 x 3776 (25.4 MP, 16:9),
5040 x 2836 (14.3 MP, 16:9),
4464 x 2512 (11.2 MP, 16:9),
3360 x 1888 (6.3 MP, 16:9),
1920 x 1080 (2.1 MP, 16:9),
720 x 408 (0.3 MP, Other),
4480 x 4480 (20.1 MP, 1:1),
3360 x 3360 (11.3 MP, 1:1),
2976 x 2976 (8.9 MP, 1:1),
2240 x 2240 (5.0 MP, 1:1),
1280 x 1280 (1.6 MP, 1:1),
480 x 480 (0.2 MP, 1:1)
Image File Format: JPEG (EXIF v2.3), RAW, M-RAW (16.9MP), S-RAW (7.5MP), Dual-Pixel RAW; 14-bit CR2
Continuous-mode frames/second: 7.0
Video Capture
Can take movies: Yes
Movie Resolution: 4096x2160 (30p/25p/24p/23.98p)
1920x1080 (60p/50p/30p/25p/24p/23.98p)
1280x720 (120p/100p)
Movie File Format: MOV (4K video: Motion JPEG; Full HD and HD Movie: MPEG4 AVC/H.264; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264; Audio: AAC)
Composite Video Out: No
NTSC/PAL Switchable Video: n/a
Video Usable as Viewfinder: n/a
HD Video Out: Yes
HD Video Connection: HDMI
Lens & Optics
Lens Mount: Canon EF
Lens: n/a
Focal Length (35mm equivalent):
Focal Length (actual):
Zoom Ratio:
Aperture Range:
Integrated ND Filter: No
Normal Focus Range:
Macro Focus Range:
Filter Thread: n/a
Thread Type: n/a
Optical Image Stabilization: No
Digital Zoom:
Digital Zoom Values:
Auto Focus
Auto Focus: Yes
Auto Focus Type: Phase Detect: OVF: 61-point (up to 41 cross-type points); Up to 5 dual cross-type AF points at f/2.8 and f/5.6, up to 20 cross-type AF points at f/4 and f/5.6, up to 21 cross-type AF points at f/5.6 and f/8, up to 20 horizontal-line AF points at f/5.6, up to 61 horizontal-line AF points at f/8; Dual Pixel CMOS AF on sensor
Auto Focus Assist Light? No
Manual Focus: Yes
Viewfinder
Viewfinder: Optical / LCD
Viewfinder Type: SLR type; fixed eye-level pentaprism, 100% coverage, 0.71x magnification, 21mm eyepoint, -3 to +1 diopter, fixed focusing screen, on demand grid
Focus Peaking: No
EVF Resolution: n/a
Viewfinder Magnification (35mm equivalent): 0.71x
Viewfinder Magnification (nominal/claimed): 0.71x
Display
Eye-level Viewfinder: Yes
Rear Display: Yes
Rear Display Size (inches): 3.2
Rear Display Resolution: 1,620,000 dots (540,000 px)
Touchscreen: Yes
Articulating Screen: No
Tilt Swivel Screen: No
Selfie Screen: No
Max Playback Zoom: 10.0x
Top Deck Display: Yes
Exposure
Maximum ISO (native): 32000
Minimum ISO (native): 100
ISO Settings: Auto, 100-32000 in 1/3 or 1 EV steps, expandable to 50 (L), 51200 (H1) and 102400 (H2)
Auto ISO Mode: Yes
White Balance Settings: Auto (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, Custom, Color Temperature
Shutter Speed Range: 1/8000 - 30 sec
Bulb Mode: Yes
Exposure Compensation: +/- 5.0EV in 0.3EV steps
Metering Modes: 150K-pixel RGB+IR metering sensor, 252-zone Evaluative, Center-weighted, Partial (center 6.1% of frame), Spot (center 1.3% of frame)
Program Auto Exposure: Yes
Aperture Priority: Yes
Shutter Priority: Yes
Full Manual Exposure: Yes
Creative Exposure Modes: Custom shooting mode C1, C2, C3; Multiple-exposure; HDR
Self Timer: 2, 10 seconds
Time Lapse (intervalometer): Yes
High Resolution Composite: No
Flash
Built-in Flash: No
Flash Modes: n/a
Flash Guide Number (ISO 100): n/a
Flash Range Description: n/a
Max Flash Sync: 1/200
Flash Exposure Compensation: +/- 3.0 EV in 0.3EV steps
External Flash Connection: Hot Shoe, PC Sync
Built-In Wireless Flash Control: No
Image Storage
Usable Memory Types: CF1 / SD / SDHC / SDXC
UHS Support: UHS-I
Other Memory: SD: UHS-I, CF: UDMA7
Dual Card Slots: Yes
RAW Capture Support: Yes
Uncompressed Format: RAW, M-RAW (16.9MP), S-RAW (7.5MP), Dual-Pixel RAW; 14-bit CR2
Movie File Format: MOV (4K video: Motion JPEG; Full HD and HD Movie: MPEG4 AVC/H.264; Audio: Linear PCM), MP4 (Movie: MPEG4 AVC/H.264; Audio: AAC)
Included Memory: No memory included
Included Memory Type:
Connectivity
Built-In Wi-Fi: Yes
NFC: Yes
Bluetooth: No
Built-In GPS: Yes
Microphone Jack: Yes
Headphone Jack: Yes
External Connections: USB 3.0 Super Speed,WiFi
PictBridge Compliant: Yes
DPOF Compliant: Yes
Remote Control: Yes
Remote Control Type: Optional Wired or Wireless
Connections (extended): Mini HDMI (Type C), Remote Jack, Stereo Mic Jack, Stereo Monitor Jack, PC-Sync Terminal
Performance Timing
Cycle time for JPEG shooting in single shot mode (seconds per frame, max resolution): 0.37
Cycle time for RAW shooting in single shot mode (seconds per frame):
Buffer size for RAW shooting in single shot mode (frames):
Cycle time for RAW+JPEG shooting in single shot mode (seconds per shot): 0.37
Camera penalizes early shutter press? No
JPEG shooting speed in burst mode (fps, max resolution): 7.0
Buffer size for JPEG shooting in burst mode (frames, max resolution): Unlimited
RAW shooting speed in burst mode (fps): 7.0
Buffer size for RAW shooting in burst mode (frames): 19
RAW+JPEG shooting speed in burst mode (fps): 7.0
Buffer Size for RAW+JPEG shooting in burst mode (frames): 12
Shutter lag (full AF, wide/mid): 0.17 seconds
Shutter lag (full AF, tele):
Shutter lag (full AF, live view - DSLR):
Shutter lag (prefocused, live view - DSLR): 0.057 seconds
Shutter Lag (manual focus): 0.077 seconds
Shutter lag (full AF, with flash):
Shutter Lag (prefocused): 0.057 seconds
Shutter Lag (notes):
Startup Time: 0.5 seconds
Play -> Record Time: 0.2 seconds
Flash cycle time, full power:
Power
Battery Life, Stills (CIPA Rating Monitor/Live View): 300 shots
Battery Life, Still (CIPA Rating OVF/EVF): 900 shots
Battery Life, Video:
Battery Form Factor: Proprietary LP-E6N
Usable Battery Types: Lithium-ion Rechargeable or BG-E20 battery grip
Batteries Included: 1 x Proprietary LP-E6N Lithium-ion rechargeable
Battery Charger Included (dedicated charger or AC/USB adapter): Yes
Dedicated Battery Charger Included: Yes
Internal Charging Supported: No
