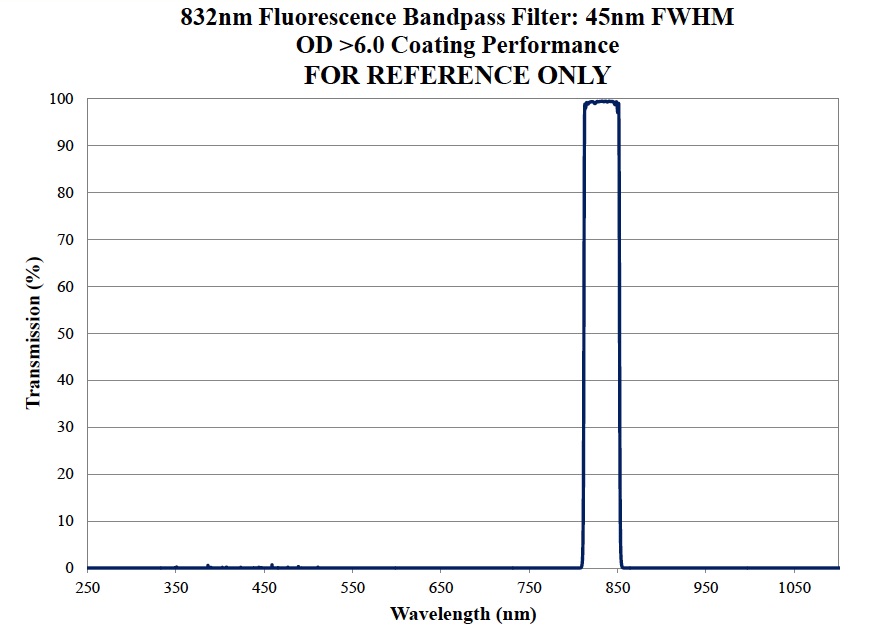

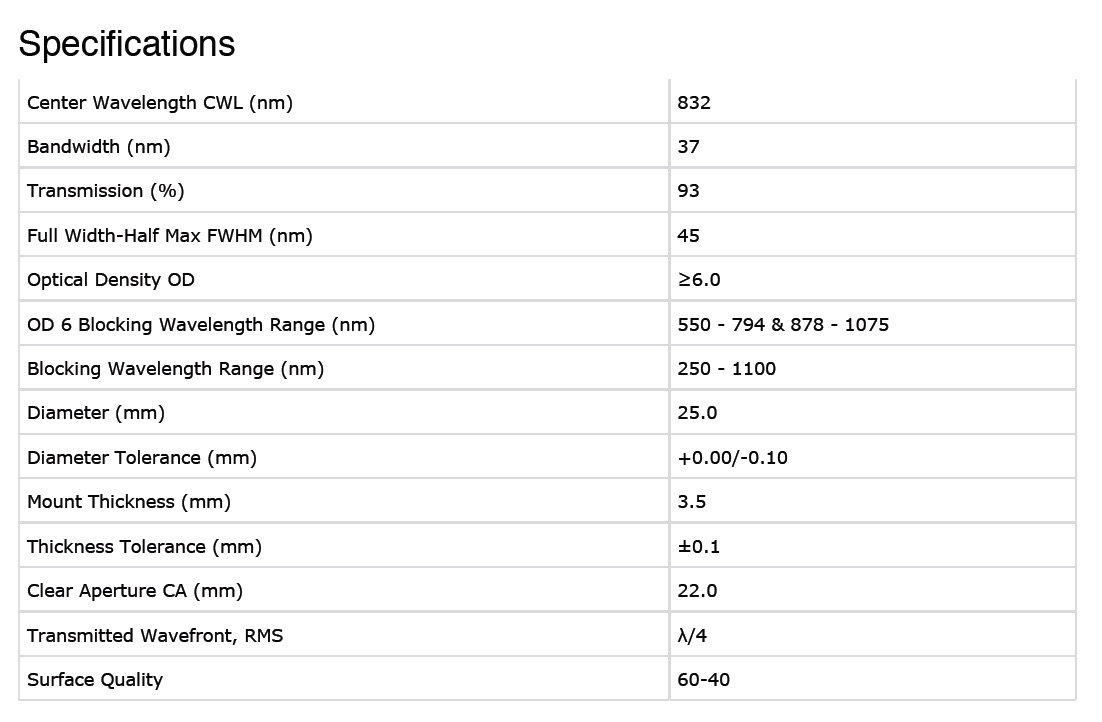

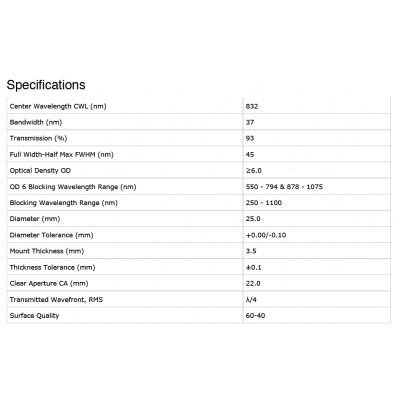

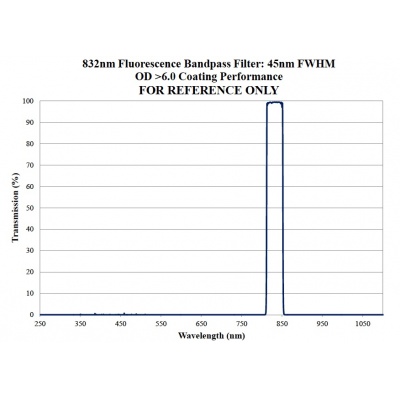

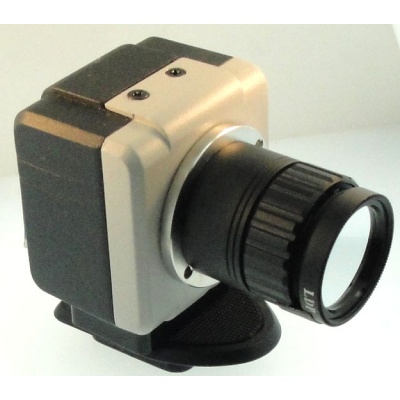

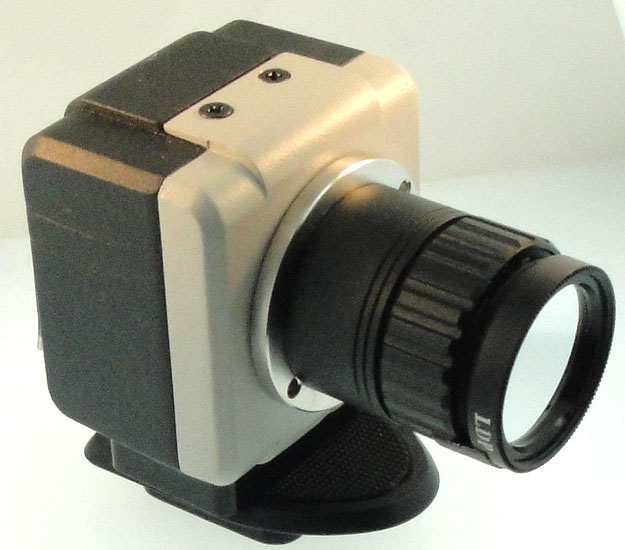

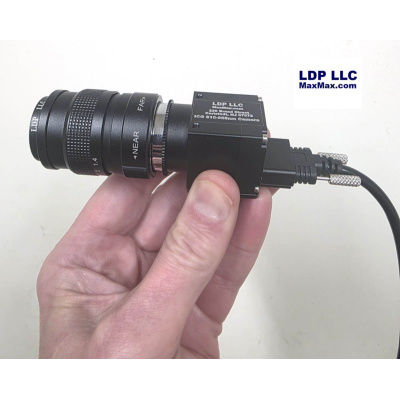

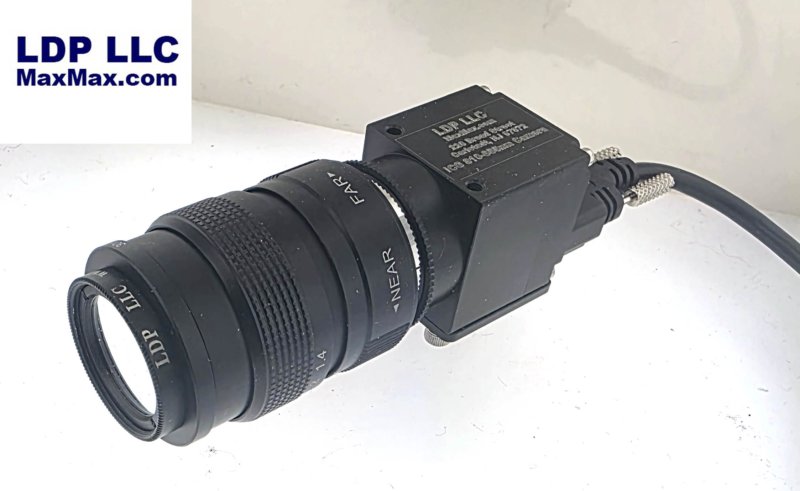

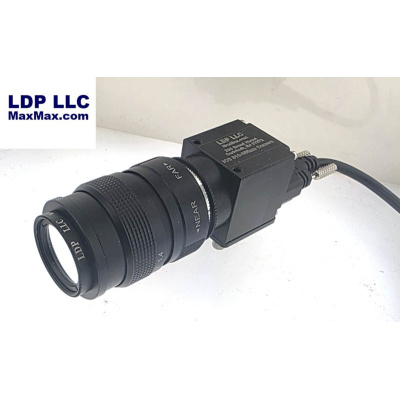

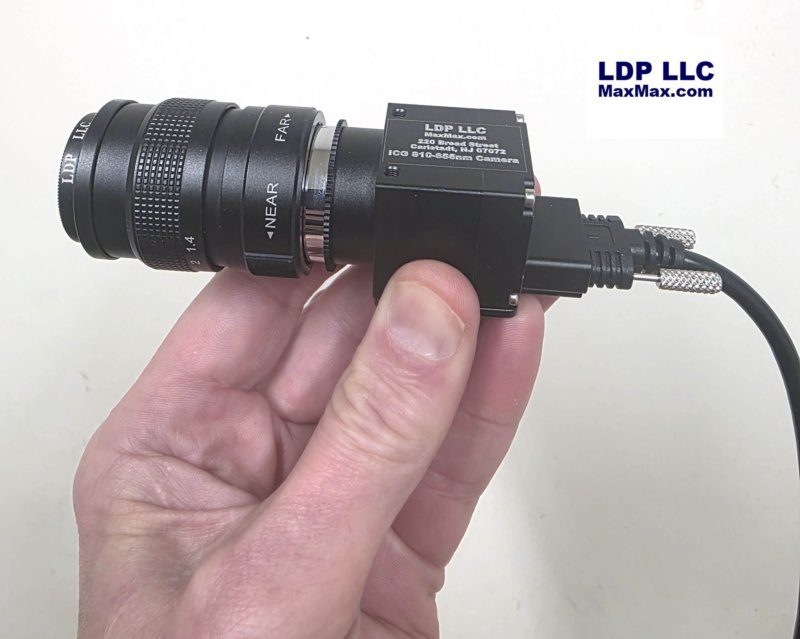

Camera modified for infrared, 12mm lens and ICG Emission filter 832nm +/- 37nm
Cypate dye compatible.
IR1 Ink Compatible.
You can see more information about this ink by clicking here.
This camera includes Windows drivers and software for viewing and capturing pictures.
| |
|
| Pixels |
5.0 MP Color, Monochrome, UV-Only, Remote Sensing |
| |
|
| Sensor Size |
5.7mm(H)x4.28mm(V) 1/2.5" |
| Pixel Size |
2.2μm x 2.2μm |
Resolution/
Frame Rate |
2592 x 1944（full resolution）：6FPS |
| 2048 x 1536（ROI）：9FPS |
| 1920 x 1080（ROI）：13.4FPS |
| 1280 x 960（SUM）：15FPS |
| 1280 x 960（BIN）：15FPS |
| 640 x 480（SUM）：23.7FPS |
| 640 x 480（BIN）：23.7FPS |
| Any Area（ROI） |
Spectral
Response |
380nm ～ 650nm (with infrared filter) / 300nm - 1100nm no ICF |
Exposure
Time |
86μs ～ 3000ms |
| Sensitivity |
1.4V/Lux-sec |
| Shutter |
Electronic Rolling Shutter |
| Image Data Format |
8bit RAW format |
| Operating Mode |
Continuous output |
| Scanning Mode |
Progressive Scan |
Exposure
Control |
Manual / Auto / Area |
| White Balance |
Manual / One-Time / Auto / Area |
| Image Processing |
GAMMA / Contrast / Black Level / Noise Reduction / 3D Noise Reduction / Sharpness/ saturation |
| Picture Format |
JPEG / BMP / PNG / RAW |
| Product ID |
User Defined |
| Software Interface |
DirectShow / TWAIN |
| Operating System |
Windows XP(32 bit) / Windows7(32 bit/64 bit) / Windows8(32 bit/64 bit) |
| Data Interface |
USB2.0 (B Type interface) |
| Lens Mount |
C/CS Mount |
| Dimension |
45mm x 48mm x 36.4mm（Exclude lens mount） |
| PCB Size |
39mm x 39mm （2 pcs board） |
| Weight |
Approx. 112g （with case and fixed blocks） |
| Rotated Voltage |
USB5V power supply（No external power supply circuit） |
| Rated power |
＜ 1.5W |
| Temperature |
operation ：0～50℃ / storage：-20℃～60℃ |
| Humidity |
Working ：10%～90%RH（No condensation） / Storage：10%～60%RH |
| LED Pilot Light |
Lighting once plug/ flashing when working |
