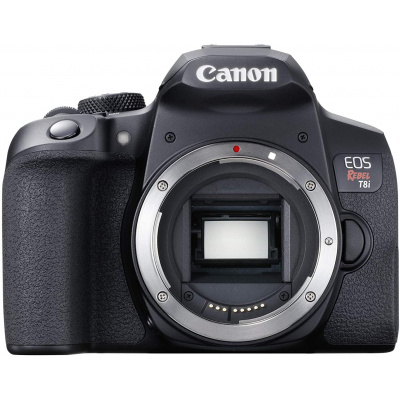

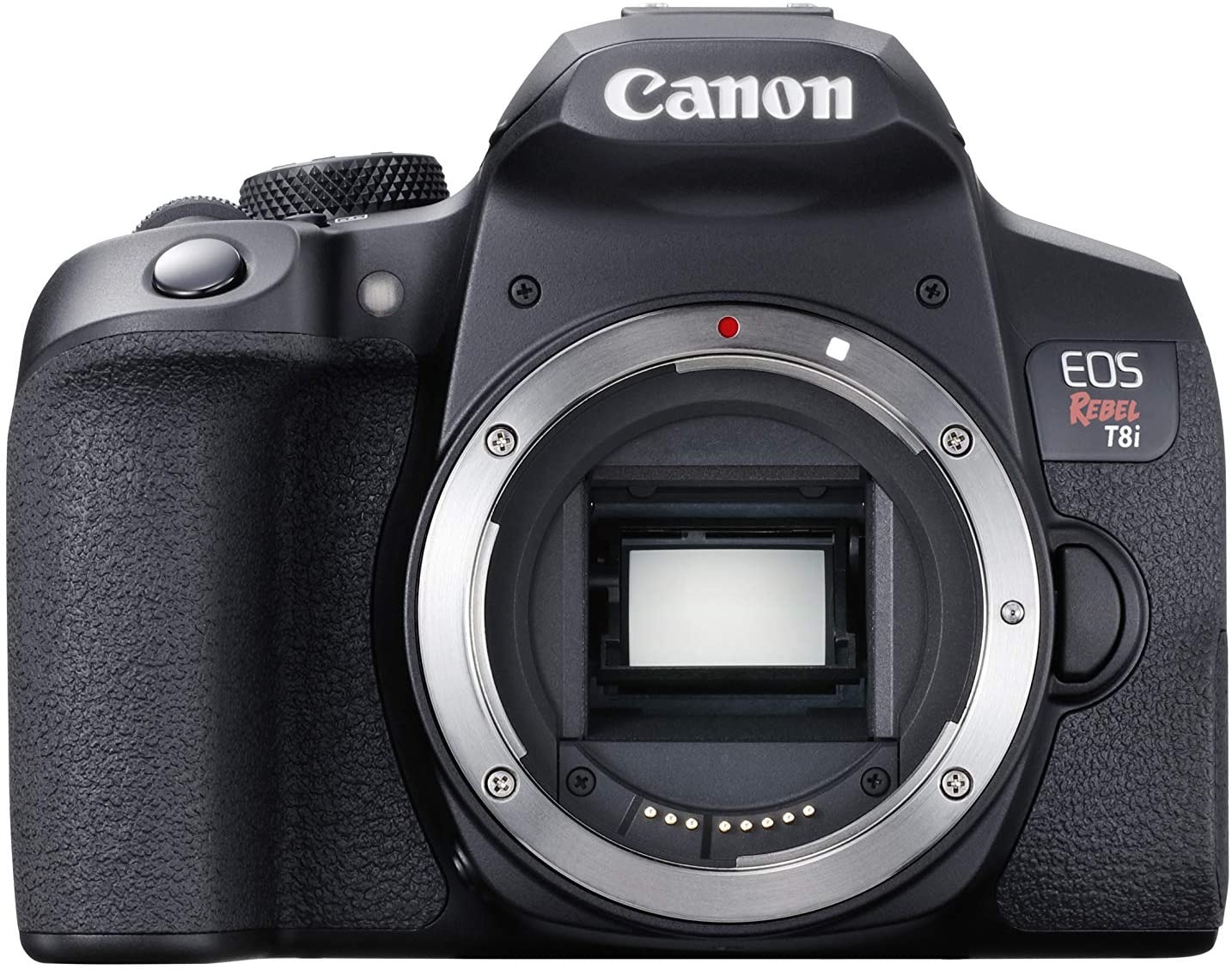

XNiteCanonT8i-MUV: Canon T8i 850D 25.8 Megapixel Monochrome UV-Only

canont8ifront_1031816833
$3,802.19 each

Note: For use in Sunlight, Hot Filament, Xenon Flash Tube or any light source that emits IR, you should use our XNiteBP1 filter on your lens for additional IR blocking.  Because the camera sensor is very IR sensitive and not very UV sensitive, without the XNiteBP1 filter, you will end up with a lot of IR in the image.

Camera modified for UV-Only Monochrome Functionality (Monochrome modification allows camera to see 6X more UV light)





Image Sensor
Sensor Type: CMOS
Sensor Manufacturer: Canon
Effective Megapixels: 24.1
Sensor Format: APS-C
Sensor size: 332.27mm2 (22.30mm x 14.90mm)
Approximate Pixel Pitch: 3.72 microns
Focal Length Multiplier: 1.6x
Aspect Ratio: 3:2
Color Filter Type: RGBG
Anti Aliasing Filter: Fixed
Self-Cleaning: Yes
Sensor shift image stabilization: No
On-Sensor Phase Detect: Yes
DxO Sensor Score:
DxO Color Depth Score (bits):
DxO Dynamic Range Score (evs):
DxO Maximum Effective ISO Score (iso):
Image Capture
Image Resolution: 6000 x 4000 (24.0 MP, 3:2),
3984 x 2656 (10.6 MP, 3:2),
2976 x 1984 (5.9 MP, 3:2),
2400 x 1600 (3.8 MP, 3:2),
6000 x 3368 (20.2 MP, 16:9),
3984 x 2240 (8.9 MP, 16:9),
2976 x 1680 (5.0 MP, Other),
2400 x 1344 (3.2 MP, Other),
5328 x 4000 (21.3 MP, 4:3),
3552 x 2664 (9.5 MP, 4:3),
2656 x 1992 (5.3 MP, 4:3),
2112 x 1600 (3.4 MP, Other),
4000 x 4000 (16.0 MP, 1:1),
2656 x 2656 (7.1 MP, 1:1),
1984 x 1984 (3.9 MP, 1:1),
1600 x 1600 (2.6 MP, 1:1)
Image File Format: C-RAW, JPEG, .CR3 RAW (14-bit)
Continuous-mode frames/second: n/a
Video Capture
Can take movies: Yes
Movie Resolution: 3840x2160 (24p)
1920x1080 (60p/​50p/​30p/​25p/​24p)
1280x720 (60p/​50p/​30p/​25p)
Movie File Format: MPEG-4 AVC/H.264 video with AAC stereo audio in MP4 container
Composite Video Out: Yes
NTSC/PAL Switchable Video: Yes
Video Usable as Viewfinder:
HD Video Out: Yes
HD Video Connection: HDMI
Lens & Optics
Lens Mount: Canon EF/EF-S
Lens: Canon EF-S 18-55mm f/4-5.6 IS STM
Focal Length (35mm equivalent): 29 - 88mm
Focal Length (actual): 18 - 55mm
Zoom Ratio: 3.06x
Aperture Range: f/4 - 22 (wide) / f/5.6 - 38 (tele)
Integrated ND Filter: No
Normal Focus Range: 25 cm to Infinity
9.8 in to Infinity
Macro Focus Range:
Filter Thread: 58.0mm
Thread Type: n/a
Optical Image Stabilization: Yes
Digital Zoom:
Digital Zoom Values:
Auto Focus
Auto Focus: Yes
Auto Focus Type: OVF: AF-dedicated CMOS sensor, 45-points, up to 45 cross-type (f/5.6), 1 dual-cross (f/2.8 and f/5.6), 27 support f/8 (9 cross-type); Live View: Dual-Pixel CMOS AF
Auto Focus Assist Light? Yes
Manual Focus: Yes
Viewfinder
Viewfinder: Optical / LCD
Viewfinder Type: SLR type; fixed eye-level pentamirror, ~95% coverage, ~0.82x mag., 19mm eyepoint, -3 to +1 diopter
Focus Peaking: Yes
EVF Resolution: n/a
Viewfinder Magnification (35mm equivalent):
Viewfinder Magnification (nominal/claimed):
Display
Eye-level Viewfinder: Yes
Rear Display: Yes
Rear Display Size (inches): 3.0
Rear Display Resolution: 1,040,000 dots (345,600 px)
Touchscreen: Yes
Articulating Screen: Yes
Tilt Swivel Screen: Yes
Selfie Screen: Yes
Max Playback Zoom: 10.0x
Top Deck Display: No
Exposure
Maximum ISO (native): 25600
Minimum ISO (native): 100
ISO Settings: Auto, 100 - 25600 in 1/3EV steps, Expandable to 51200
Auto ISO Mode: Yes
White Balance Settings: Auto, Daylight, Shade, Cloudy, Tungsten, White Fluorescent, Flash, Custom WB, Color Temperature K (Manually adjustable between 2000 - 10000K)
Shutter Speed Range: 1/4000 - 30 sec
Bulb Mode: Yes
Exposure Compensation: +/- 5.0EV in 0.3EV steps
Metering Modes: 220,000-pixel RGB+IR metering sensor; 216-zone (18 x 12) metering optical viewfinder; Evaluative (linked to all AF points), Center-weighted, Partial (center, approx. 6.5% of viewfinder), Spot (center, approx. 2.0% of viewfinder)
Program Auto Exposure: Yes
Aperture Priority: Yes
Shutter Priority: Yes
Full Manual Exposure: Yes
Creative Exposure Modes: Scene Intelligent Auto, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports, Special Scene (Group Photo, Kids, Food, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control), Creative Filters (Grainy B/W, Soft Focus, Fish-eye, Water Painting, Toy Camera, Miniature, HDR Art (Standard/Vivid/Bold/Embossed)
Self Timer: 10, 2, Remote, 10s Continuous (2-10) seconds
Time Lapse (intervalometer): Yes
High Resolution Composite: No
Flash
Built-in Flash: Yes
Flash Modes: E-TTL II Auto, Manual, Red-Eye Reduction
Flash Guide Number (ISO 100): 12.0 m / 39.4 ft.
Flash Range Description: Guide Number is 12m/39.4 ft at ISO 100; Range is lens aperture dependent
Max Flash Sync: 1/200
Flash Exposure Compensation: +/- 2.0 EV in 0.3EV steps
External Flash Connection: Hot Shoe
Built-In Wireless Flash Control: Full TTL exposure
Image Storage
Usable Memory Types: SD / SDHC / SDXC
UHS Support: UHS-I
Other Memory:
Dual Card Slots: No
RAW Capture Support: Yes
Uncompressed Format: .CR3 RAW (14-bit)
Movie File Format: MPEG-4 AVC/H.264 video with AAC stereo audio in MP4 container
Included Memory: No memory included
Included Memory Type:
Connectivity
Built-In Wi-Fi: Yes
NFC: No
Bluetooth: Yes
Built-In GPS: No
Microphone Jack: Yes
Headphone Jack: No
External Connections: USB 2.0 High Speed,Bluetooth,WiFi
PictBridge Compliant: Yes
DPOF Compliant: Yes
Remote Control: Yes
Remote Control Type: Optional wired, IR wireless, Bluetooth or Wi-Fi
Connections (extended): Mini (Type-C) HDMI, USB Micro-B (USB 2.0), External 3.5mm Stereo Mic Jack
Performance Timing
Cycle time for JPEG shooting in single shot mode (seconds per frame, max resolution):
Cycle time for RAW shooting in single shot mode (seconds per frame):
Buffer size for RAW shooting in single shot mode (frames):  7.5
Cycle time for RAW+JPEG shooting in single shot mode (seconds per shot):
Camera penalizes early shutter press?
JPEG shooting speed in burst mode (fps, max resolution):
Buffer size for JPEG shooting in burst mode (frames, max resolution):
RAW shooting speed in burst mode (fps):
Buffer size for RAW shooting in burst mode (frames):
RAW+JPEG shooting speed in burst mode (fps):
Buffer Size for RAW+JPEG shooting in burst mode (frames):
Shutter lag (full AF, wide/mid):
Shutter lag (full AF, tele):
Shutter lag (full AF, live view - DSLR):
Shutter lag (prefocused, live view - DSLR):
Shutter Lag (manual focus):
Shutter lag (full AF, with flash):
Shutter Lag (prefocused):
Shutter Lag (notes):
Startup Time:
Play -> Record Time:
Flash cycle time, full power:
Power
Battery Life, Stills (CIPA Rating Monitor/Live View):
Battery Life, Still (CIPA Rating OVF/EVF):
Battery Life, Video:
Battery Form Factor: Proprietary LP-E17
Usable Battery Types: Lithium-ion rechargeble
Batteries Included: 1 x Proprietary LP-E17 Lithium-ion rechargeble
Battery Charger Included (dedicated charger or AC/USB adapter): Yes
Dedicated Battery Charger Included: Yes
Internal Charging Supported: No
